BDI Digidapter V2 For DJI HD FPV Goggles

Overview:
The BDI (British Drone Industries) Digidapter V2 is a plug & play adapter to enable the DJI Digital FPV Goggles to have an analogue FPV receiving module installed. The V2 features a tactile on/off button and new cabling and 6S compatibility.

Compatible with existing modules
The Digidapter is compatible with existing analog modules. Featuring a standard 9 pin header for use with the TBS Fusion, Foxxer Wildfire, Rapid Fire, True D-X, Eachine Pro58, and more..

Plug & Play No Solder Solution
Installation takes less than a minute, and mounts quickly and easily to the front of your DJI Digital FPV Goggles. Including Optional solder points for a cable free solution.

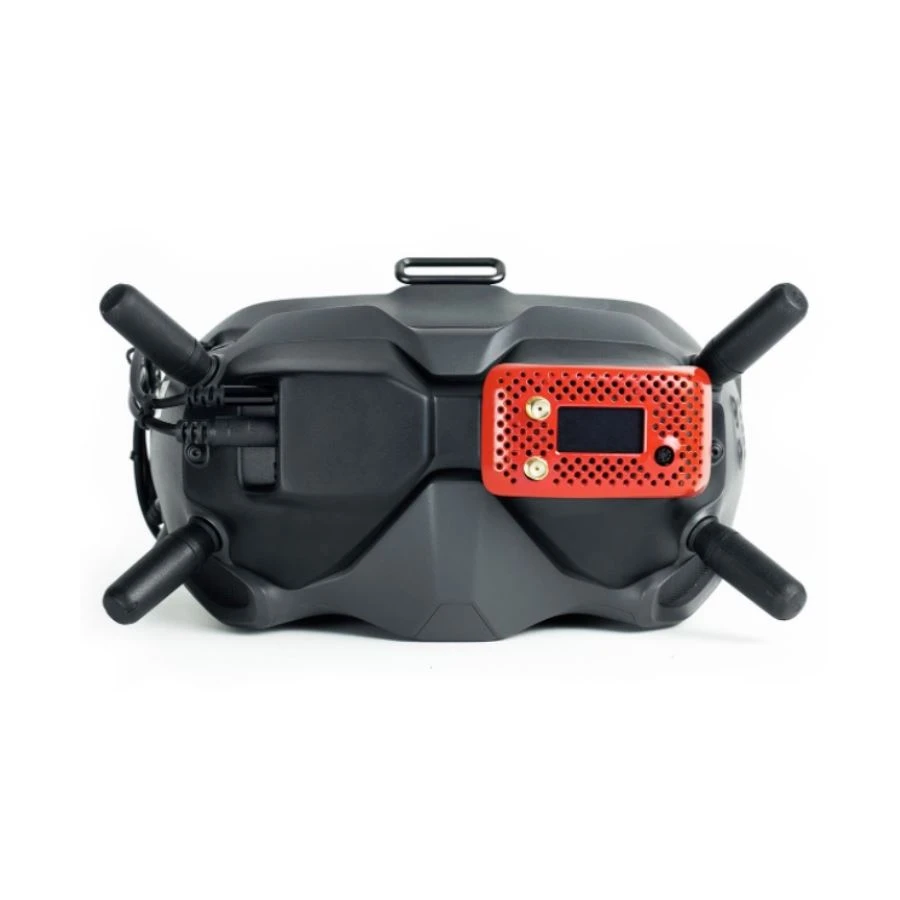

** Images for illustration only, they show the product mounted **

Specifications:

– Dimensions: 158x74x40mm 6.25x3x1.6 inches
– Weight: 34g
– Packaged Weight: 110g
– Ports: 5.5mm x 2.1mm DC In 7.4v-25.2v (2s-6s)
4 pole 3.5mm Video/Audio Out
9 pin RF Module Receiver Port
– Button: Tactile Push Button Analog Module On/Off
– Cables: 5.5mm x 2.1mm Male to Dual 5.5mm x 2.1mm Female DC Jack Splitter
4 Pole Gold Plated 3.5mm Male to 3.5mm Male Video Cable
Dual 4 Pole Gold Plated 3.5mm Male to 3 Pole 3.5mm Female Video/Audio Splitter Cable
– Maximum Input Voltage: 26.1 Volts DC
– Minimum Input Voltage: 7 Volts DC
– Nominal Output Voltage: 5 Volts DC
– Maximum Module Supply Current: 1.0 Amps
– Rated Continuous Power: 5.0 Watts

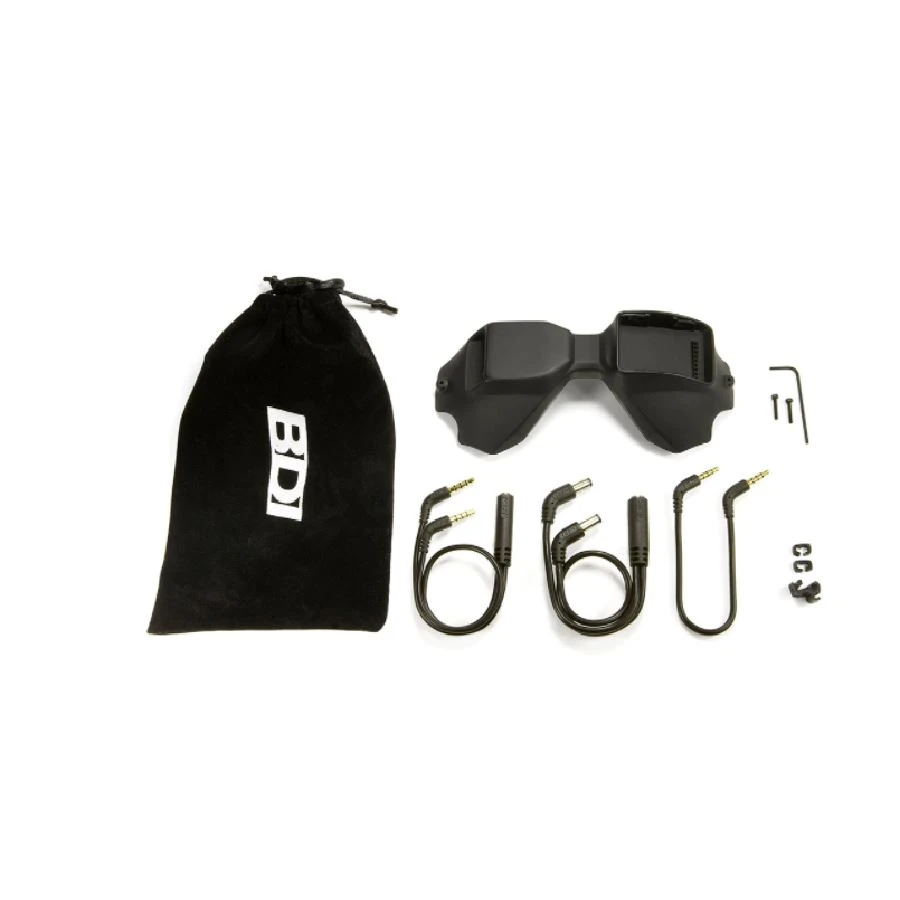

Includes:
– 1 x Digidapter V2 Faceplate
– 1 x Analog Video/Audio Splitter cable
– 1 x Dual DC/DC Male to Single DC Female Split Cable
– 1 x Allen Key
– 2 x 12mm Cap Head Bolts
– 2 x Cable Management Clip
– 1x Screwless Strain Relief Clip
– 1x Faceplate Storage Bag
