Overview:

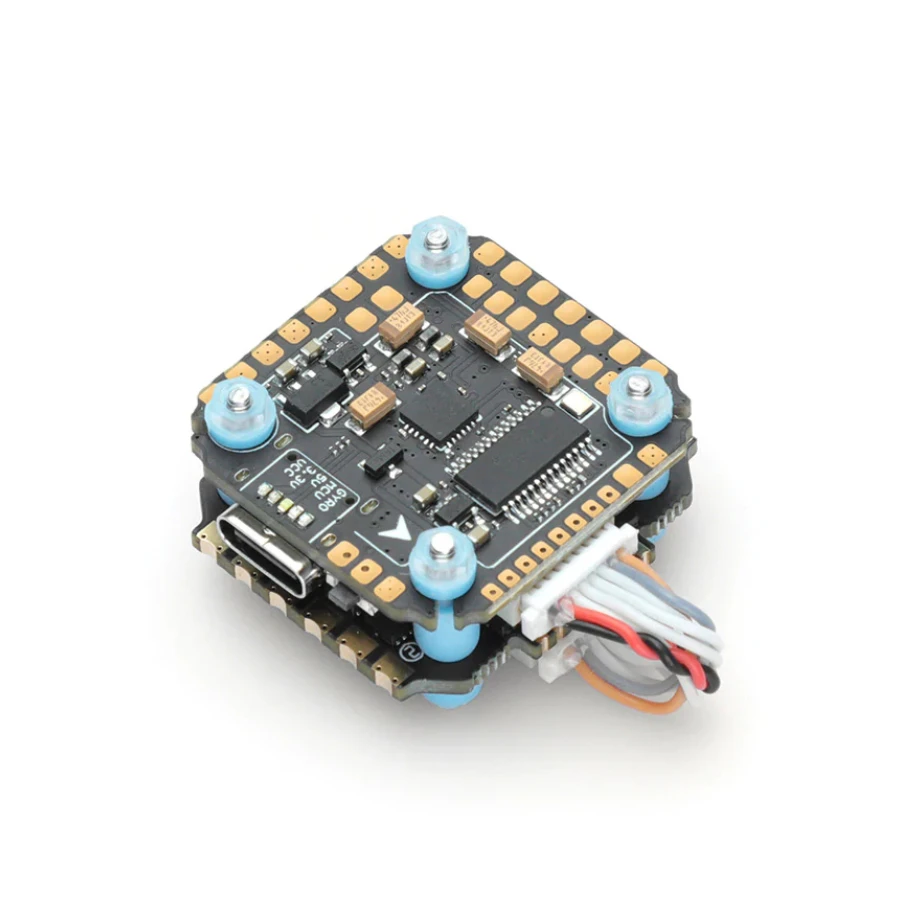

The Diatone Mamba F722 20mm mini stack includes an F722 Mini MK3 flight controller and 40A ESC. The F722 features the MPU6000 gyro and has 6 uarts. It includes an onboard 5V BEC for powering FPV gear. The F40 ESC supports BLHeli_S and includes a high 45A burst rating.

The MK3 includes the MPU6000 which is regarded as one of the most stable. Newer versions have had to change due to component shortages.

FC Specifications:

– MAMBA Basic F722MINI MK3
– MCU: 216MHz STM32F722RET6
– GYRO: MPU Series Six-Axis
– Barometer: Yes
– OSD: Yes
– Blackbox: 16M Flash Memory
– Uarts: 6 Set
– ESC Soft: Dshot300/600
– ESC Telemetry: Yes
– Power Led: Yes
– LED Controller: BF LED
– S/F.Port: Yes
– RSSI: Yes
– Buzz: Yes
– Input: 2~6S Lipo (8.4~25.2V)
– TVS Protection: Yes
– BEC:3.3V 0.5A& 5V 2.5A
– MOUNTING: 20mmx20mm, M2

ESC Specifications:
– MAMBA F40_BLS MINI
– INPUT VOLTAGE: 2~6S Lipo (8.4V~25V)
– CONTINUE CURRENT: 40A×4
– BURST CURRENT: 45A (10S)
– BEC: No
– Target：BLHeli_S CH40
– SOFT: Dshot300/600
– TVS Protection: Yes
– MOUNTING: 20mmx20mm, M2

Includes:

– Diatone Mamba F722 Stack Mini MK3 40A (20mm)
– Accessories
