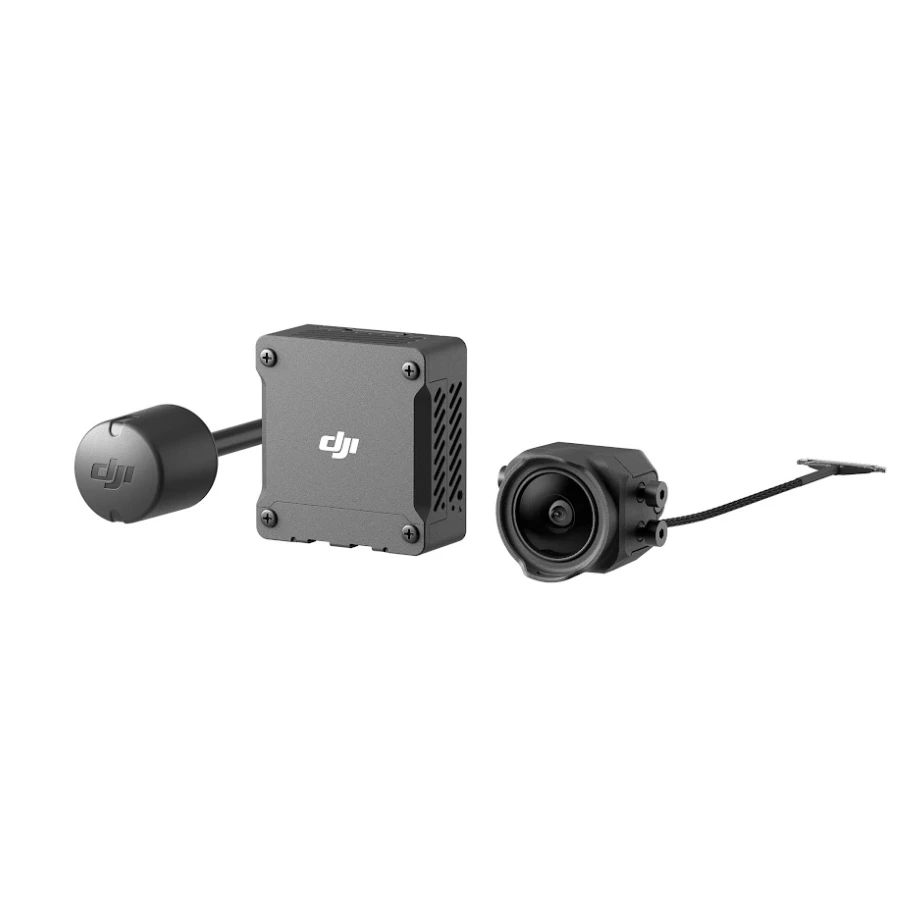

DJI O3 Air Unit

Overview:

The DJI O3 Air unit incorporates cutting-edge video transmission technology in a compact and lightweight body, the DJI O3 Air Unit takes your FPV experience to new heights. Enjoy excellent high-definition video transmission from extended distances with low latency. The O3 Air Unit takes a leap forward in imaging performance with its 1/1.7-inch sensor, 155° super-wide FOV, flagship video technology, and other upgrades. [1] It is also compatible with a wide range of products and delivers a video transmission solution that helps you to fully release your aerial creativity.

The DJI O3 Air Unit features upgraded imaging specs across the board. The air unit camera module is equipped with 20 GB of built-in storage as well as a 1/1.7-inch sensor to present richer details and high-quality imagery. It supports 4K/60fps video and shoots 155° super-wide FOV footage for stunning visual effects. [8] In addition, D-Cinelike color mode provides more creative freedom for color grading, allowing you to more flexibly edit and adjust your footage.

Compatible with DJI FPV Goggles V2 (Performance is different on these goggles) and DJI Goggles V2.

*** Note: The new DJI O3 Air Unit can draw close to 2A under certain settings. Please verify that your FC’s voltage regulator can supply 9V / 2A. If not, please consider powering the Air Unit directly from battery or by using a standalone voltage regulator (Recomended to provide additional protection) that supplies the required 2A. ***

Features:
– 30 ms 10 km Digital Video Transmission
– 1080p/100fps H.265 Video Transmission
– 4K/60fps Video
– 155° Super-Wide FOV
– Frequency Auto-Switching
– Canvas Mode

Specifications:

Camera
– Sensor 1/1.7-inch CMOS
– Effective Pixels: 48 MP
– Lens FOV: 155°
– Equivalent Focal Length: 12.7 mm
– Focal Length: 2.34 mm
– Aperture: f/2.8
– Focus Mode: FF
– Focus Range: 0.6 m to ∞
– ISO Range: 100-6400 (Auto) /100-25600 (Manual)
– Shutter Rolling Shutter
– FOV: 155°
– Video Resolution
– With DJI Goggles 2: 4K @ 50/60fps / 2.7 @ 50/60/100fps / 1080p @ 50/60/100fps
– With DJI FPV Goggles V2: 4K @ 50/60fps / 2.7K @ 50/60/100/120fps / 1080p @5 0/60/100/120fps
– Video Format MP4/EIS
– Supports RockSteady
– Weight – Approx. 8.3 g (coaxial cable included)

Air Unit
– Weight
– Air Unit (camera module excluded): Approx. 28 g
– Air Unit (camera module included): Approx. 36.4 g
– Antenna: Approx. 3 g
– Dimensions
– Transmission Module (L×W×H): 32.5×30.5×14.5 mm
– Camera Module (L×W×H): 21.2×20×19.5 mm
– Coaxial Cable: 115 mm
– 3-in-1 Cable: 100 mm
– Antenna: 85 mm
– Communication Frequency
– 2.400-2.4835 GHz (RX only)
– 5.725-5.850 GHz (RX and TX) [1]
– Transmission Power (EIRP)
– FCC: < 33 dBm
– CE: < 14 dBm
– SRRC: < 30 dBm
– End-to-End Latency [2]
– With DJI FPV Goggles V2:
– 810p/120fps Video Transmission Quality: The latency is lower than 28 ms.
– 810p/60fps Video Transmission Quality: The latency is lower than 40 ms.
– With DJI Goggles 2:
– 1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
– 1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.
– Max Video Transmission Range [3]
– 10 km (FCC), 2 km (CE), 6 km (SRRC)
– Supported Flight Control System (Betaflight)
– Input Voltage 7.4-26.4 V

Included:
– DJI O3 Air Unit (Air Unit, Camera, Antenna + Accessories)
