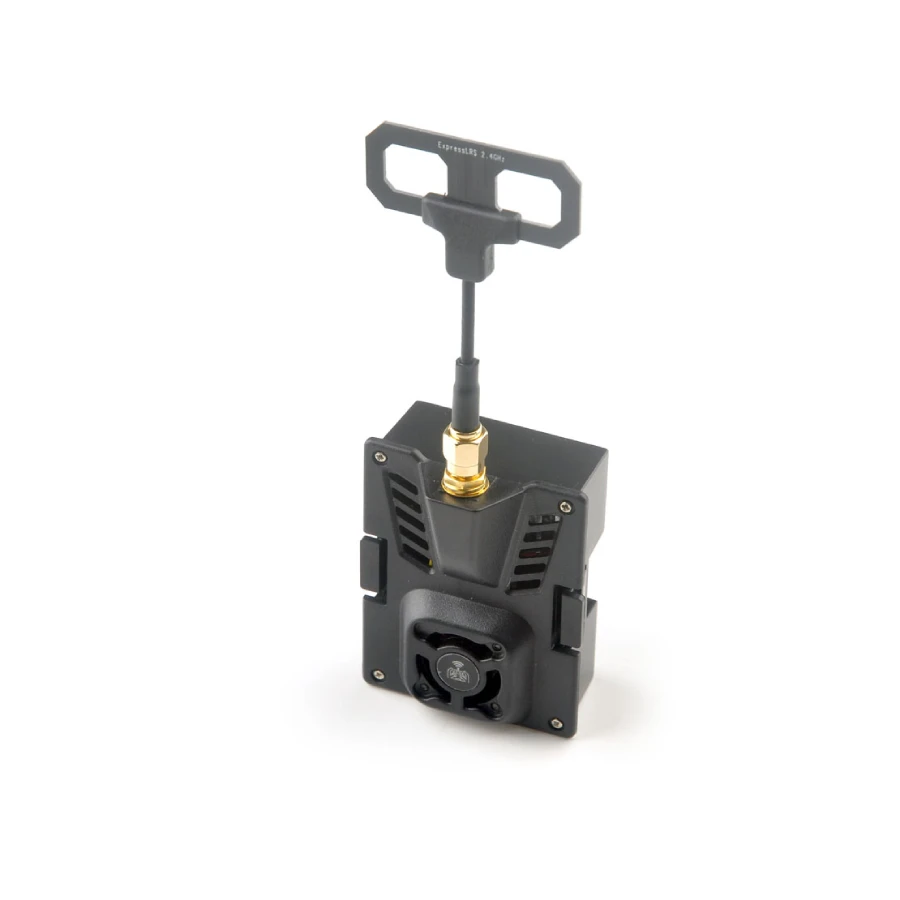

ELRS ES24TX Pro Micro TX Module

Original price was: $36.10.Current price is: $25.27.

Quick responses, top-notch service.

Quality You Can Count On

Nature-friendly materials, for a better planet.

Efficiency meets excellence in customer care.

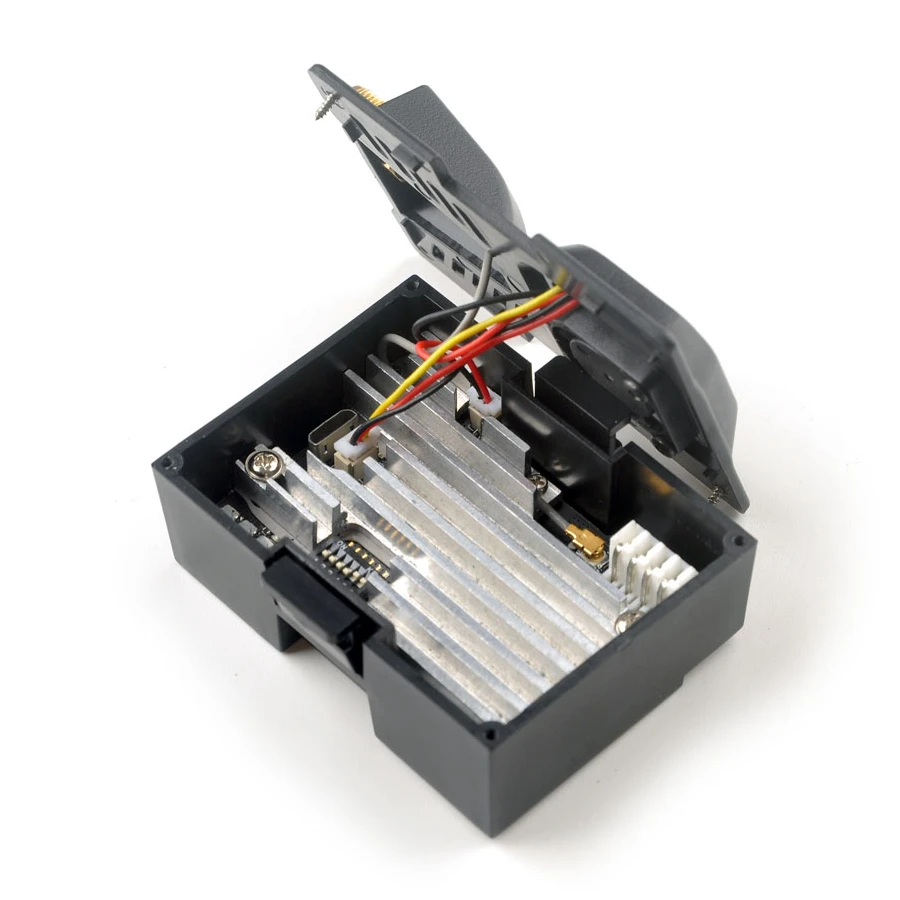

The ES24TX Pro JR module is a complete solution which is already pre-loaded with the Express LRS firmware and is plug and play. The module fits a normal JR bay. ExpressLRS is an open source, long range RC link for RC applications. It is based on the fantastic semtech SX1280 hardware combined with an ESP8285 and ESP32. The ES24TX Pro includes a cooling fan and RGB LED module and has a maximum transmission power of 1000mW.

Specifcations:

– Regulatory Domain: ISM2400
– MCU:ESP32(main),ESP8285(aux,as espbackpack)
– RF chip: SX1281IMLTRT
– JR standard 5pin socket
– Frequency Range: 2400 MHz to 2500 MHz
– Maximum receive refresh rate: 500Hz
– Minimum receiver refresh rate: 25Hz
– RF Output Power: >30dBm
– Power supply voltage: 5v~10v
– Weight: 51gram(without antenna）
– Dimension: 70mm*49mm*32.5mm
– Antenna gain: 4.18dBi
– Firmware target: HappyModel_ES24TX_Pro_Series_2400_TX
