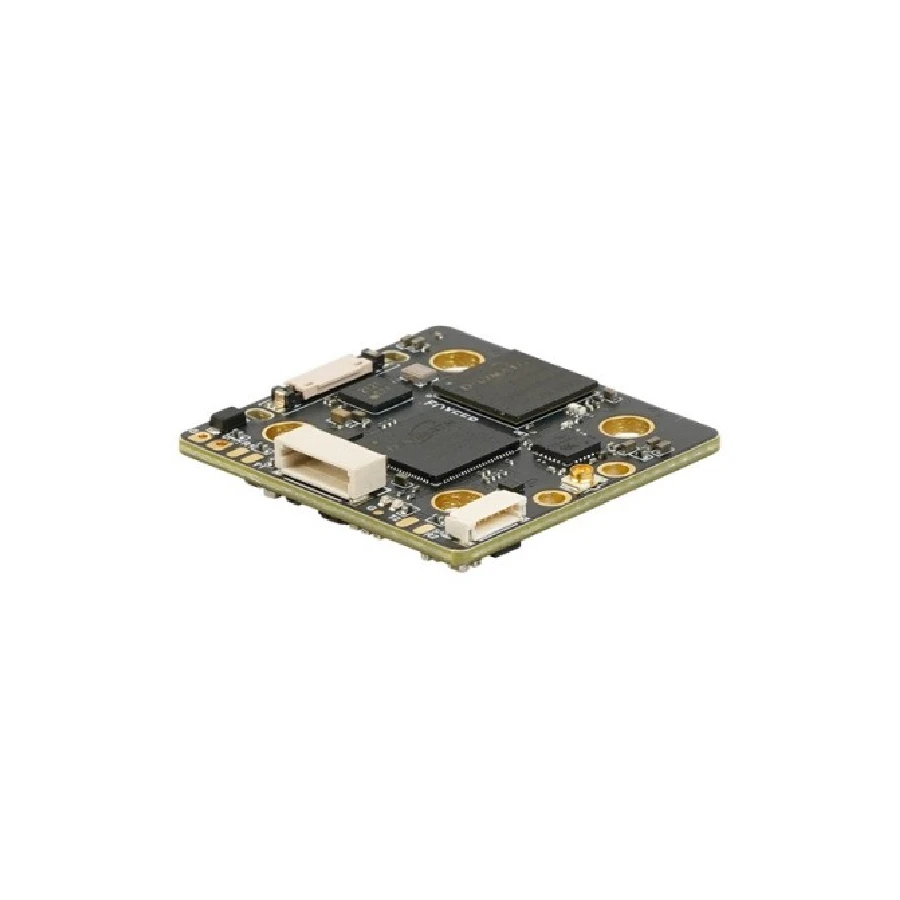

Foxeer HDZero VTX Race Edition

Overview:

The Foxeer HDZero VTX Race Edition is a compact and lightweight VTX that can output up to 200mw of RF power. It has a secured UFL connector, a 4 lane MIPI CSI interface and a 20 position 0.30mm pitch video connector. It supports 8~26V input voltage and has a 20mm x 20mm mounting hole pattern.

The Foxeer HDZero VTX Race Edition is compatible with the HDZero system. It offers you a clear and immersive FPV experience with low interference and high reliability.

Specifications:

– Model: Foxeer HDZero VTX Race
– Frequency: 5.8G
– Resolution: 1280*720@60fps
– RF power: 25mw/200mw
– RF Connector: Secured UFL
– Interface: 4 lane MIPI CSI YUV422
– Video Connector: 20 Position 0.30mm Pitch
– Size: 32mm x 34mm x 6mm
– Weight: 6.3g
– Power: 410mA@12V
– Input Voltage: 8~26V(3~6S)
– Mounting: 20mm x 20mm Φ4 M3
– Includes: 1*VTX; 6*Cables; 4*Gummy; 4*Pad; 1* Zip ties; 1*Plate/2*Nut/2*Screw

Included:

– Foxeer HDZero VTX Race Edition
– Accessories
