Overview:

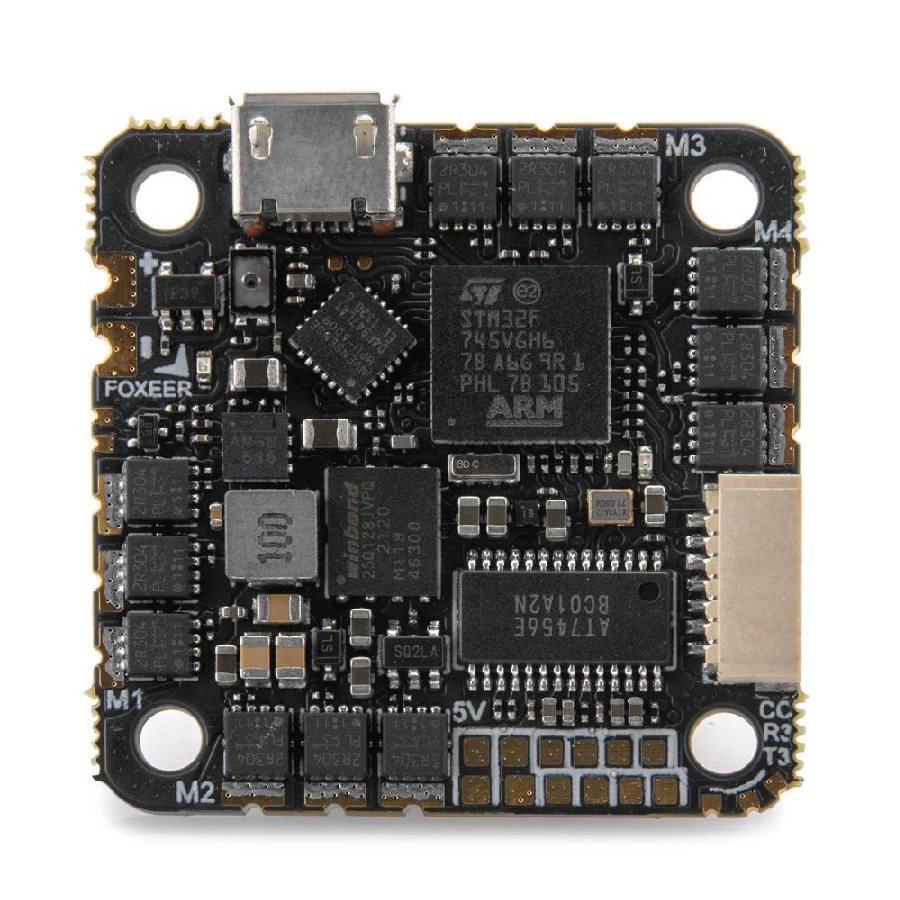

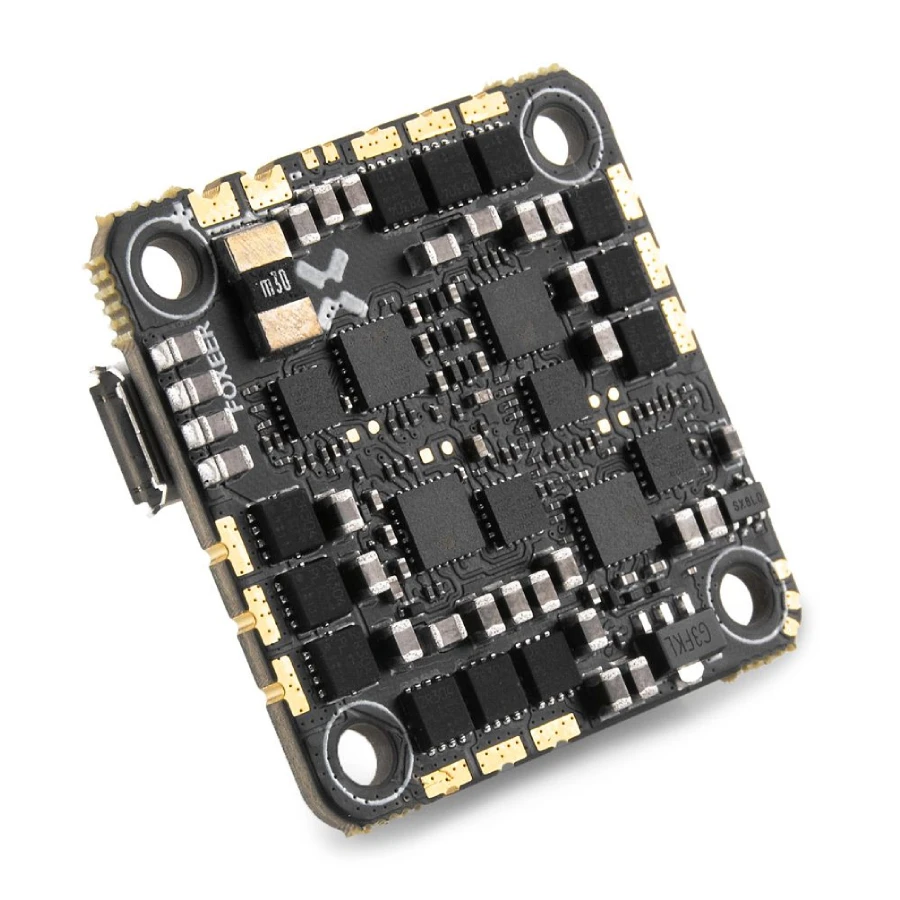

The Foxeer Reaper F745 45A AIO Flight Controller/ESC is a 45A all-in-one board that contains both an F7 flight controller and ESC on one single board. The Reaper AIO includes a DJI compatible socket (Note: Battery voltage is passed through so you MUST ensure its within acceptable range of the DJI Air Unit or use an external BEC).

** WARNING: in line with the warranty the manufacturer offers us on these boards, we offer ZERO warranty once the board is soldered. We are happy to attempt a warranty claim but success is unlikely. Please keep that in mind when purchasing **

Features:

– Model: FOXEER Reaper AIO
– CPU: STM32F745
– Gyro: BMI-270
– Power Supply: 2~6S Lipo(8.4~25.2V)
– BEC Output: DC5V/2.5A
– OSD: BF OSD
– Black Box: 16M Flash Memory
– UART: 5 Set
– USB: Micro USB
– Firmware BF:FOXEERF745_AIO; Inav:FOXEERF745AIO
– DJI Connector Supported 8pin
– Size: 32.5X32.5mm
– Mounting Hole 25.5X25.5mm,Φ3mm/M2

ESC Specifications:
– Firmware G-H-30 BLS 16.7
– Continuous /Burst Current 45A x 4/ 50A x 4
– Input Voltage 2~6S Lipo(8.4~25.2V)
– Telemetry No
– ESC Programming BLHeli-S
– Stick Programming Supported
– Current sensor: Supported
– Current scale: 100
– Input signal: Dshot300/600

Included:

– Foxeer Reaper F745 45A AIO
– Accessories
