FPV Combat Micro Kit

Overview:

FPV COMBAT is a platform developed to be installed on any RC vehicle equipped with an analog FPV system that lets the user add fighting functionality to their models based on IR technology similar to laser tag.

A dedicated OSD (On Screen Display) makes the system unique in the world, it shows all the needed information such as ammo, lifes, battery voltages, sight and much more!

The system can interact with the control of the vehicle simulating damages and adding an extremely real and adrenaline experience like never felt before in traditional FPV activities!

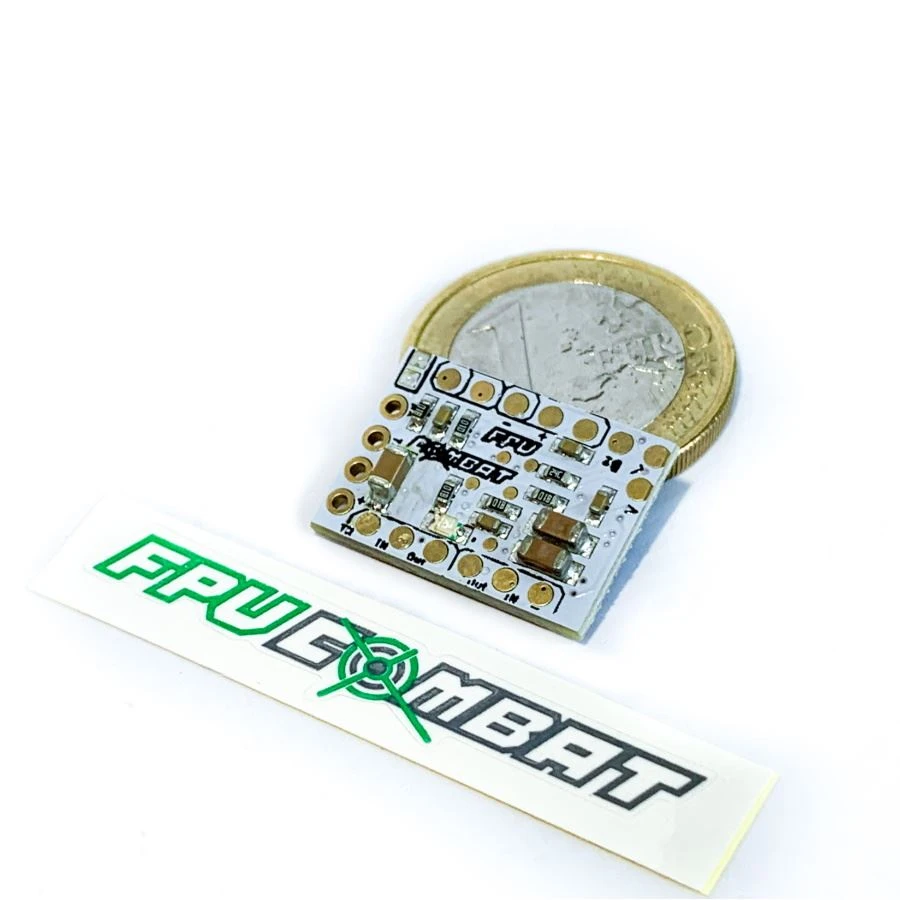

The Micro edition is the smallest version in size and weight only 1.50gr! Which makes it perfect for micro model setup like Tiny Whoops, micro scale crawler and whatever you prefer!

With all the main functions the bigger brother, it doesn’t include a local voltage regulator, and accepts voltages between 4.6-5.5V (need to be stable with a minimum rating of 500mA).

The shooting range is reduced and it is perfect for indoor applications or short distance fighting!

There is a pad for connecting an external buzzer if desired and one pad for measuring any desired voltage (up to 50Vdc).

Also the micro version supports addressable strip led (WS2812B) up to 255 single pixels!

The connections are well organized on the board itself and need to be directly soldered to the wires but they follow the standard 2.54 pin pitch so it is possible to solder traditional pin-headers and connect common servo plugs directly to the board.

** HOBBYRC are the exclusive UK distributor for this product **

Specifications:

– Weight: 1.5g
– 5V Power Input (4.6V-5.5V DC) With a stable 500mA current required
– Pad for external Buzzer
– Support for WS2812B LEDs
– Multiple Game Modes (Fox Hunt, Battle, Capture the Flag

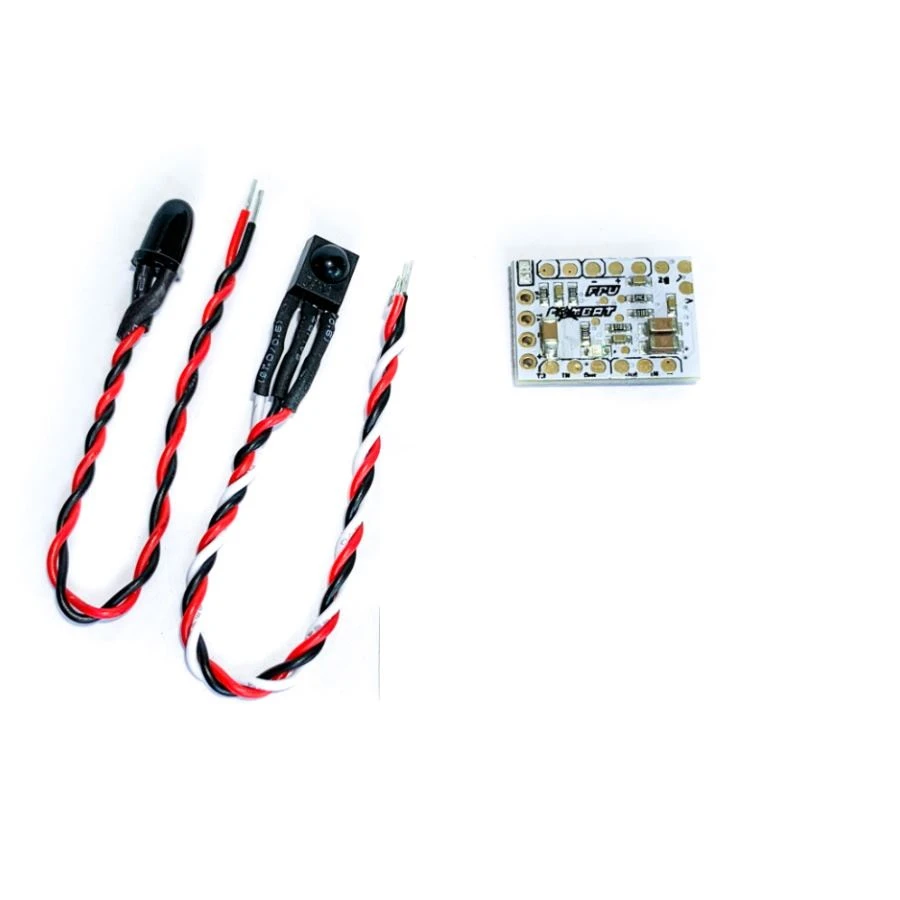

Includes:

– FPV Combat Main Board (Micro Size)
– 1x Micro Sensor
– 1x Micro InfraRed “gun”
