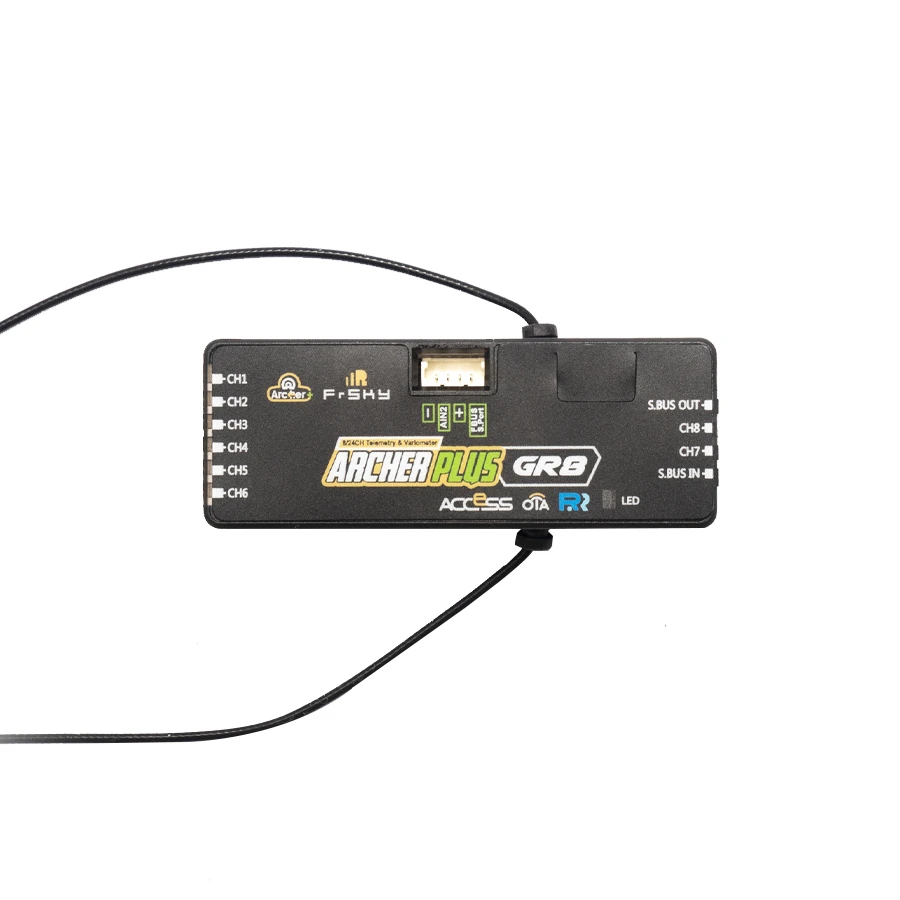

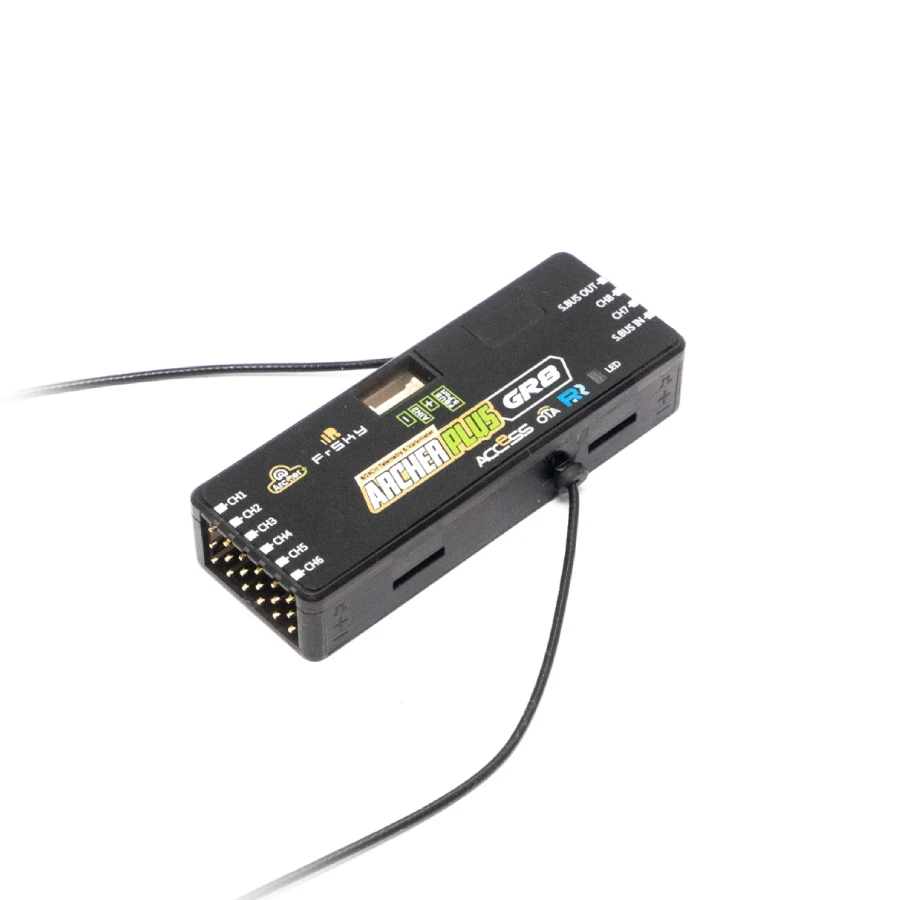

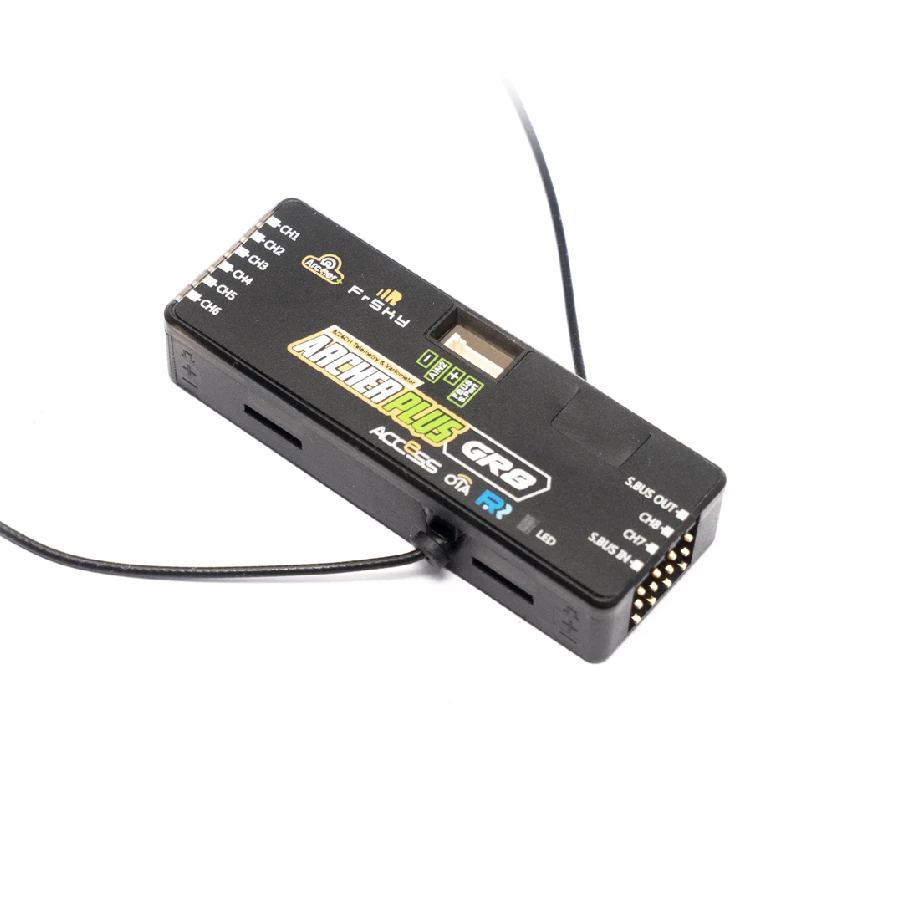

FrSky Archer Plus GR8 ACCESS/ACCST Receiver With Variometer

Overview:

The FRSKY ARCHER Plus GR8 has 8 high-precision PWM channel output and is ideal for any type of glider pilot. It features an upgraded high-precision variometer that gives pilots a quick, accurate altitude and vertical speed data. In addition to all this, the SBUS IN port on the GR8 can also be used as a redundancy receiver along with any other FrSky ACCESS/ACCST V2 (EU LBT & FCC) capable receiver equipped with an SBUS port. The best available signal will be used to ensure superior connectivity.

The Archer Plus Series receivers include some new features. Firstly an enhanced anti-RF-Interference capability can offer a more solid RF performance, and this is in addition to the receivers with anti-interfere performance in the spark ignition process. These Plus series receivers are also with both ACCESS and ACCST V2 (EU LBT & FCC) modes, where the RF protocol is smart matched during the binding process on the radio. With the Black-Box function, some basic flight data (like Power & Signal related) can be well preserved.

The Archer Plus GR6 are receivers with an upgraded high-precision variometer that gives pilots more accurate and quicker altitude and vertical speed data, and also features its more accurate and quicker vario audio feedback from your FrSky ACCESS enabled transmitter.

** NOT CURRENTLY COMPATIBLE WITH MULTIPROTOCOL RADIOS LIKE TX16S **

Features:

– Enhanced Anti RF-Interference capability with more solid RF performance
– Smart-matched ACCESS & ACCST V2 (EU LBT & FCC) modes
– Supports basic Black-Box function
– Upgraded variometer sensor
– 8 high-precision PWM channel ports
– SBUS Out port（Supports 16ＣＨ／24CH mode）
– SBUS In port (Supports Signal Redundancy)
– Full control range with telemetry (S.Port or FBUS)
– Over-The-Air (OTA) FW update
– External battery/device voltage detection

Specifications:

– Dimension: 54*20*10mm (L*W*H)
– Weight: 9.8g
– 16/24 Configurable SBUS Channels
– 8 High-precision PWM Channels
– Operating Voltage Range: 3.5 -10V
– Operating Current: 65mA@5V
– Control Range: Full range* with telemetry
– (*Full Range: ＞2km, range may vary based on local conditions.)
– Variometer Measurement Range
– Altimeter Range & Resolution: -700m to 10000m & 0.1m
– Vertical Speed Range: ±10m/s
– Voltage Measurement Range via AIN2 (External device): 0-35V with Voltage Divider 1:10
– Compatibility: All FrSky ACCESS / ACCST V2 (EU LBT & FCC) transmitters

Includes:

– FrSky Archer Plus GR8 ACCESS/ACCST Receiver With Variometer
– Accessories
