FrSky Archer Plus R6 ACCESS/ACCST Receiver

Original price was: $32.65.Current price is: $22.86.

Quick responses, top-notch service.

Quality You Can Count On

Nature-friendly materials, for a better planet.

Efficiency meets excellence in customer care.

Overview:

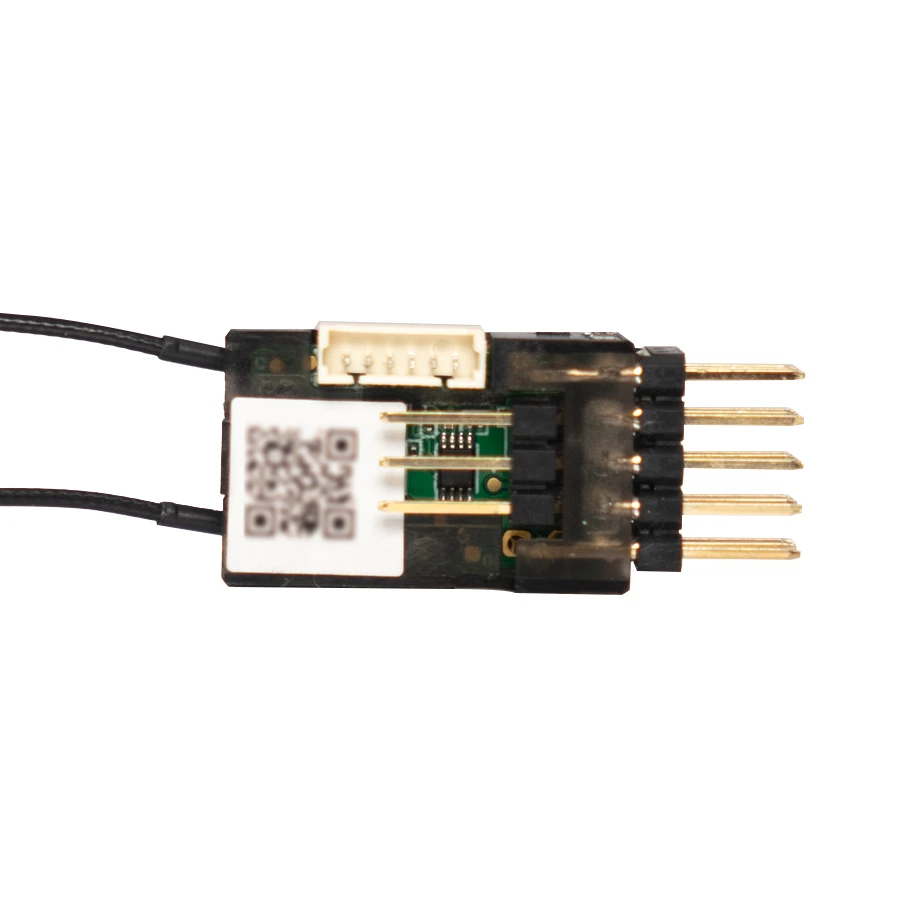

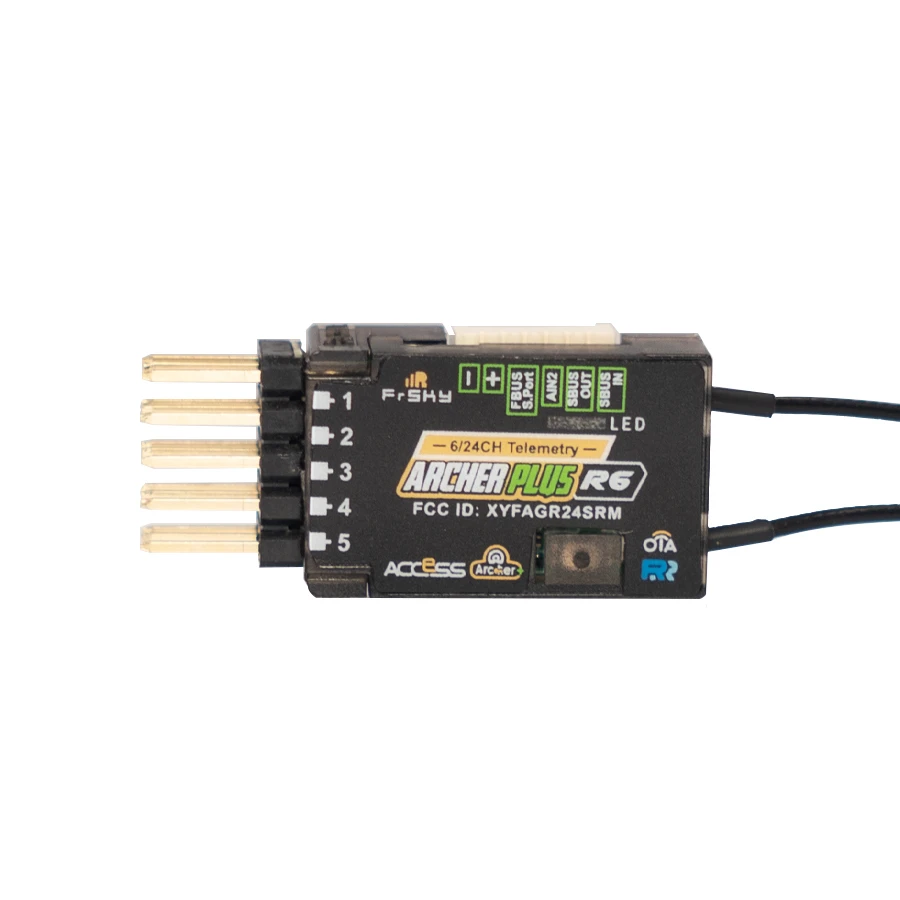

The FrSky Archer Plus R6 6 high-precision PWM channel receivers is ideal for any types of glider pilot, it supports full-range signal strength with dual detachable antennas and guarantees optimal antenna reception and range. The R6 can be used as a Primary receiver in a redundant solution by wiring the SBUS In port and connecting to any other FrSky receiver equipped with an SBUS Out port. With the FBUS protocol, the Archer Plus series receivers can open up the possibility of seamlessly pairing with multiple telemetry devices (XACT servos, ADV Sensors, etc.) as well as simplifying the builds setup.

The Archer Plus Series receivers include some new features. Firstly an enhanced anti-RF-Interference capability can offer a more solid RF performance, and this is in addition to the receivers with anti-interfere performance in the spark ignition process. These Plus series receivers are also with both ACCESS and ACCST V2 (EU LBT & FCC) modes, where the RF protocol is smart matched during the binding process on the radio. With the Black-Box function, some basic flight data (like Power & Signal related) can be well preserved.

** NOT CURRENTLY COMPATIBLE WITH MULTIPROTOCOL RADIOS LIKE TX16S **

Features:

– Enhanced Anti RF-Interference capability with more solid RF performance
– Smart-matched ACCESS & ACCST V2 (EU LBT & FCC) modes
– Supports basic Black-Box function
– 6 high-precision PWM channel ports
– SBUS Out port（Supports 16ＣＨ／24CH mode）
– SBUS In port (Supports Signal Redundancy)
– Full control range with telemetry (S.Port or FBUS)
– Over-The-Air (OTA) FW update
– External battery/device voltage detection

Specifications:

– Dimension: 33*15*9.7mm (L*W*H)
– Weight:3.5g
– Number of Channels: 6/24 channels
– 6 High-precision PWM & 16 SBUS channels Mode
– 6 High-precision PWM & 24 SBUS channels Mode
– Operating Voltage Range: 3.5 -10V
– Operating Current: ＜65mA@5V
– Operating Range: ＞2km (Full range)(*Range may vary based on local conditions.)
– Voltage Measurement Range via AIN2 (External device): 0-35V (Battery Voltage Divider Ratio: 1:10)
– Antenna connector: IPEX4
– Compatibility: FrSky 2.4GHz ACCESS / ACCST V2 (EU LBT & FCC) capable transmitters

Includes:
– 1x FrSky Archer Plus R6
