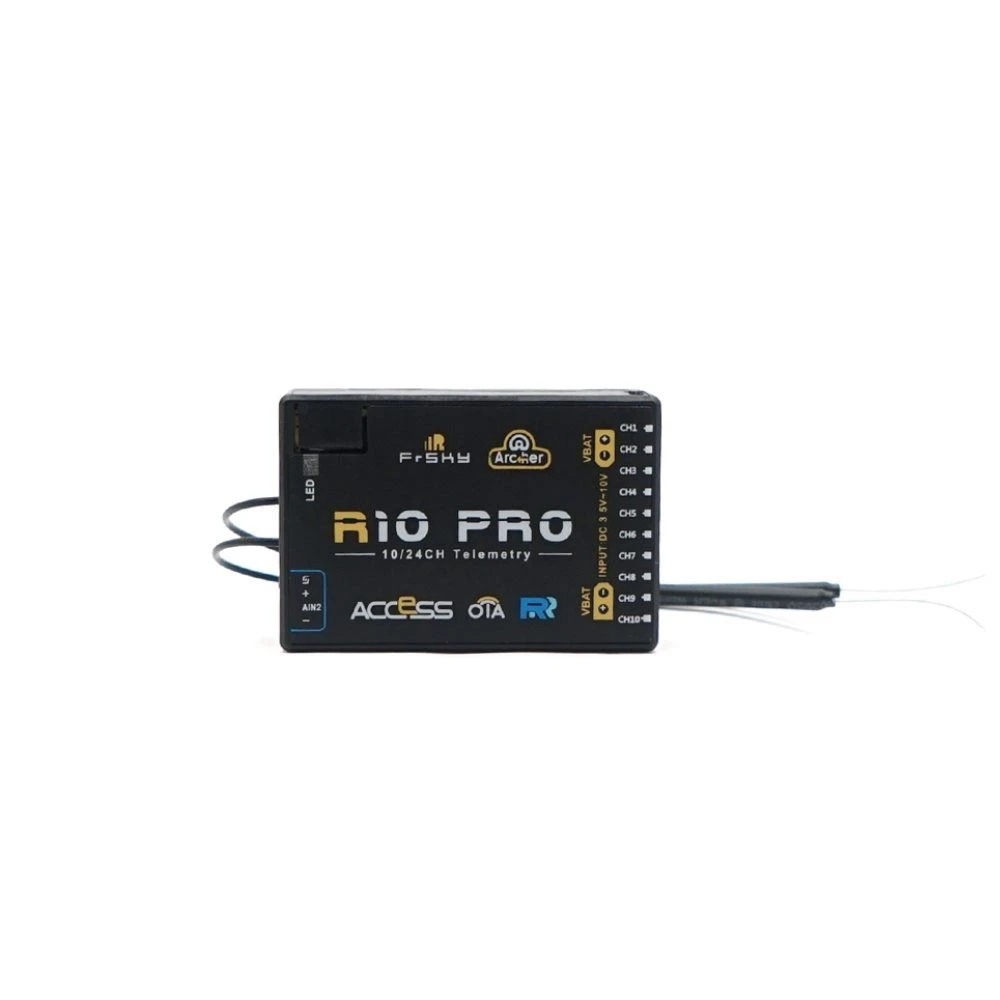

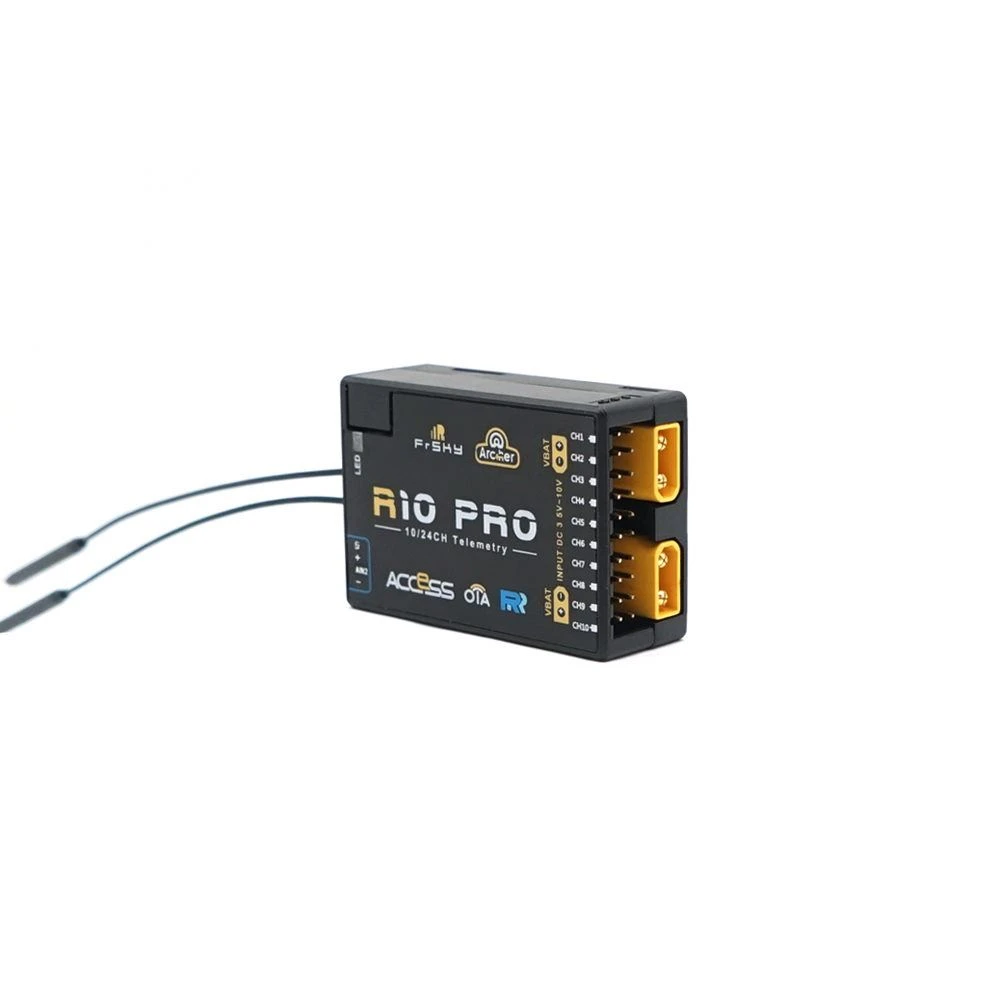

FrSky Archer R10 Pro ACCESS Receiver

Overview:

The FrSky Archer R10 PRO has 10 high-precision PWM channel outputs and features excellent Anti-interference performance when it comes to spark-ignition on internal combustion models.  It supports full-range signal strength with dual detachable antennas that assure optimal antenna reception and maximum range. In addition to all this, the R10 Pro can also be used as a redundancy receiver along with any other FrSky ACCESS capable receiver equipped with a SBUS port.

All of the Archer receivers are hyper-matched with the ACCESS protocol. They not only feature wireless firmware upgrades, increased range, and telemetry performance, the R10 PRO now supports more functions like configurable telemetry power, S.Port/F.Port switching and FLR output. Additional valuable features are under development to unlock the true potential of the ACCESS protocol.

** PLEASE NOTE, This stock is only compatible with FRSKY ACCESS radios. It won’t work with multiprotocol radios like the TX16S etc.  **

Features:

– ACCESS protocol with Over The Air (OTA)
– Supports signal redundancy (SBUS In)
– Supports power redundancy (Dual battery ports)
– Full control range with telemetry
– S.Port / F.Port
– Anti-interference in spark-ignition
– Anti-Vibration
– External battery / device voltage detection

Specifications:

– Dimension: 48.5*33*17mm (L*W*H)
– Weight: 21g
– 16/24 Configurable SBUS Channels
– 10 High-precision PWM Channels
– Operating Voltage Range: 3.5 -10V
– Operating Current: 80mA@5V
– Control Range: Full range* with telemetry
– (*Full Range: ＞2km, range may vary based on local conditions.)
– Voltage Measurement Range via AIN2 (External device): 0-36V
– Compatibility: All FrSky ACCESS transmitters
