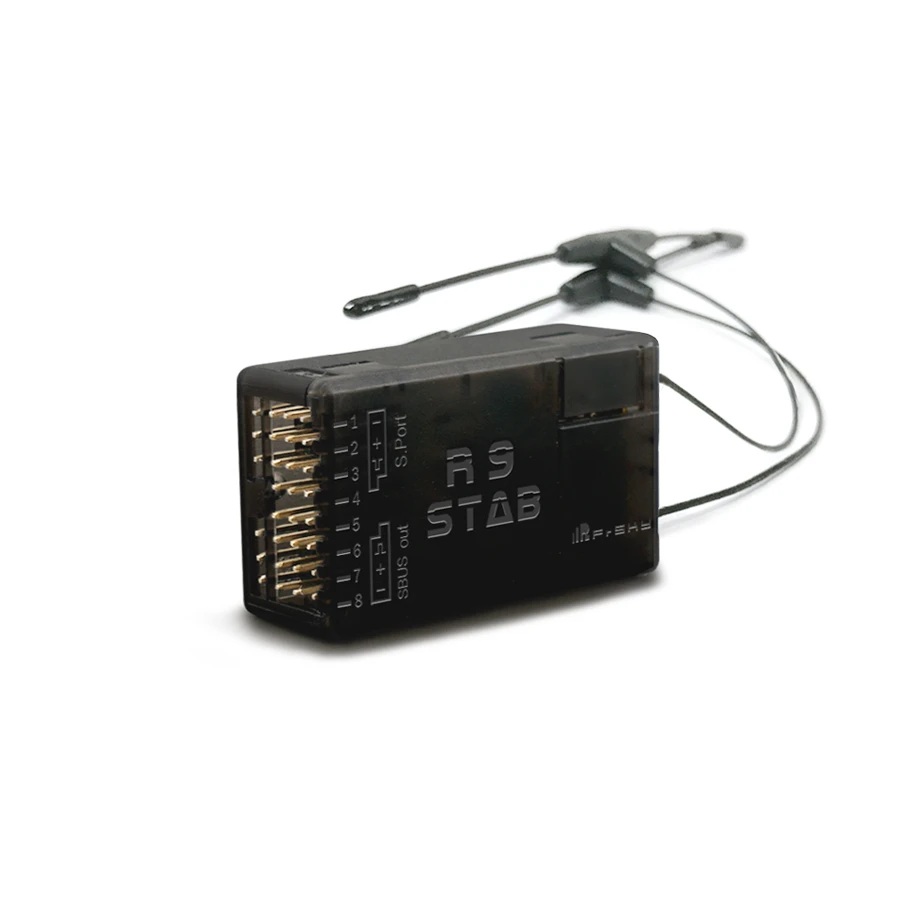

FrSky R9 STAB Receiver With Stabiliser

Overview:

The FrSky R9 STAB (R9S) is a long-range and stabilization receiver with a built-in 3-axis gyroscope and 3-axis accelerometer.

R9 STAB OTA has 8 PWM channels, on traditional fixed-wing models it will support stabilization, automatic level, hover and knife-edge flight modes. For delta wings and V-tail models, it supports stabilization and automatic level flight modes.

R9 STAB OTA receiver implements the ACCESS protocol and brings the user improved performance and features. It supports wireless over-the-air firmware updates, making binding to receivers even easier as well as conveniently checking the current receiver firmware version.

Paired with a FrSky radio transmitter, the parameters can be adjusted conveniently through the LUA script. In addition, parameters may also be adjusted by FreeLink (PC) and FreeLink App (with AirLink S).

Features:

– ACCESS protocol and supports OTA functions
– 900MHz/868MHz long-range with low latency
– Built-in 3-axis gyroscope and 3-axis accelerometer
– Support S.Port
– Supports quick configuration for setting multiple flight modes (quick mode)
– Detachable Ipex1 connector antenna
– Multiple configuration methods (LUA script and FreeLink)

Specifications:

– Dimension: 45.7*26.3*16.2mm
– Weight: 18.6g
– Numbers of Channel: 8/16CH (CH16 outputs RSSI)
– Operating Voltage: DC 3.5V~10V
– Operating Current: [email protected]
– Measuring range of gyroscope: ±2000dps
– Measuring range of acceleration: ±4g
– Compatibility: R9M Lite/R9M/R9M 2019 with ACCST firmware
– R9M Lite/R9M Lite Pro/R9M 2019 with ACCESS firmware

Includes:
– 1x FrSky R9 STAB Receiver With Stabiliser (EU)
