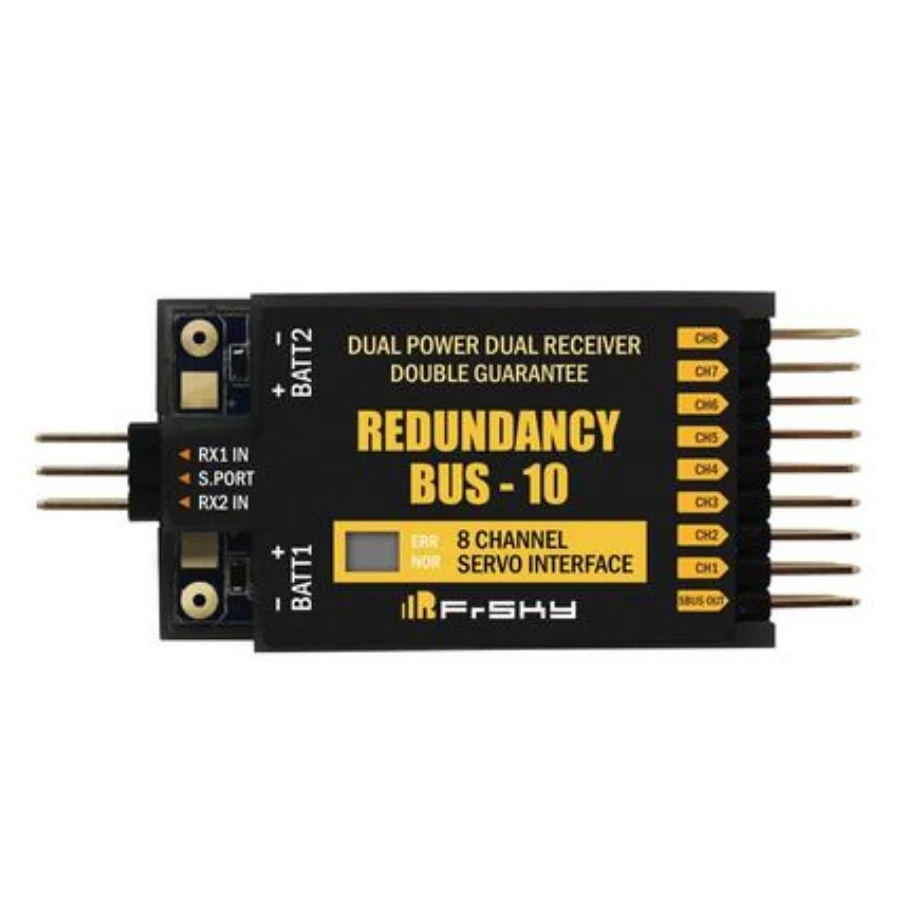

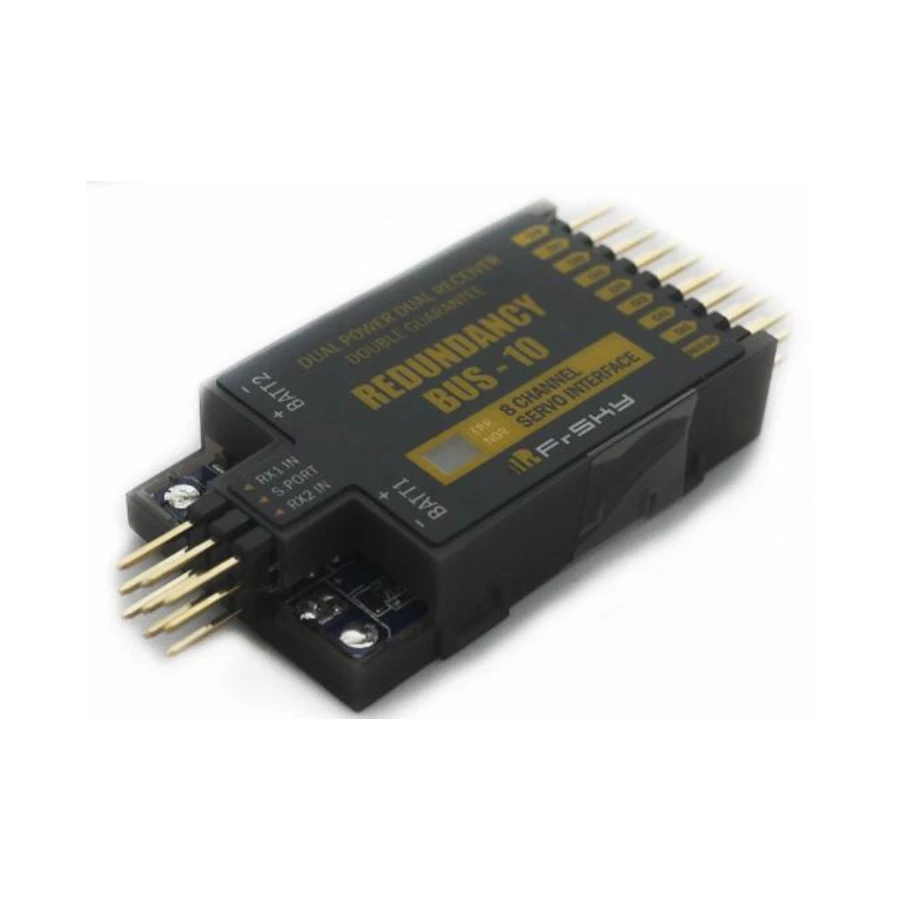

FrSky RB10 Redundancy Bus

Original price was: $28.00.Current price is: $19.60.

Quick responses, top-notch service.

Quality You Can Count On

Nature-friendly materials, for a better planet.

Efficiency meets excellence in customer care.

Overview:

The FrSky Redundancy Bus is a unique switchboard module that can operate 2 receivers and 2 batteries to provide you with total peace of mind when flying your model. You can also run your servos from the switchboard with complete protection from high voltage overload.

The Redundancy Bus also supports Smart Port telemetry for your Taranis and will provide telemetry feedback for voltage and overload indication.

Features:
– Overload protection on each channel and RXS
– Dual power dual receiver double guarantee (Connect up to 2 batteries and 2 receivers)
– 50Hz mode of servo outputs (20ms period) or equal to the input of SBUS cycle
– Integrated S.Port telemetry feedbacks (including voltage, overload indication, etc.)
– Servo signal output period settable
– High voltage servos supported

Specifications:
– Dimension: 63*27*10.5mm
– Weight: 10g
– Operating Voltage Range: 4~8.4V
– Operating Temperature Range: -20~75℃
– Number of servos: up to 8

Includes:
– 1x FrSky RB10 Redundancy Bus
