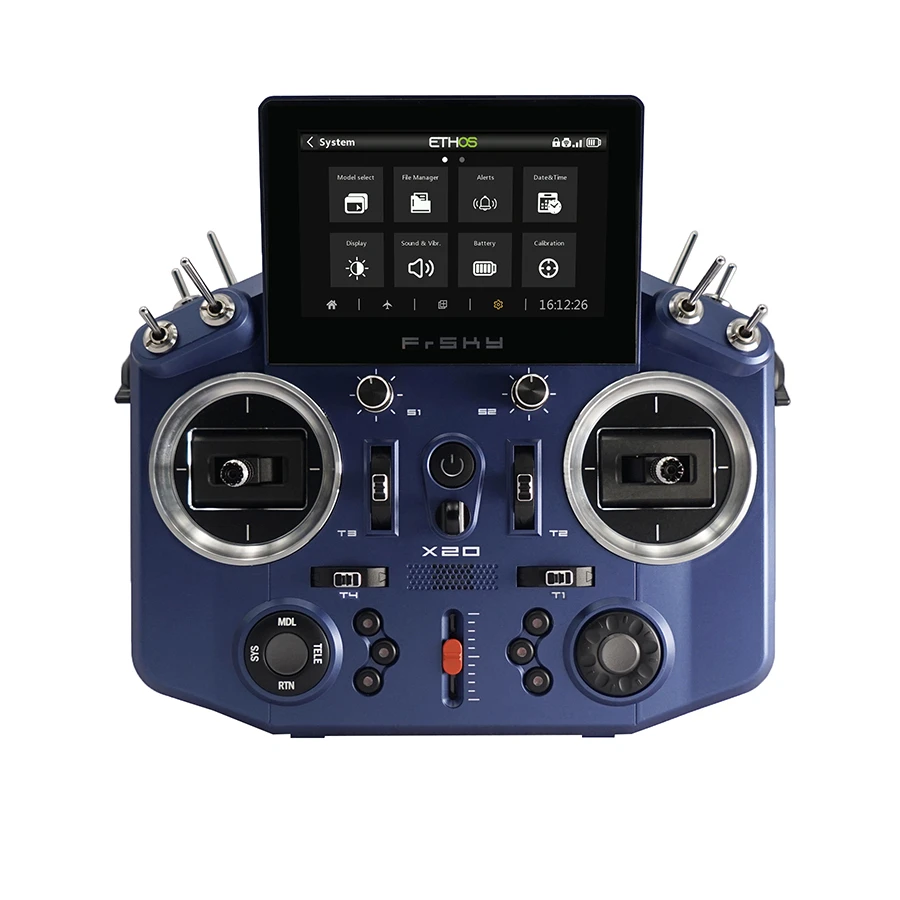

FrSky TANDEM X20 Transmitter (Blue)

Overview:

The FrSky Tandem X20 Series is a dual-band telemetry radio system. The X20 development has drawn on valuable feedback from FrSky’s extensive customer base, experience with previous radios and introduces many new features such as a color touch screen display, underpinned by an ergonomic design that provides unprecedented comfort when held. On the RF side, FrSky has introduced a powerful and reliable TD dual-band RF system, which features the advantages of the FrSky 868MHz and 2.4GHz in one combined RF system. The TD dual-band RF system is characterized by true simultaneous dual-band remote control with telemetry, and superb end-to-end 4ms latency performance. When combined with ETHOS, a completely new operating system, FrSky’s Tandem X20 Series provides users with a powerful, intuitive, and flexible experience to enjoy across the entire world of RC.

This is the normal, none “S” version in blue.

** This radio only supports EU LBT V2 D16 & ACCESS modes so won’t work with quads like the Tinyhawk that needs D8 mode. If in doubt please call and speak to us to check compatibility **

Features:

– Built-in TD 900M/2.4G Dual-Band Internal RF Module Supports Multiple Working Modes (868MHz in EU)
– 2.4G ACCST V2 D16 Mode (Compatible with ACCST Receivers with D16 V2 or later FW)
– 2.4G ACCESS Mode (Compatible with ACCESS Receivers)
– 900M ACCESS Mode (Compatible with ACCESS R9 868/915MHz Receivers)
– (*Capable of simultaneous working under ACCESS mode)
– 2.4G & 900M TD Mode (Compatible with TD Receivers)
– Super-low latency and long-range control with telemetry
– (*Up to 50 to 100KM range and down to 4ms end-to-end latency)
– 800*480 Color Touch-Screen Displays
– 6 Quick-Mode Custom Buttons (Front) and 2 Momentary Buttons (Rear)
– Lite Type External Module Bay
– Built-in 6-axis Gyroscope Sensor
– All CNC Metal Trims, Knobs
– Haptic Vibration Alerts and Voice Speech Outputs
– Supports SWR Indicator Warning
– Supports Recharge System for 2S Li-ion Battery (USB Type-C Interface)
– High-speed PARA Wireless Training System (Compatible with FreeLink App3.0)
– High-Precision Hall-Sensor Gimbals with Metal Panel
– Built-in Audio Wireless Module (Compatible with Bluetooth Audio Device)
– ETHOS: The more powerful, Flexible and Intuitive OS for your radio.
– Clear and Intuitive UI Design
– Supports Dual Operation Modes of Radio Display (Touch and Non-Touch)
– Supports Multi-Language Switching
– Hardware/Software Version and Factory Version Detection
– Supports running LUA Scripts

Specifications:

– Dimension: 212*200*95 mm (L*W*H)
– Weight: 809g (without battery)
– Operating system: ETHOS
– Internal RF module: TANDEM
– Number of Channels: 16/24 channels
– Operating Voltage Range: 6.5 ~ 8.4V (2S Li-battery) ** Battery Included **
– Operating Temperature: -10°C~60°C(14°F~140°F)
– Operating Current: [email protected] (typ.)
– Charging Current: ≤1A ±200mA
– USB Adaptor Voltage: 5V+0.2V
– USB Adaptor Current: >2.0A
– Backlit touchable LCD resolution: 800*480
– Compatibility: ACCST D16 ACCST V2 & ACCESS & TD receivers

Includes:

– FrSky Tandem X20 Mode 2 (Throttle on left) (Blue)
– Battery
– SD Card

PLEASE NOTE: These radios now ship with EU LBT V2 Firmware supporting ACCESS & D16 Mode
