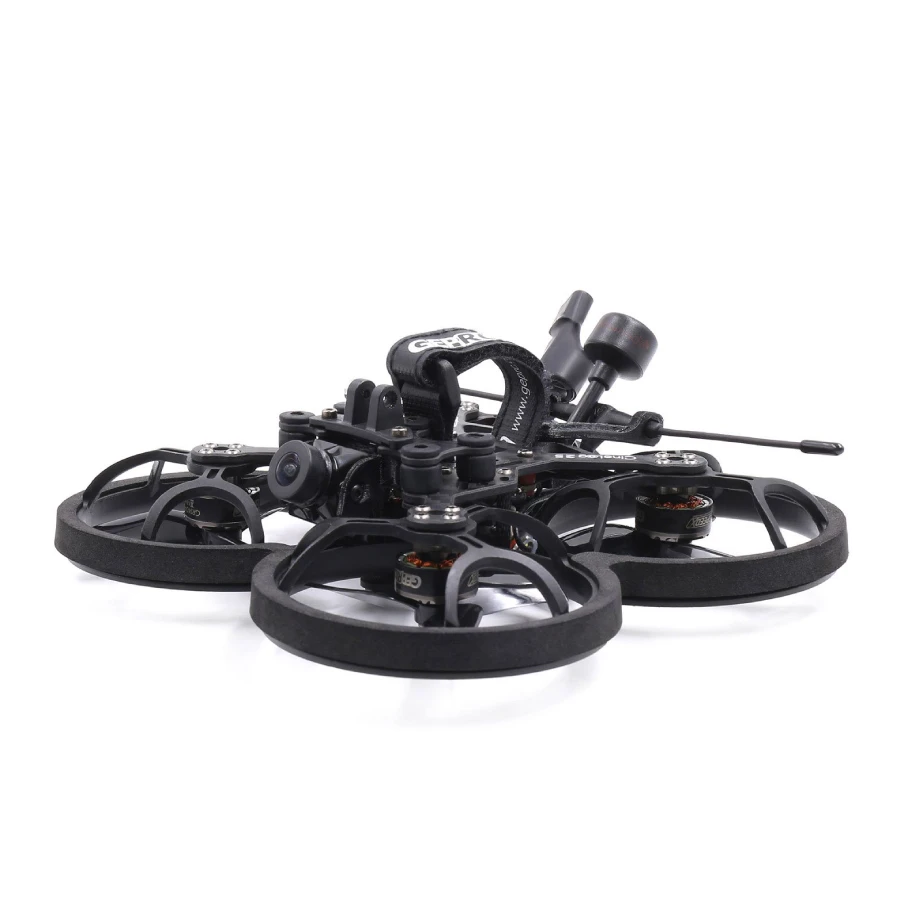

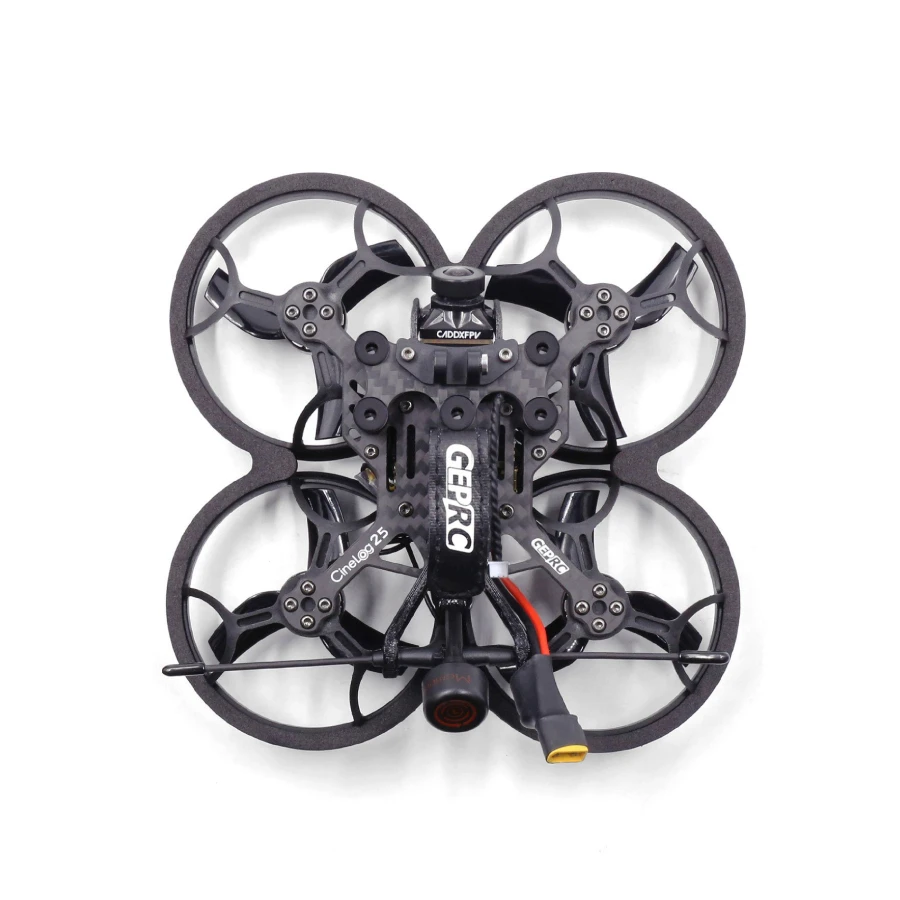

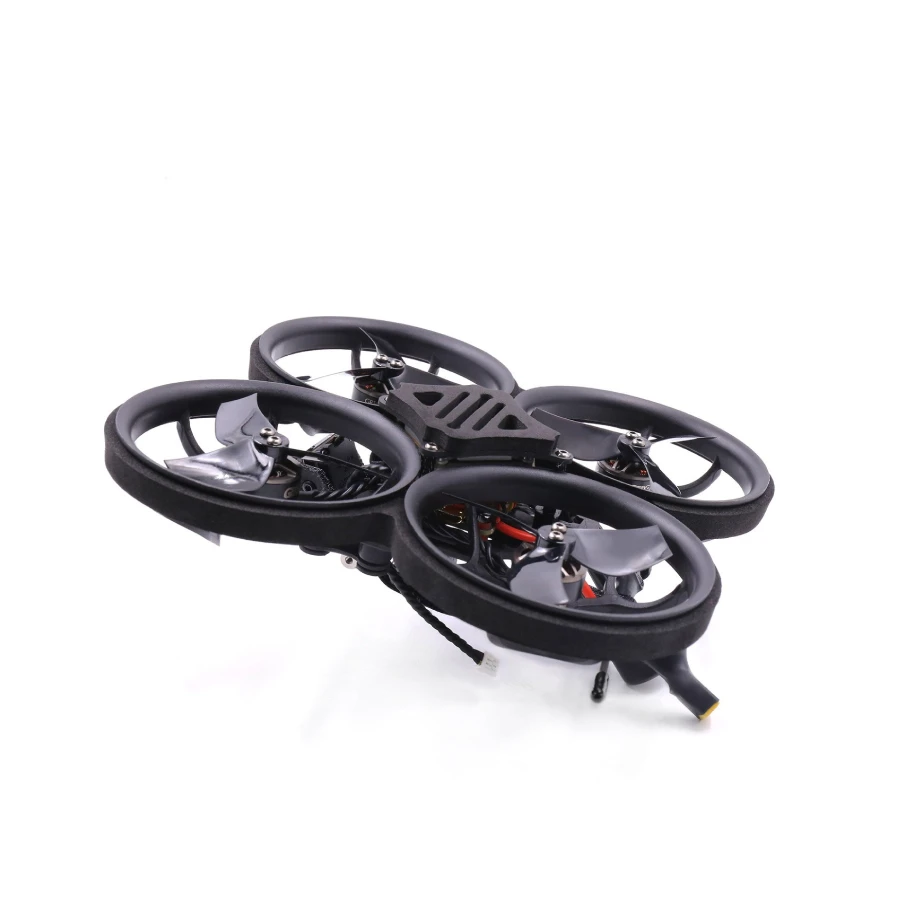

GEPRC CineLog25 HD DJI (PNP)

Overview:

The GEPRC CineLog 25 is a CineWhoop FPV drone developed by GEPRC team. The most noteworthy feature of CineLog25 is the lightweight quadcopter that can be shoot video by GoPro Lite. It adopts the most popular backward push design on the FPV field at present. It can effectively use the thrust weight ratio of propeller to obtain higher flight efficiency. In the overall layout of the drone, we put WASP HD VTX in the center of the quadcopter, so that the center of gravity of the quadcopter is in the middle, The propeller Inlet is smoother and the noise is lower. Redesigned the shock absorption structure of the camera mount and GoPro Lite, Eliminated the jelly of the camera and FPV camera, and we can use 3, 4 and 5 damping rings according to the flight state to obtain the best stability in vibration and noise.

This version is the CineLog 25 DJI FPV version. It takes 4S batteries. It is PNP so requires a receiver to be added.

The F411-35A AIO and GEPRC GR1404 4500kv(Upgraded Version) motors are used in flight system and power system. The power battery is compatible with 450mah ~ 750mah.

The flight time of CineLog25 is around 5.5 minutes (it depends on the flying habits). The stable electronic equipment and advanced frame materials make the quadcopter stable and can achieve all FPV freestyle tricks easily. The customized EVA protective foam cushioning around the frame is more elastic and can effectively protect the fuselage while crash happening!

Features:
– New camera damping system
– Brand-new exclusive pusher frame
– Low noise optimization
– Long range flight
– Low center of gravity design
– Perfectly Compatible with most of mainstream cameras
– Adjustable lens angle
– With EVA foam cushioning
– Optimized bottom design
– Camera power line output

Specifications:
– Brand: GEPRC
– Frame: GEP-CL25
– Wheelbase: 109mm
– Flight Controller: F411-35A AIO
– MCU: STM32F411
– Gyro: 6-Axis
– OSD: BetaFlight OSD w/ AT7456E chip
– ESC: BLheli_S 20A
– VTX: Runcam Link (Same as Vista)
– Camera: Runcam Wasp
– Props: GEMFAN D63-3
– Motors: GR1404 4500kv(Upgraded Version)
– Antenna: GEPRC Momoda 5.8g LHCP UFL
– CineLog25 Weight: 145.5g（Without battery）
– Battery: Recommended 4S 450-750mAh or 4S 660mAh 90/180C HV 3.8V/4.35V LiPo Battery

Includes:

– GEPRC CineLog25 HD DJI (PNP)
– Accessories
