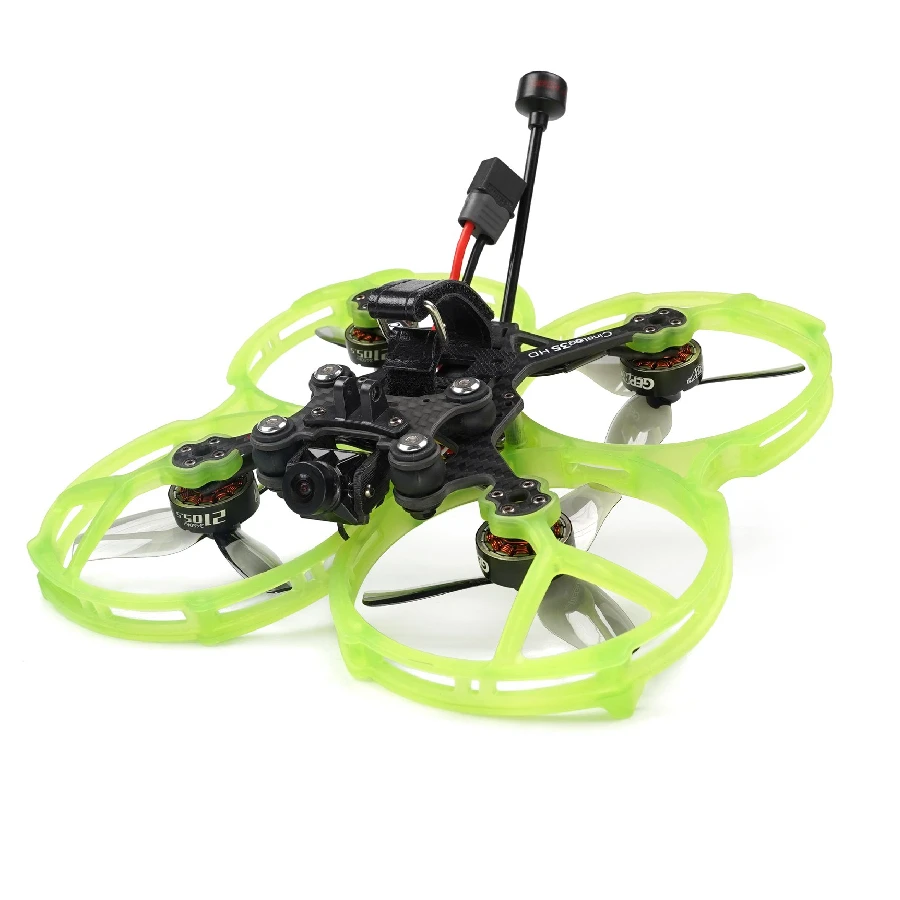

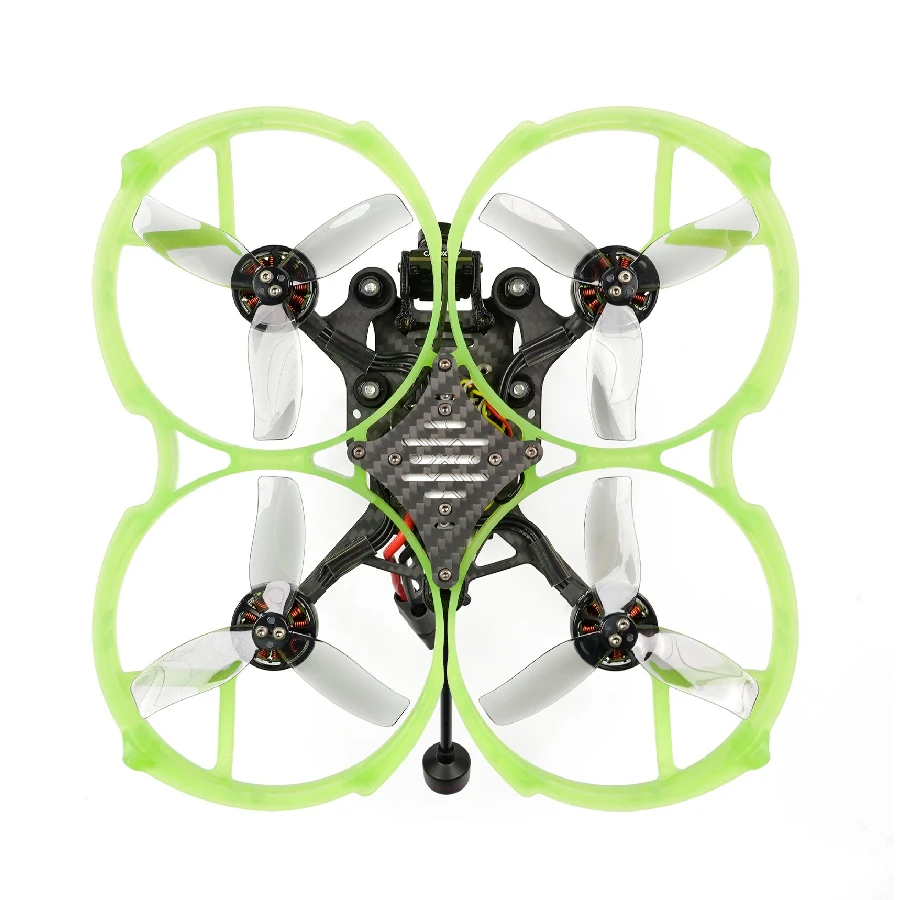

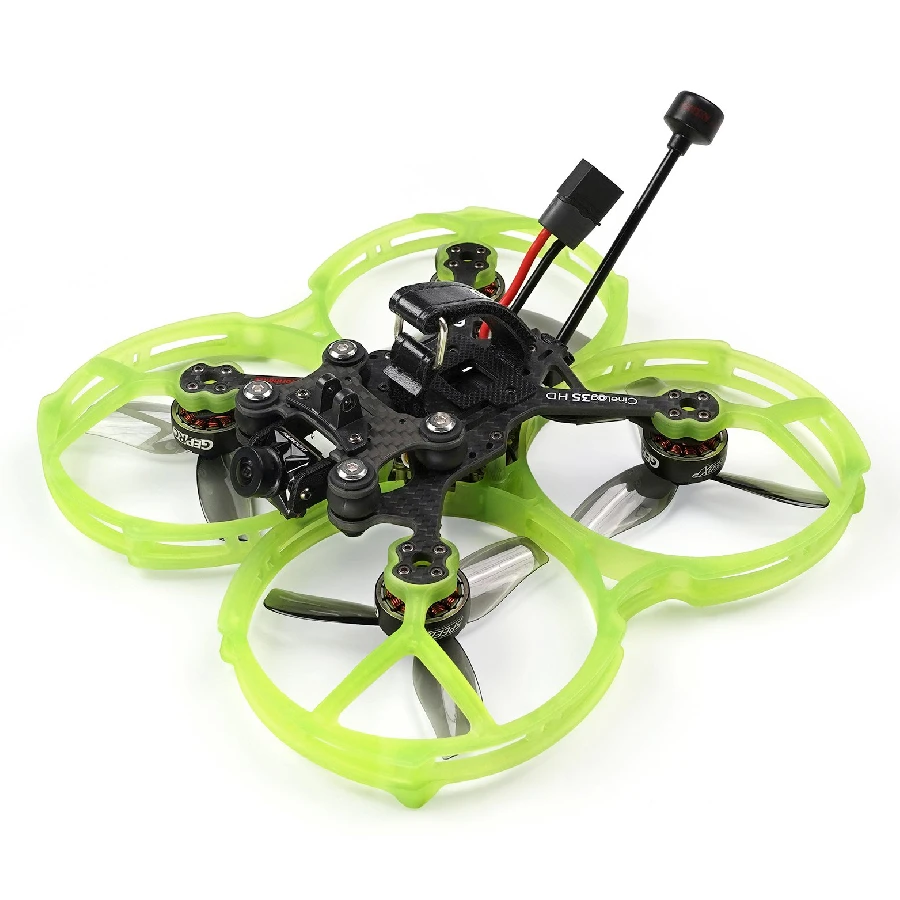

GEPRC CineLog35 Performance Analogue (PNP)

Overview:

The GEPRC CineLog 35 performance is a new generation of Cinematic FPV drone developed by GEPRC team. The high-strength 7075 aircraft-grade aluminum alloy bracket for FPV camera escort, the combination of classic engineering and aesthetics. The newly polished gimbal damping module can easily fix high-frequency vibration and jello issues. It can be mounted with GEPRC Naked GoPro Hero 8 and GoPro Black Bones, Insta 360 GO2 and other cameras. The image is stable and clear, and it’s easy to film.

This version is the CineLog 35 Analogue FPV version, compatible with 5.8GHz analogue FPV goggles. It is compatible with 6S batteries. It is PNP so requires a receiver to be added.

Adopts high strength one-piece injection-molded propeller guard and high-toughness and impact-resistant PC material for injection molding. A ring-shaped Cob light strip is embedded in the propeller guard, and the light effect is carefully tuned. High-strength grain-cut carbon fiber sheet, the overall strength of the fuselage is upgraded again!

The CineLog 35 will be equipped with a powerful SPEEDX2 2105.5 motor with optimized motor magnetic circuit and surging torque, which can easily cope with ultra-low altitude shooting. With Gemfan D90 tri blade propeller, it gets the lowest noise effect in its class. Using GEP-F722-45A AIO flight controller, higher performance redundancy, and easy handling of unexpected situations.

Features:
– 3.5-inch integrated propeller guard, hollowed-out weight reduction and noise reduction design, quiet and safe flight,brand new appearance design
– Design that combines engineering and aesthetics.
– Integrated prop protection guard
– Pusher prop design
– SPEEDX2 2105.5 motor with DT90-3 propeller, stable power output and smooth flight experience.
– The newly developed gimbal shock absorption structure can disintegrate high frequency jitter and jello effect. Easily carry a variety of action cameras.
– With the new GEP-F722-45A AIO, stable performance, more secure flight

Specifications:
– Model: CineLog35 Performance HD Nebula Pro FPV Quadcopter
– Brand: GEPRC
– Wheelbase:142mm
– FC: GEP-F722-45A AIO
– MCU: STM32F722RET6
– IMU: ICM-42688-P
– VTX: RAD 5.8GHz VTX
– Camera: Caddx Ratel 2
– Propeller: Gemfan DT90-3
– Antenna: Momoda 5.8GHz RHCP MMCX
– Charge connector: XT60H-M
– Motor: SPEEDX2 2105.5KV (6S Version)
– Weight: ~257.9g
– Receiver: PNP (Not receiver included)
– Recommended Battery: LiPo 6S 1550mAh with XT60

Includes:

– GEPRC CineLog35 Performance Analogue FPV 6S (PNP)
– Accessories
