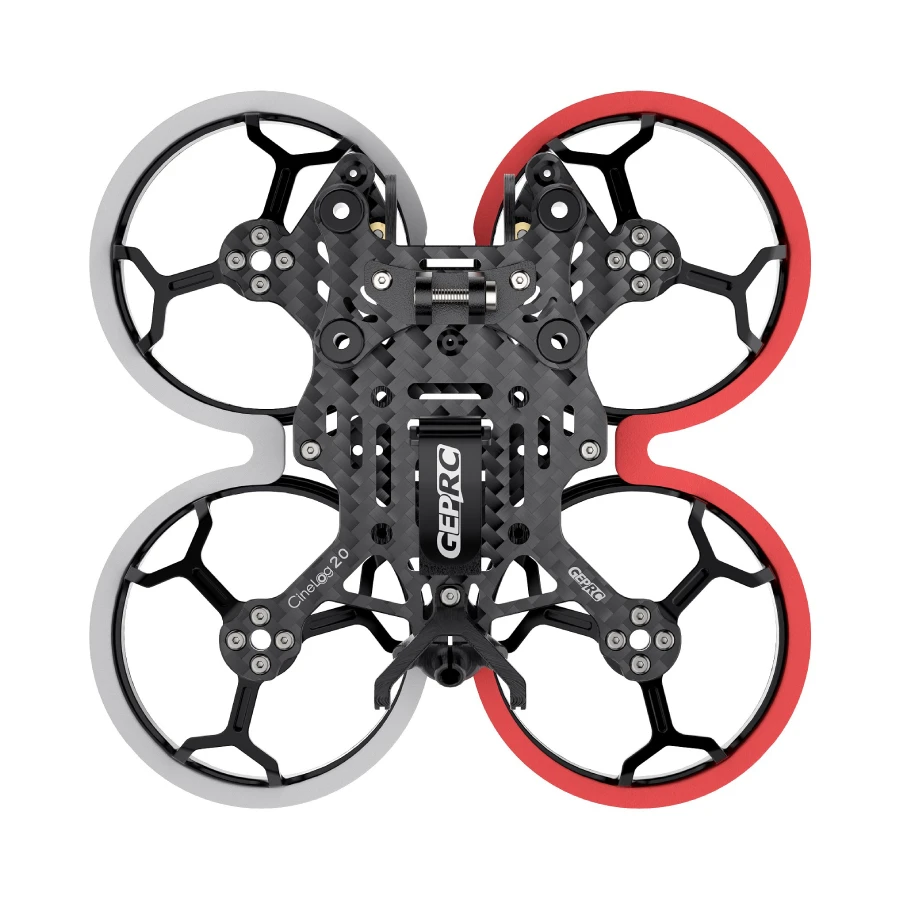

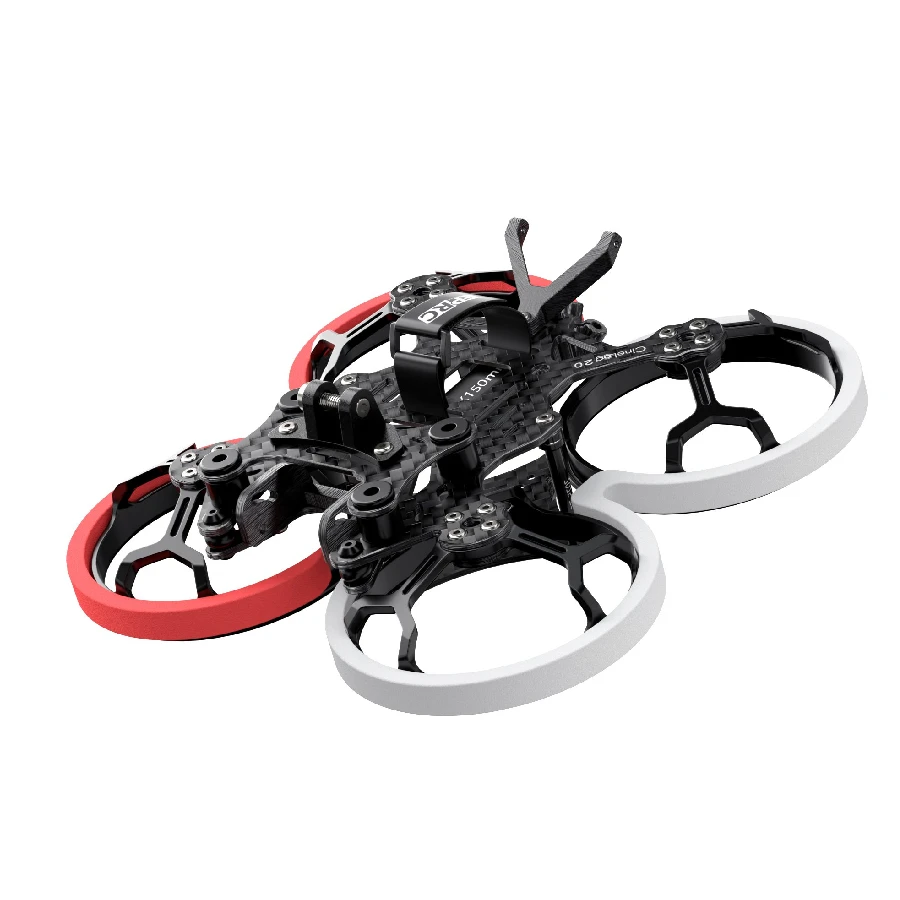

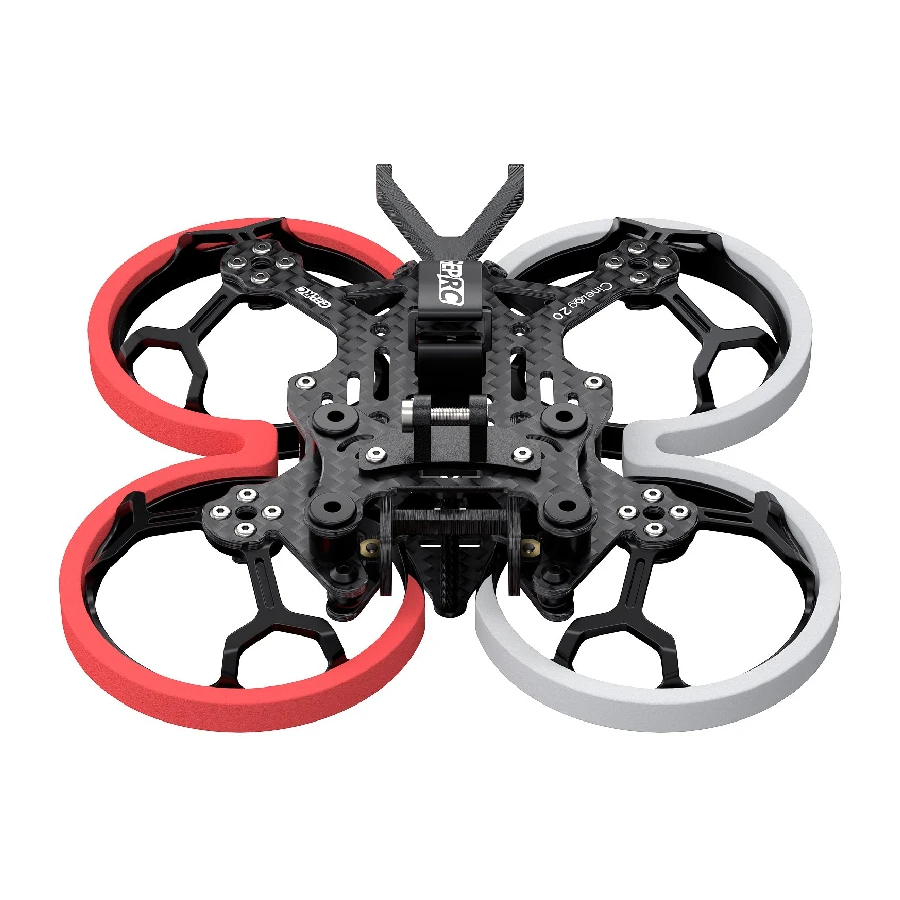

GEPRC CL20 2″ Frame

Overview:

The GEPRC GEP-CL20 is a compact 2-inch frame that can fit the DJI O3 Air unit.  The re-designed camera gimbal can easily eliminate the high-frequency vibration and jello issues. Soft connection damping design of the camera gimbal and can also be mounted with a naked GoPro base, which supports the installation of Naked GoPro 8/910/11, Insta360 Go2 and DJI Action2 cameras.

The flight controller mounting hole spacing is 25.5mmx25.5mm, which is compatible with various VTX holes on the market with 20mmx20mm/25.5mmx25.5mm. The 9mmx9mm motor mounting hole is used to install larger 12-13 series motors, and the compact body makes the flight more confident.

Features:

– Combining aesthetics and engineering for compact design
– Designed to mount a shock-absorbing gimbal under the independent FPV camera to reduce jello of FPV Goggles image.
– 2 inch pusher design, small size and lightweight, more suitable for complex and narrow environments flight shooting.
– Design the outer EVA damping ring to effectively reduce the impact force.

Specifications:
– Model: GEP-CL20
– Wheelbase: 100mm
– Main plate: 2.5mm
– Bottom plate: 1.5mm
– Camera gimbal plate: 2.0mm
– Camera gimbal triangle plate : 1.5mm
– Motor plate gasket: 2.0mm
– FC mounting holes: 25.5mm x 25.5mm
– VTX mounting holes: 20mm x 20mm /25.5mm x 25.5mm
– Motor mounting holes: 9mm x9mm
– FPV camera spacing: 20mm
– Suitable propeller size: 2 inch propeller
– Weight: 53.4g
– Flight controller: GEP-F4-35A AIO (mounting holes: 25.5mm×25.5mm)
– Motor: 1303.5 (mounting holes: 9mm×9mm)
– ESC: 35A
– Propeller: 2 inch
– Recomended Battery: 4S 660mAh

Includes:

– 1x GEPRC CL20 2″ Frame
