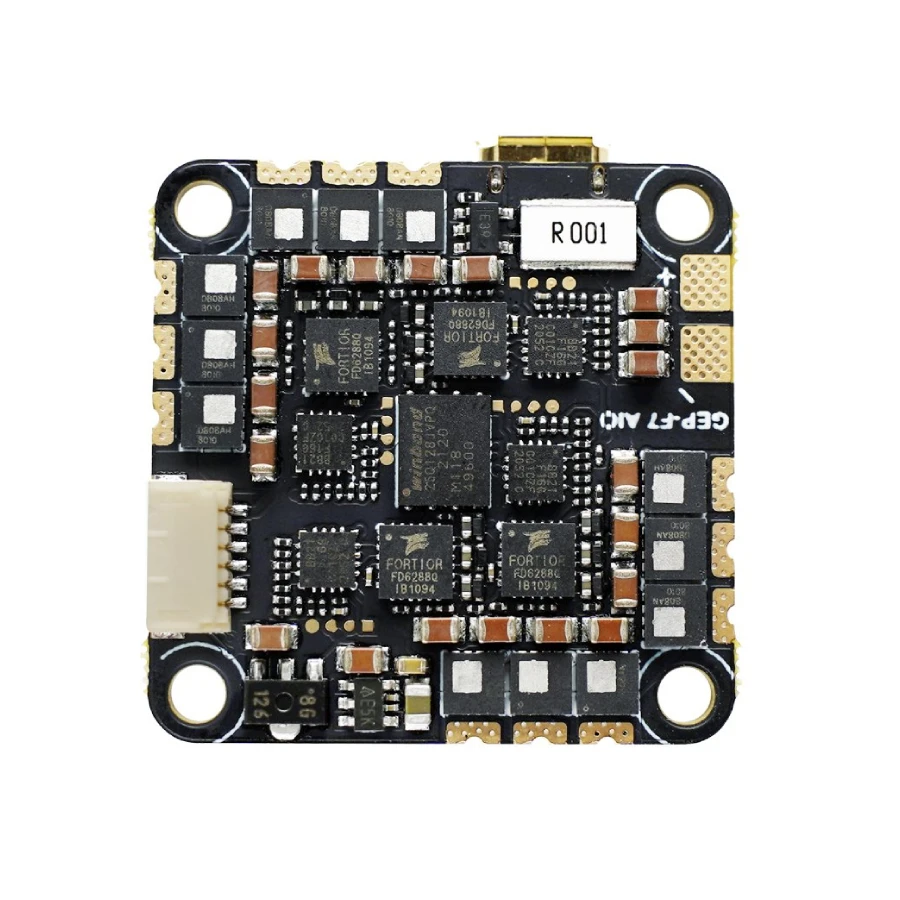

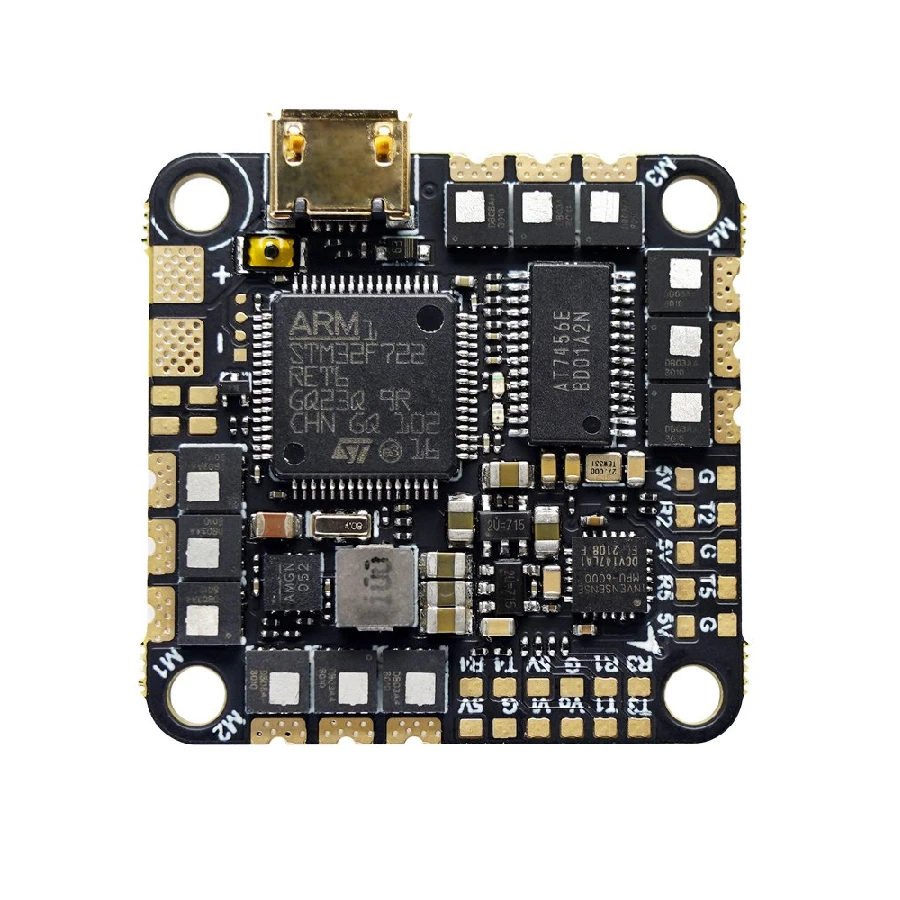

GEPRC F722 45A AIO V2 (25.5mm)

Overview:

The GEPRC F722 45A AIO is powered by an STM32F722 MCU. The AIO has 5 full UART ports which allows more external devices like receivers/VTX/GPS to be connected. the AIO weighs only 8.8g and includes 25.5mmx25.5mm mounting holes.

GEPRC includes a 6-pin connector for the DJI AIR UNIT MODULE to allow for quick plug and play.

The BLheili_S 45A ESC can handle 45A continuous current(55A burst) and supports 2-6S lipo batteries.

Features:
– MCU:STM32F722,with strong performance and higher computing speed.
– It has 5 full UART ports, which can connect more external devices
– Design 6p connector for DJI AIR UNIT MODULE, and just plug and play .
– The BLheili_S 45A ESC can handle 45A continuous current(55A burst), totally support the 2-6S lipo battery, which can bring the drone a stronger flight performance.
– Support OSD parameter adjustment, buzzer, led and other functions.
– 8g ultra light weight
– 5mm * 25.5mm mounting hole, suitable for most frames

Specifications:
– Model Name: GEP-F722-45A AIO V2
– MCU: STM32F722
– IMU: 42688 gyro/accelerometer(SPI)
– Firmware target: GEPRC_F722_AIO
– OSD: Betaflight OSD w/ AT7456Ev
– UART Ports: R1 T1 / R2 T2 / R3 T3 / R4 T4 / R5 T5
– Beeper: YES
– LED: YES
– USB: Micro USB
– BEC output: 5V@1A
– Intergrated LC Filter
– ESC MCU: 8BB21F16G
– Continuous current: 45A
– MAX current: 55A (10s)
– Input: 2~6S
– Supports: Dshot600,Oneshot,Multishot
– BlackBox: 16Mb
– Target: G_H_30
– Size: 32x32mm Board
– Mounting Hole: 25.5×25.5mm
– Weight: 8.8g

Includes:

– 1x GEPRC F722 45A AIO V2
– Accessories (Capacitor, Cables, Anti Vibration Rings)
