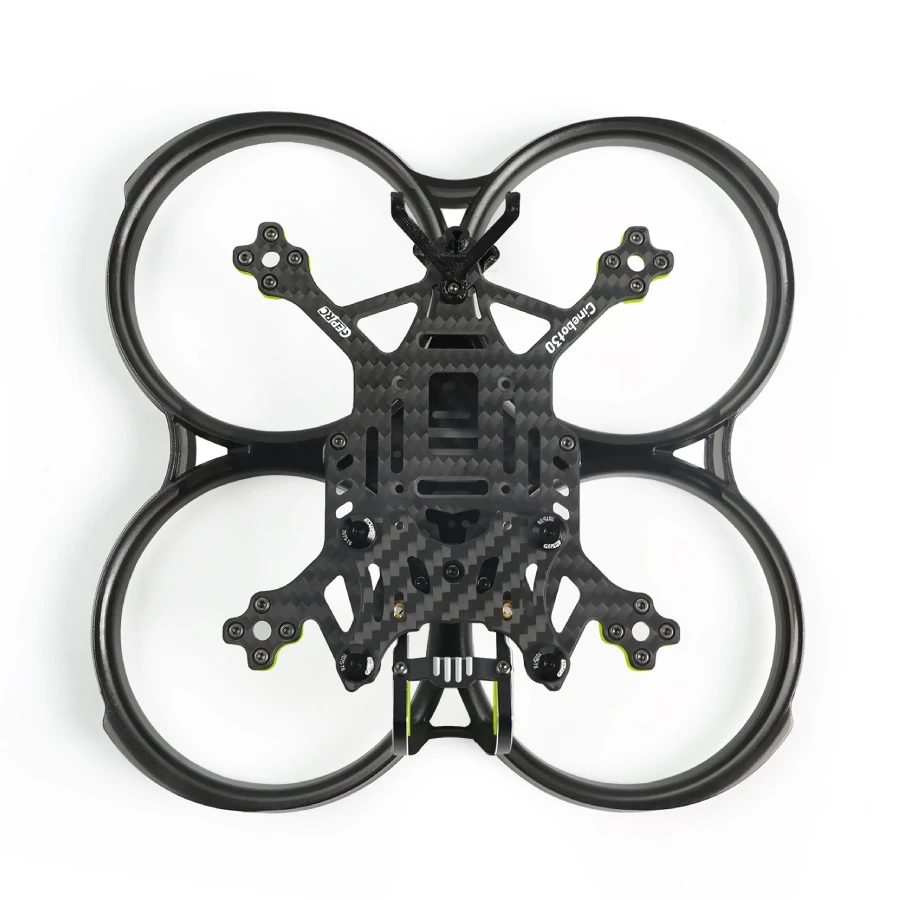

GEPRC GEP-CT30 O3 Frame

Overview:

The GEP-CT30 O3 frame specially developed by GEPRC team for cinematic enthusiasts and compatibility with the DJI O3 Air Unit & Camera.

The newly polished gimbal damping module can easily fix high-frequency vibration and jello issues. It can be mounted with multiple brands of action camera. Included is a TPU soft mount method designed for O3 camera, which helps prevent the camera IMU vibration. The GEP-CT30 O3 frame supports the installation of mainstream AIO flight controllers with 25.5mmx25.5mm mounting holes, and is compatible with various VTX mounting holes on the market such as 20mmx20mm/25.5mmx25.5mm. With 12mm x 12mm motor mounting holes, can be installed with larger 15-18-20 series motors, with strong power output with 3-inch propeller. Ultra-light fuselage weight for more confident flying.

Features:
– Design that combines engineering and aesthetics.
– Quick-disassembly design, only need to remove 6 screws to upgrade or replace parts.
– Selected high-toughness and impact-resistant PC +PET material for injection molding.
– Aviation 7075-T aluminum alloy camera mounting bracket and fuselage aluminum column.
– The newly developed gimbal shock absorption structure can disintegrate high frequency jitter and jello effect. Easily carry a variety of action cameras.
– Compatible with a variety of fpv system with the program, choose to belong to your first-person view.

Specifications:

– Brand: GEPRC
– Model: GEP-CT30 O3
– Motor to Motor: 127mm
– Isolation Plate: 2.0mm
– Main Plate: 3.0mm
– Bottom Plate: 1.5mm
– FC Mounting Hole: 25.5mm x 25.5mm
– VTX Mounting Hole: 20mm x 20mm /25.5 x 25.5
– Motor Mounting Hole: 12mm x 12mm
– FPV Camera Spacing : 20mm
– Suitable Propeller Size: 3 inch propeller
– Weight: 101.8g

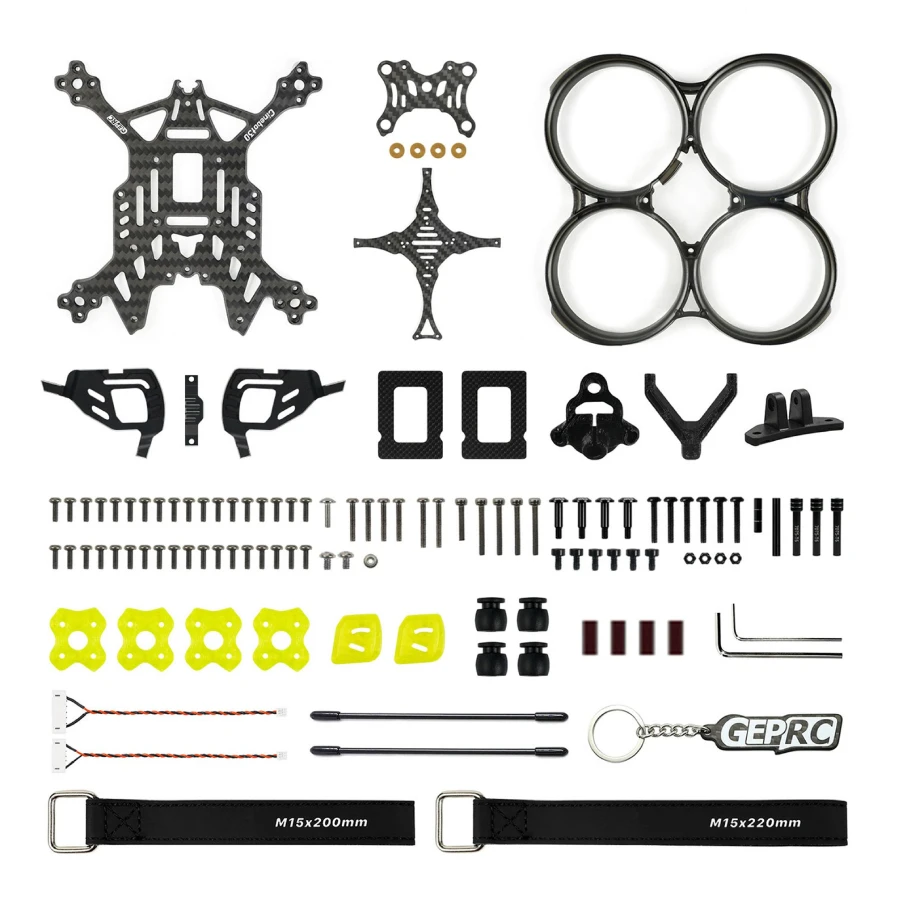

Includes:

– 1x GEPRC GEP-CT30 O3 Frame
