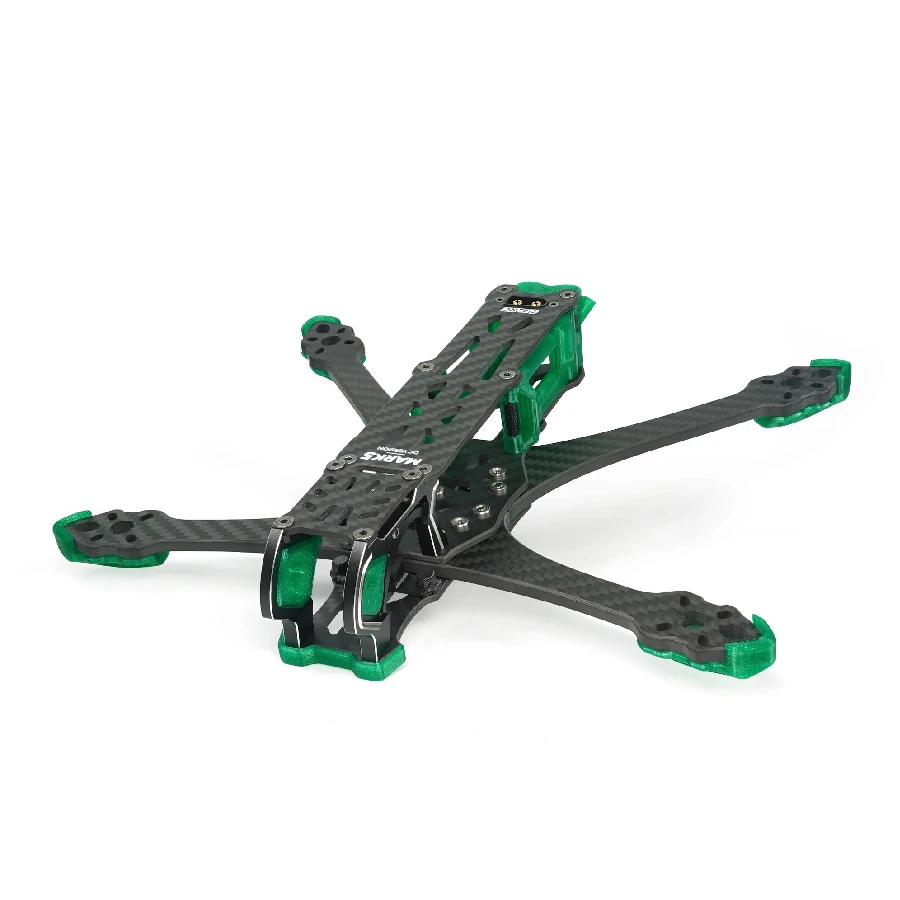

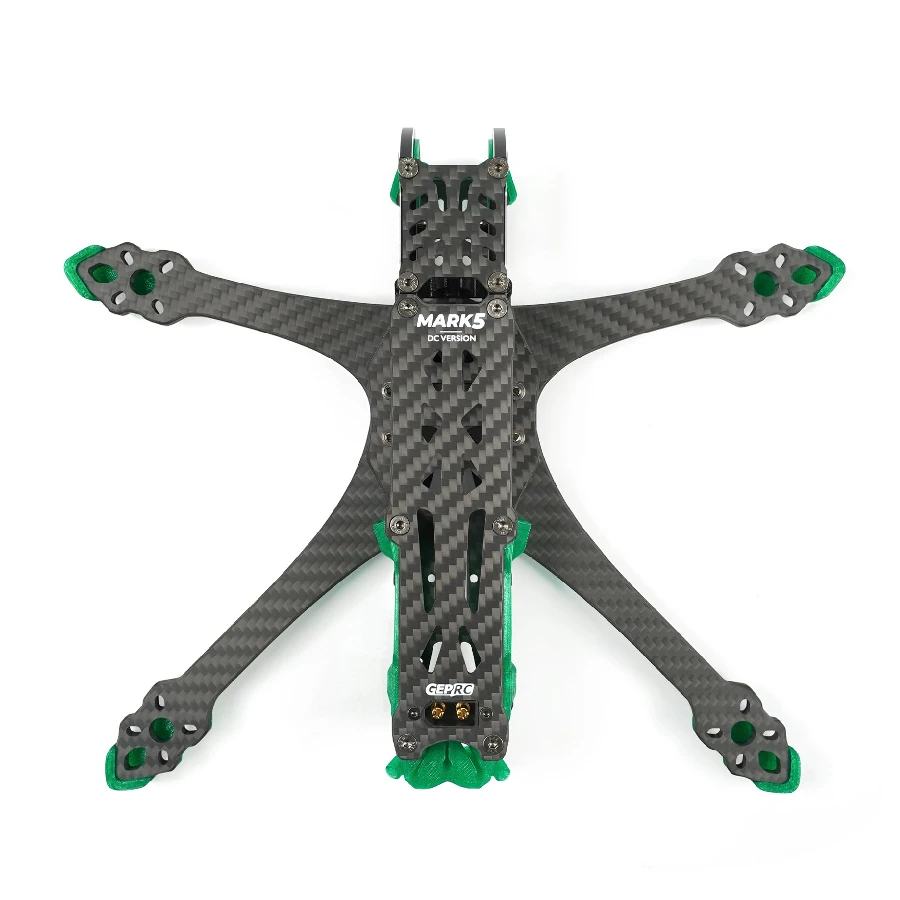

GEPRC GEP-MK5D DJI O3 DeadCat 5″ Frame

Overview:

The GEPRC GEP-MK5D frame includes upgrades necessary to support the DJI O3 Air Unit. The GEPRC team is also upgrading and optimizing the overall performance on the basis of MARK5. At the same time, it will be equipped with DJI O3 air unit to design the new MARK5 O3 version, the versions are MK5D and MK5X respectively.

The newly upgraded camera aluminum alloy side plate, 7075-T6 aluminum alloy is strong and durable. It designed around the new DJI O3 air unit camera with a field of view (FOV) of 155°, and can support up to 4K 60FPS recording. The DC structure has a wide and unobstructed viewing angle during flight, which is suitable for O3 onboard video recording and direct output. We also specially designed TPU soft printing parts for the O3 VTX module, and equipped with air inlet cooling port, which is conducive to adequate heat dissipation at the air unit. GEP-MK5 O3 Pro version is shipped with two different camera mounts, which can be mounted with a full range of GoPro action cameras, as well as Naked GoPro 8/10, Insta 360 GO2 and Caddx Peanut, etc. to record beautiful moments for your flight.

This time the MARK5 O3 will broaden your horizons, fly beyond what you have ever seen and bring more possibilities for FPV video creation.

Features:
– Upgraded lens aluminum alloy side plate, durable and more visual impact.
– Developed specifically for freestyle with squashed X arm design.
– Unique frame shock absorption design, less vibration, safe and stable electronic system operating environment.
– With independent capacitor and buzzer cabin, the operating environment of the whole drone is extremely stable, no shaking, no jitter.
– Two kinds of 3D printing camera mounts are designed, which can be mounted with a full range of GoPro cameras, as well as Naked GoPro 8, Insta 360 GO2 and Caddx Peanut cameras. The shooting effect is stable and clear.
– Compatible motor mounting holes, support the installation of motors with 16x16mm and 19x19mm holes.
– Add coral orange and emerald green colors to the O3 version to add more colors to your flight.
– The DC structure is suitable for O3 onboard recording when no propeller in view during flight, while the X structure is more suitable for freestyle when the propeller is slightly visible during O3 onboard recording.

Specifications:

– Wheelbase: 230mm
– Top plate: 2.5mm
– Bottom plate: 2.5mm
– Arm plate: 5mm
– FC mounting holes: 30.5mm x 30.5mm
– Camera installation space: 20mm
– Suitable propeller size: 5″propeller
– Dimension: 208mm x 193mm x 42mm
– Standard Version Weight: 168.0g
– Pro Version Weight: 197.0g

Includes:

– 1x GEPRC GEP-MK5D DJI O3 DeadCat 5″ Frame
