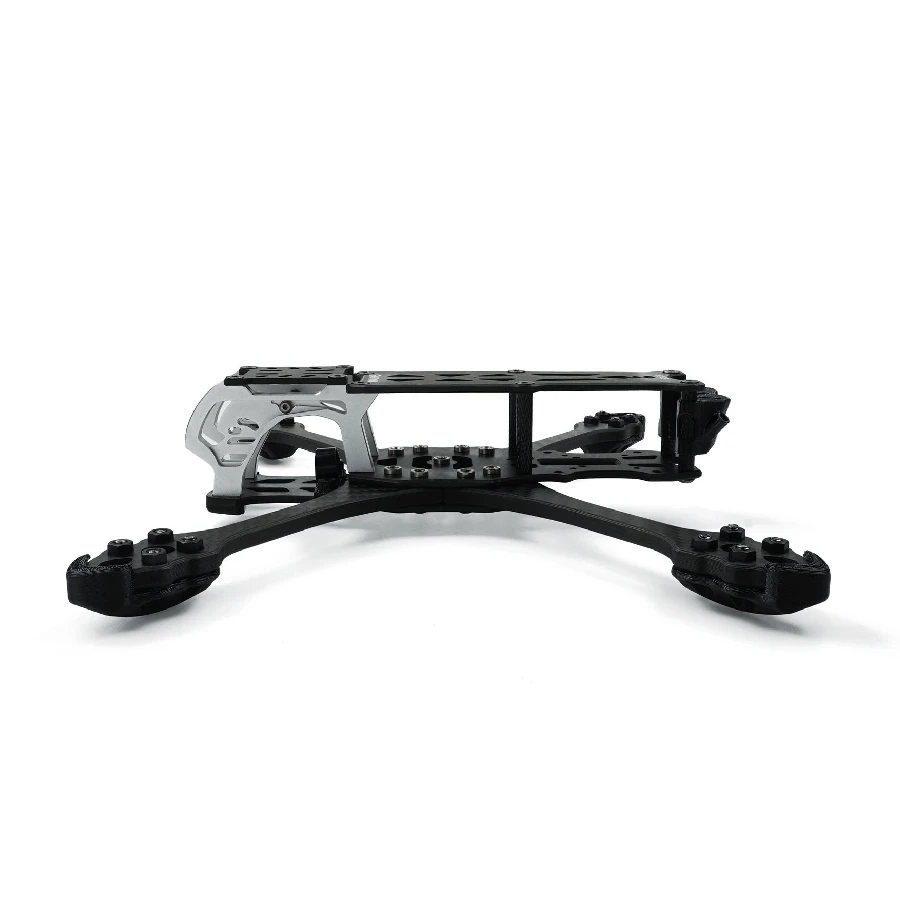

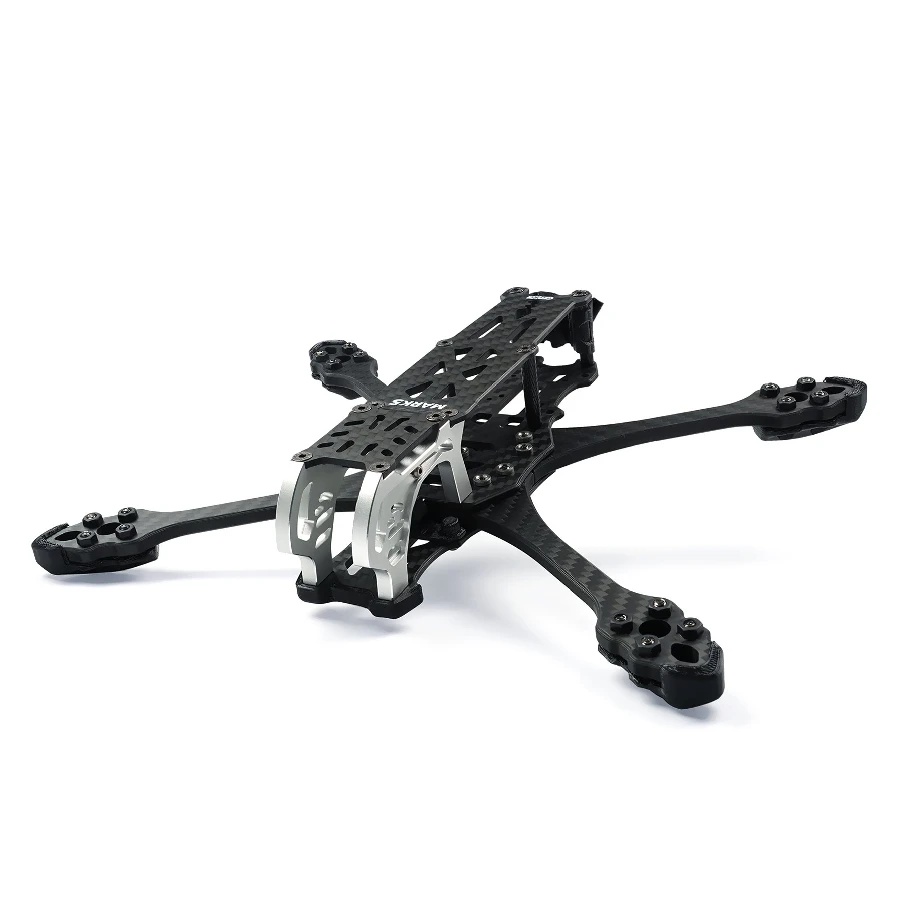

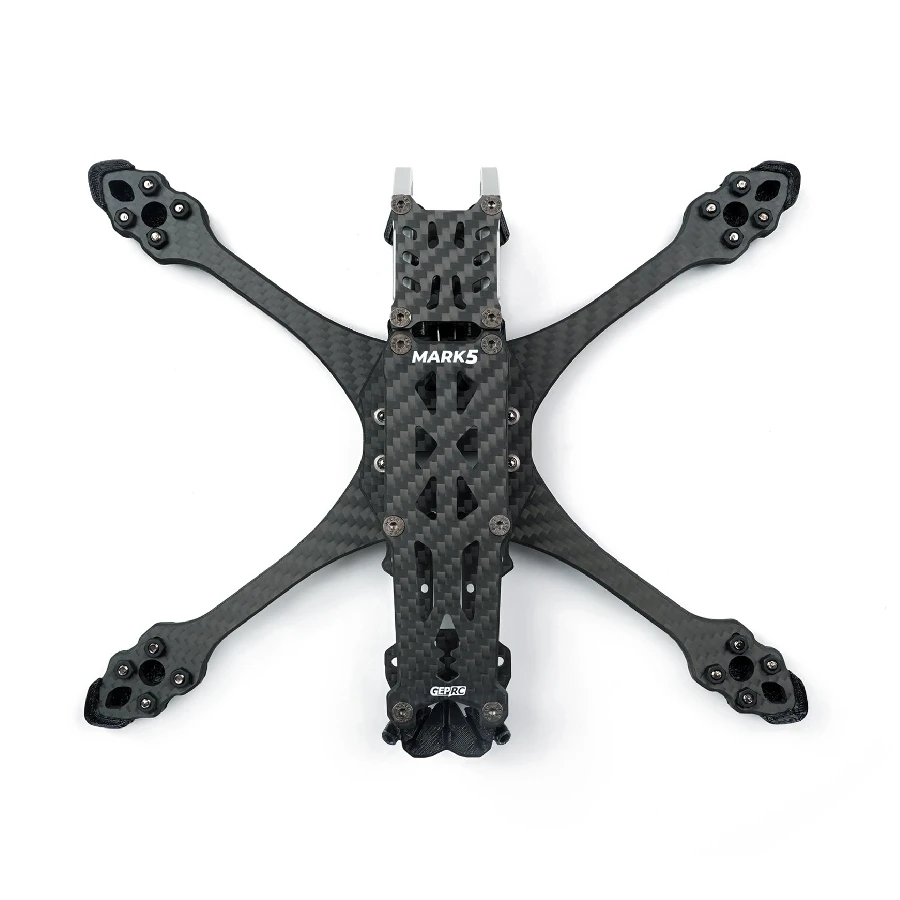

GEPRC MK5 Mark 5 Pro 5″ Frame

Overview:

The GEPRC MK5 Mark 5 Pro freestyle frame MARK5 frame is compatible with DJI AIR UNIT, CADDX VISTA and Analog VTXs.

MARK5 frame was developed specifically for freestyle with squashed X arm design. Unique shock absorbing structure design, less vibrations and resonance and to provide a stable operating environment for the electronic system. Aluminum alloy side plates not only look stunning,but also reduce weight and add more endurance.

MARK5 frame supports the mainstream 30.5mm x 30.5mm Flight Controller. Pre-set two sets of installation holes, Were 30.5mm x 30.5mm and 20mm x 20mm Fixing holes respectively. The subsidiary printing parts can also be directly installed with DJI Air Unit .

Strong power system, 16mm x 16mm / 19mm x 19mm motor holes will allow you to install larger 21-22-23-25 series motors, with a 5-inch propellers, with a strong power output.

After perfectly continuous development, testing and tuning by GEPRC R&D team, we are proud to say, by far, MARK5 frame is one of the best freestyle quadcopter frames on the market.

We’ve been pursuing for lighter weight, better flying experience, and more functionality for all our products!

The MARK5 Pro version includes two different 3D printed mounts which can be installed with GoPro /Naked GoPro8/Insta 360 GO2 and Caddx Peanut cameras to record every moment of Freestyle.

Features:
– Aluminum alloy side plates not only look stunning, but reduce weight and add more endurance.
– Developed specifically for freestyle with squashed X arm design.
– The installation hole of VTX is compatible with DJI Air Unit and VISTA, while maintaining the 30.5*30.5 analog VTX installation hole.
– Support the installation of 19-20mm width lens,you can directly install DJI original lens.
– Unique shock absorbing structure design, less vibrations and resonance.
– Specially designed independent capacitor and buzzer compartment for better performance and shaking reduction.
– Compatibility motor hole design, support the installation of 16x16mm and 19x19mm motors.
– Designed two different 3D printed parts bases, which can be installed with GoPro ,Naked GoPro8, Insta 360 GO2 and Caddx Peanut cameras,shooting is stable and clear. (Pro version comes with delivery)
– MARK5 frame kit is ideal for freestyle flying and bando-bashing resistant.

Specifications:

– Model: GEP-MK5
– Motor to motor: 225mm
– Top plate: 2.5mm
– Bottom plate: 2.5mm
– Arm plate: 5.0mm
– FC mounting holes: 30.5mm x 30.5mm
– VTX mounting holes: 30.5mm x 30.5mm / 20mm x 20mm
– Motor mounting holes: 16mm x 16mm / 19mm x 19mm
– Camera installation space: 19-20mm
– Suitable propeller size: 5″propeller
– Dimension: 214mm x 168mm x 42mm
– Weight: 130.0g

Includes:

– 1x GEPRC MK5 Mark 5 Pro 5″ Frame (With 3D printed parts)
