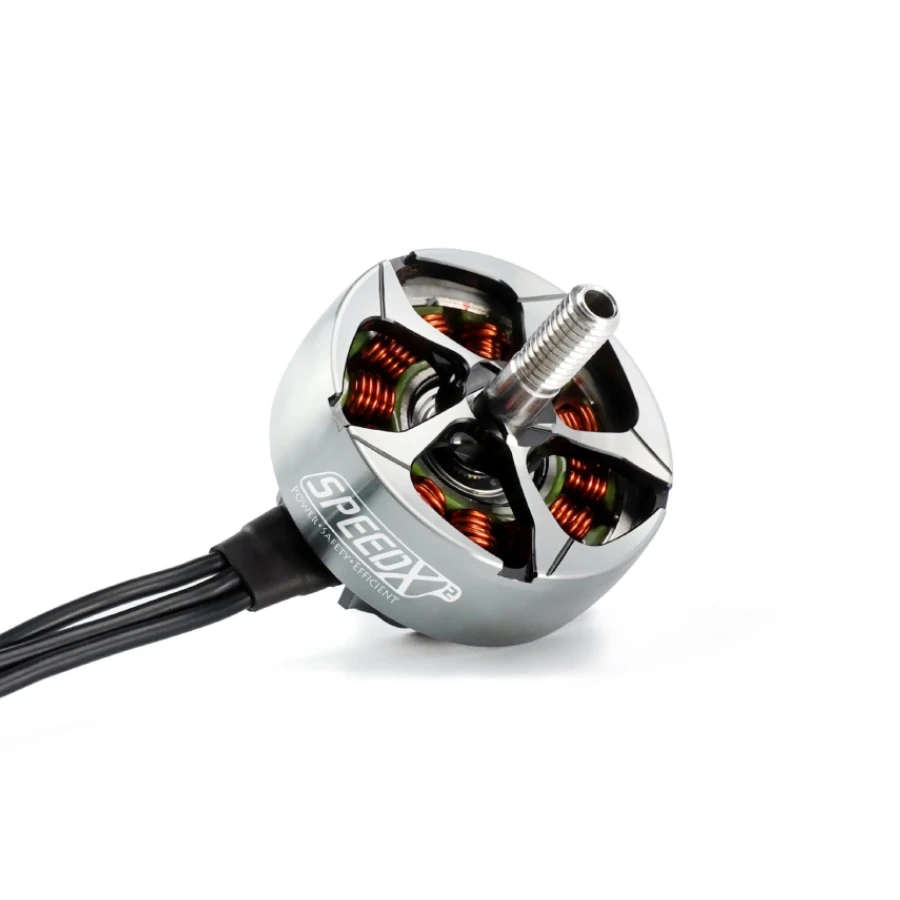

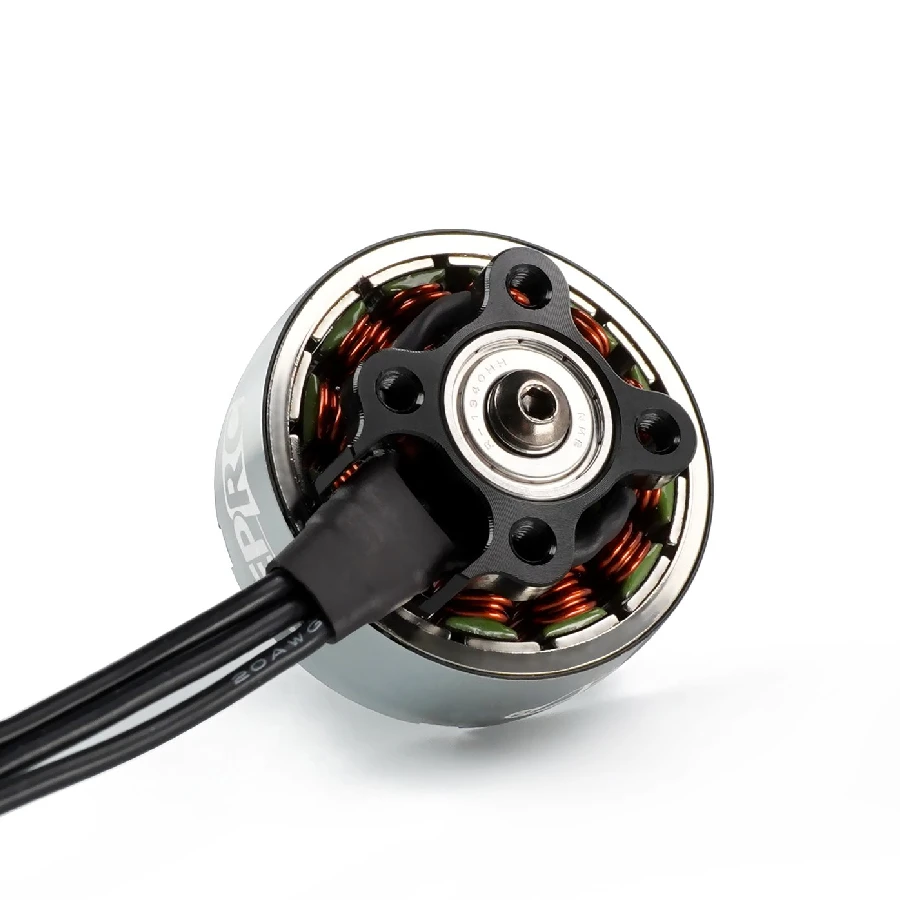

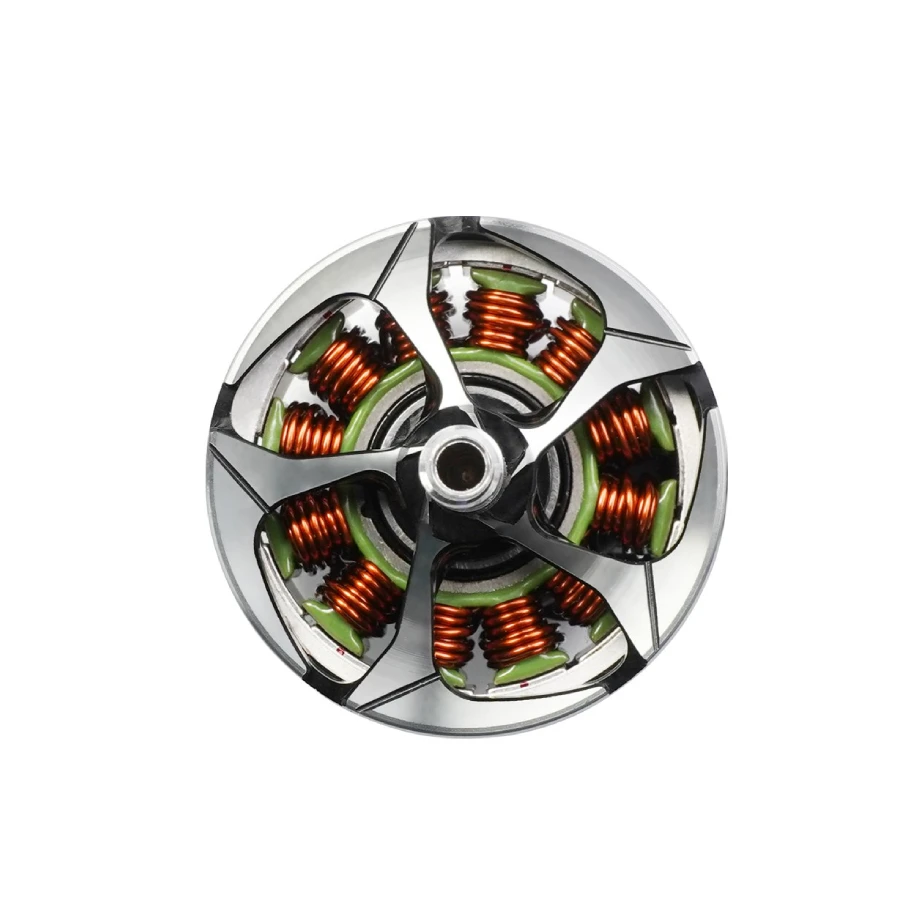

GEPRC SpeedX2 2806.5 1350KV Motor

Overview:

The GEPRC SpeedX2 2806.5 1350KV is the second generation motor from GEPRC. The motor has good heat dissipation and its magnets allow for linear,delicate throttle control.

Features:
– Ultra-light weight, only 48.0g.
– Excellent magnetic design, stable power output.
– Strong power and prompt response speed.
– Delicate and precise throttle control, smooth flight experience.
– Good structural design with high strength shell and excellent heat dissipation efficiency.
– New optimized design for 6-7 inch propellers, perfectly suitable for 6-7 inch long range FPV models.

Specifications:
– KV: 1350KV
– Configuration: 12N14P
– Magnet: N52H ARC
– Stator Diameter: 28mm
– Stator Length: 6.5mm
– Shaft Diameter: Φ4.0mm
– Dimension: Φ34.8mm*33.9mm
– Lead wire size: 20#AWG 250mm
– Idle current (10V) : 1.25A
– No. of Cells (LiPo) : 4-6S
– Max Continuous Power(W) (5S): 960
– Max Current (5S) : 40A
– Internal Resistance: 58mΩ
– Mounting Holes: 19x19mm
– Weight: 48.0g

Includes:

– 1x GEPRC SpeedX2 2806.5 1350KV Motor
– Accessories (Screws)
