Overview:

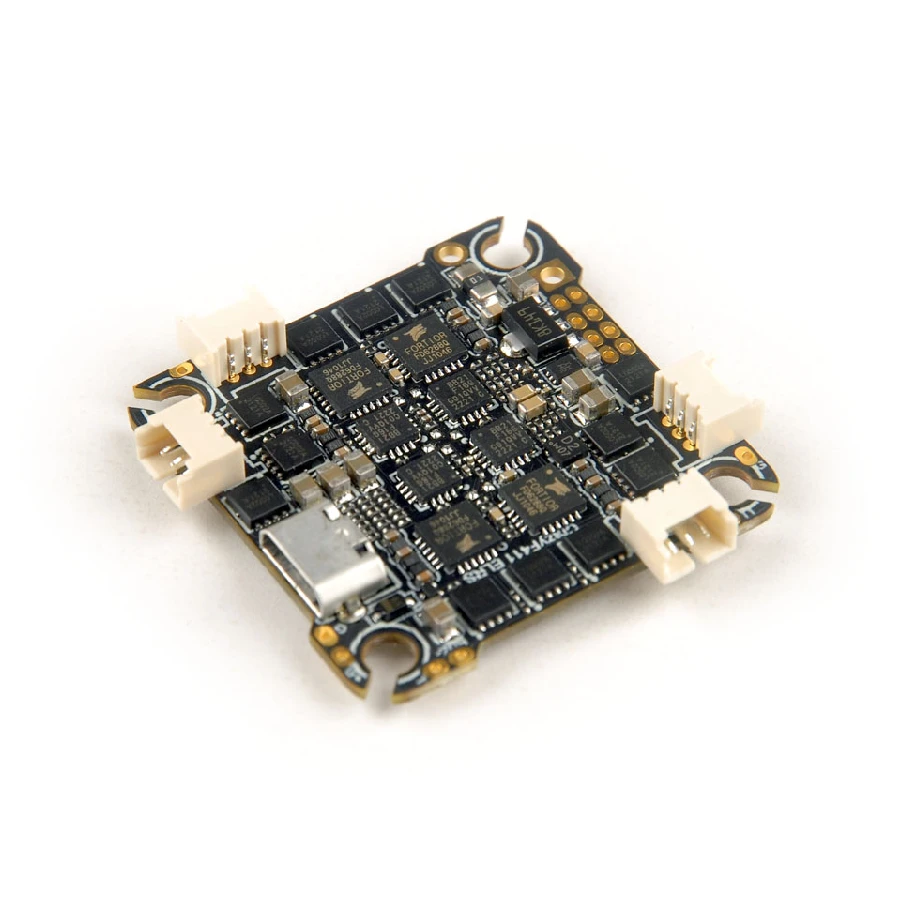

The Happymodel CrazyF411 ELRS AIO board ships with an integrated UART based ELRS receiver and 20A 4in1 ESC – all on one board. The UART based ELRS receiver allows more convenient flashing then an SPI based receiver as its physically seperate on the board. It ELRS firmware can be upgraded over WIFI or via Betaflight pass-through. The 20A ESCS are most suited to toothpick style quads, this board shouldnt be chosen for a larger quad build where more appropriate high amperage ESCs should be chosen.

FC Specifications:

– MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
– Sensor: ICM42688P or BMI270 (SPI Control)
– Mount pattern: 25.5×25.5 M2
– Size:32*28*9mm
– Power supply: 2-4S Lipo battery
– Built-in 20A Blheli_s ESC each
– Built-in Betaflight OSD(SPI Control)
– Built-in UART ExpressLRS 2.4GHz receiver
– Built-in 5V 1.5A BEC
– Flight controller firmware target: CRAZYBEEF4DX

Onboard 4in1 ESC:

– MCU upgraded to EFM8BB21
– Power supply: 2-4S LiPo/LiPo HV (7v/17v)
– Currents: 20A continuous peak 25A (5 seconds)
– Support BLHeliSuite programmable
– Factory firmware: Bluejay 0.18.1Firmware target: F_H_40_48_v0.18.1
– Default protocol: DSHOT150/DSHOT300/DSHOT600

Onboard UART ExpressLRS 2.4GHz Receiver:

– Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
– RF Frequency: 2.4GHzAntenna plug: IPEX
– Telemetry output Power: <12dBm
– Receiver protocol: CRSF
– Default firmware version: ExpressLRS V3.0.1

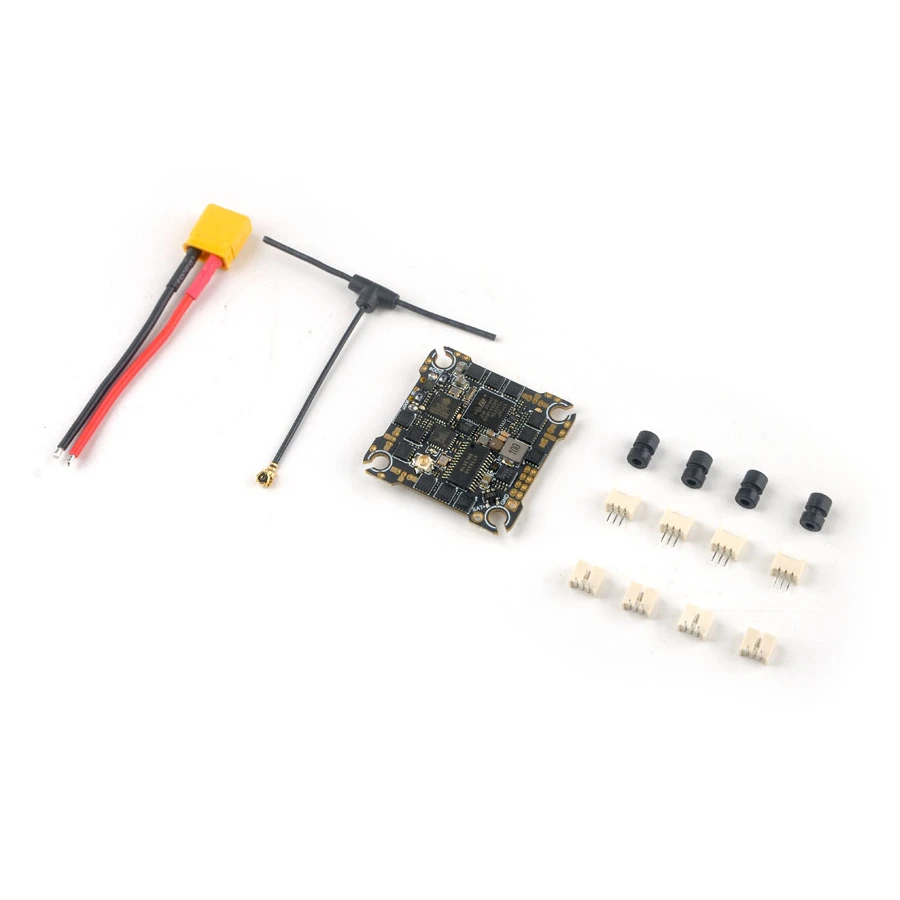

Included:

– Happymodel CrazyF411 AIO (ELRS)
– Accessories
