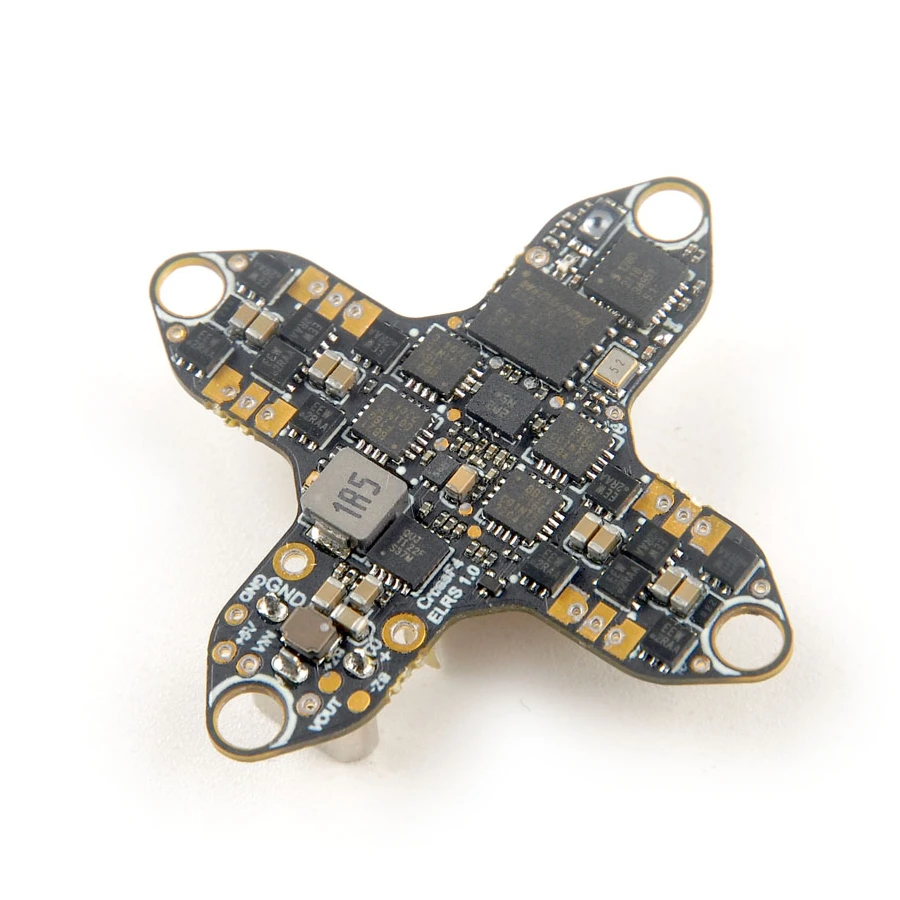

Happymodel CrossF4 ELRS AIO

Overview:

The Happymodel CrossF4 ELRS flight controller comes with integrated UART 2.4GHz ExpressLRS receiver and 5A Blheli_s 4in1 ESC which supports 1-2s. The board is ideally suited to Tinywhoops. The 2.4GHz ExpressLRS receiver is equipped with the SX1280 radio frequency chip with high sensitivity, high packet rate and low latency, this flight controller is the one that all Race/Freestyle pilots needed. The built-in ELRS receiver is UART type (rather than SPI) which makes it faster and allows firmware upgrades just like the Happymodel EP1, via betaflight pass-through or WIFI. The default firmware is ELRS V3.0.1.

Flight controller
– Firmware target: CRAZYBEEF4DX4.3.2
– MCU:STM32F411CEU6 (100MHz, 512K FLASH)
– Sensor: BMI270(SPI connection)
– Power supply: 1-2S Lipo Lihv battery input (DC 2.8V~8.7V)
– Built-in 5A(each) Blheli_S 4in1 ESC Dshot300 ready
– Built-in Betaflight OSD(SPI Control)
– Built-in UART ExpressLRS 2.4Ghz receiver(Default firmware ExpressLRS v3.0.1)
– Built-in 5V 1A BEC
– Built-in voltage detection and current sensor
– Built-in Onboard flash 16Mb for Blackbox

Onboard 4in1 ESC
– MCU upgraded to EFM8BB21
– Power supply: 1-2S LiPo/LiPo HV (2.8v~8.7v)
– Currents: 5A continuous peak 6A (5 seconds)
– Support BLHeliSuite programmable
– Default Factory firmware: S_H_50_REV16_8.HEX
– Support ESC Protocol: DSHOT150/DSHOT300/DSHOT600

Onboard UART ExpressLRS 2.4GHz Receiver
– Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
– RF Frequency: 2.4GHz
– Antenna: enameled copper wire 31mm length
– Telemetry output Power: <12dBm
– Receiver protocol: CRSF
– Default firmware version: ExpressLRS V3.0.1
– The same hardware with Happymodel EP1
– Could update firmware via ExpressLRS configurator

Included:

– Happymodel CrossF4 ELRS AIO
– Accessories
