Overview:

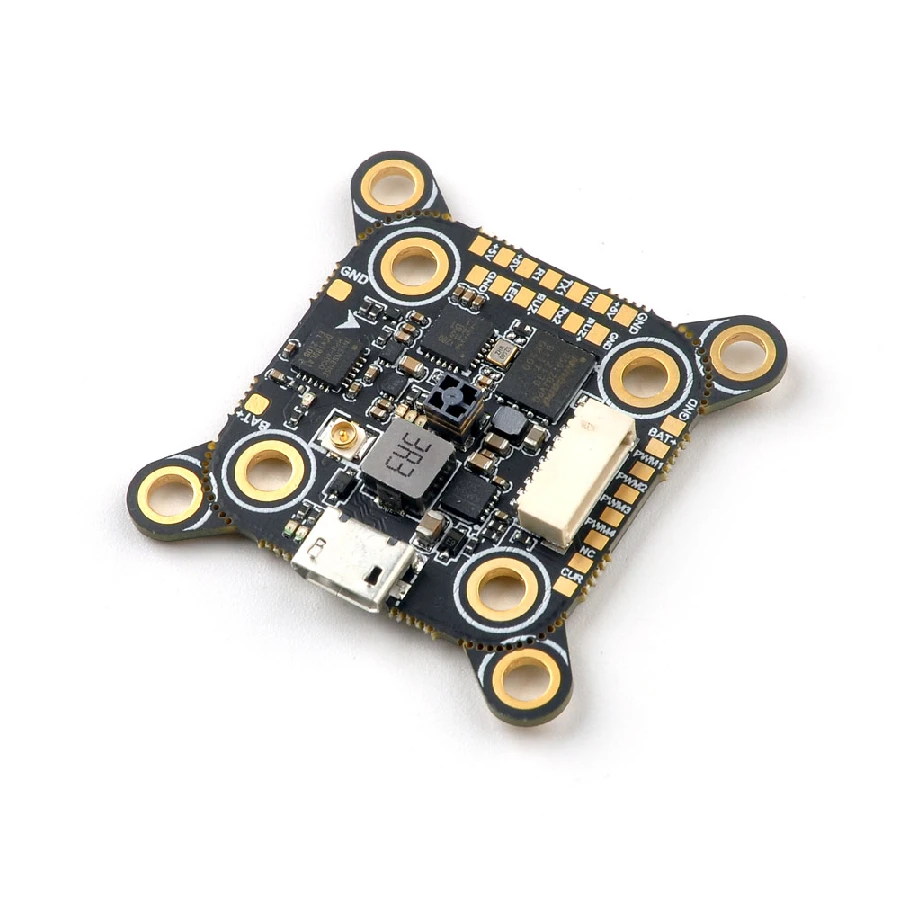

The Happymodel Pancake AIO flight controller, receiver and VTX includes a 400mW analogue OpenVTX, SPI ELRS receiver and F4 flight controller – all in one.

FC Specifications:

– Firmware Target: CRAZYBEEF4SX1280
– MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
– Sensor: MPU-6000 or ICM20689 or BMI270(SPI connection)
– Mount hole type: 20×20 or 35.5×35.5
– Power supply: 2-6S battery input
– Built-in Betaflight OSD(SPI Control)
– Built-in 5.8G OpenVTX 0mw~400mw
– Built-in ExpressLRS 2.4G ELRS V2.0 firmware compatible

Onboard SPI ExpressLRS 2.4GHz Receiver:

– Packet Rate option: 50Hz/150Hz/250Hz/500Hz
– Support ExpressLRS v2.0 or latest
– RF Frequency: 2.4GHz
– Antenna : SMD ceramic antenna
– Telemetry output Power: <12dBm
– Receiver protocol: SPI ExpressLRS
– Compatible with ExpressLRS V2.0 TX Module
– Couldn’t flash separately ExpressLRS firmware

Onboard 5.8GHz VTX:
– Firmware version: OPENVTX
– Smartaudio v2.1
– PIT Mode support
– RCE Mode support
– Channels:48ch
– Transmitting Power: 0/RCE/25mw/100mw/400mw
– Power supply: DC 5V
– Current (5v): <650ma (400mw)
– Antenna connector: U.FL

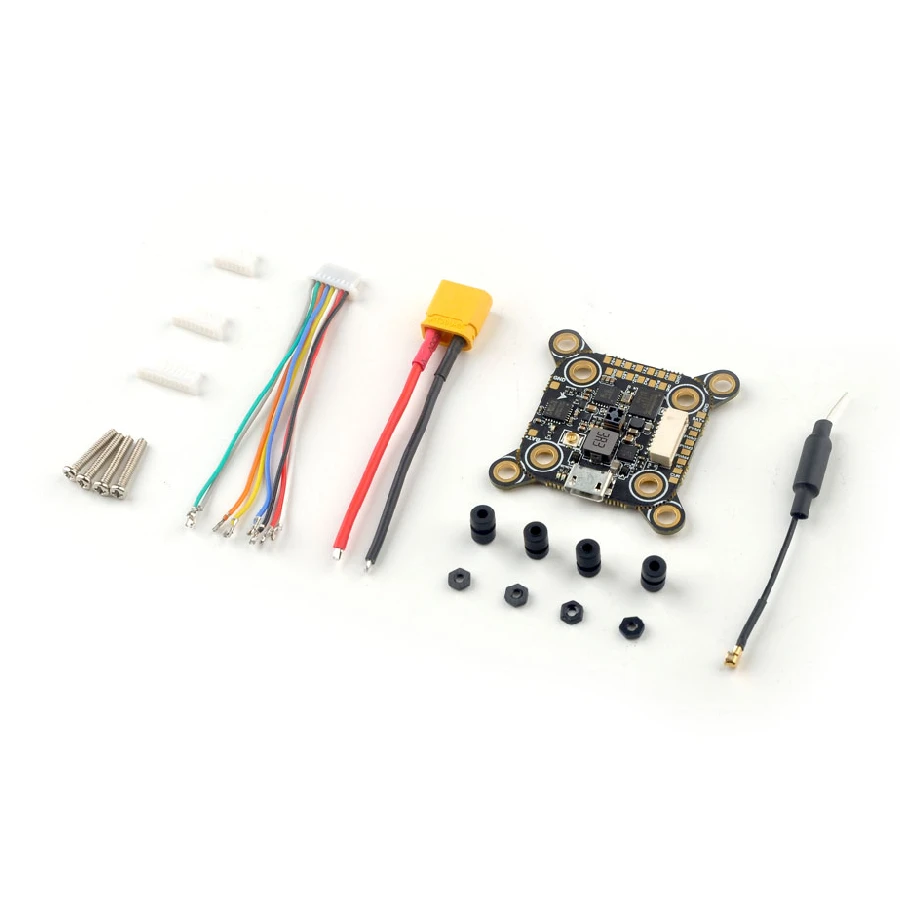

Included:

– Happymodel Pancake AIO ELRS + VTX
– Accessories
