Happymodel Superbee F4 Lite AIO (ELRS)

Original price was: $41.45.Current price is: $29.02.

Quick responses, top-notch service.

Quality You Can Count On

Nature-friendly materials, for a better planet.

Efficiency meets excellence in customer care.

Overview:

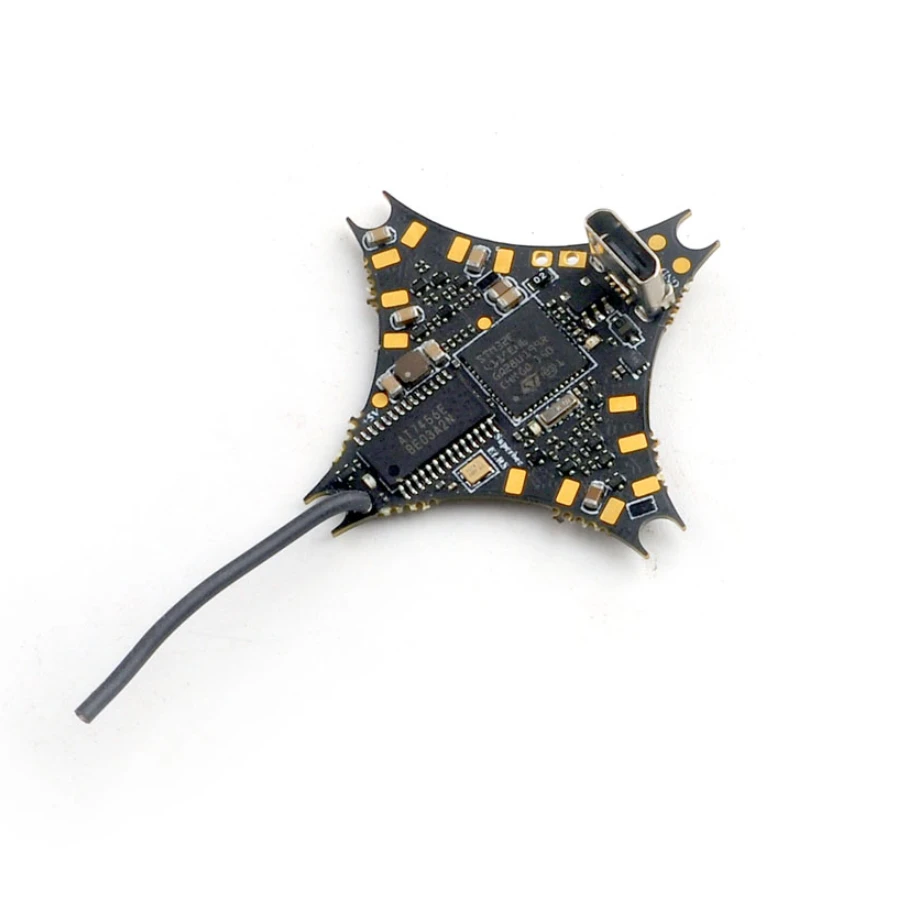

The Happymodel SuperBee F4 Lite AIO is an all-in-one flight controller, 4in1 ESC and ELRS receiver flight. Its rated for 1S so ideall for tiny whoops. The ESC outputs are rated at 5A and run BLHeli_S firmware. The onboard ELRS receiver is 2.4GHz compatible and can bind to ELRS V2.

FC Specifications:
– SPI ELRS version Firmware target: CrazybeeF4SX1280
– SPI FRSKY version Firmware target: CrazybeeF4FR
– MCU:STM32F411CEU6 (100MHz, 512K FLASH)
– Sensor: MPU-6000 or ICM20689 or BMI270(SPI connection)
– Power supply: 1S Lipo Lihv battery input (DC 2.8V~4.35V)
– Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
– Built-in Betaflight OSD(SPI Control)
– Built-in SPI Frsky/ExpressLRS receiver
– Built-in 5V 1A BEC
– Built-in voltage detection

4in1 ESC Specifications:
– MCU upgraded to EFM8BB21
– Power supply: 1S LiPo/LiPo HV (2.8v~4.35v)
– Currents: 5A continuous peak 6A (5 seconds)
– Support BLHeliSuite programmable
– Factory firmware: S_H_50_REV16_8.HEX
– Default protocol: DSHOT150/DSHOT300/DSHOT600

Onboard SPI ELRS Receiver Specifications:
– Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
– RF Frequency: 2.4GHzAntenna plug: IPEX
– Telemetry output Power: <12dBm
– Receiver protocol: SPI ExpressLRS
– Could bind with ELRS V2.0 firmware TX module

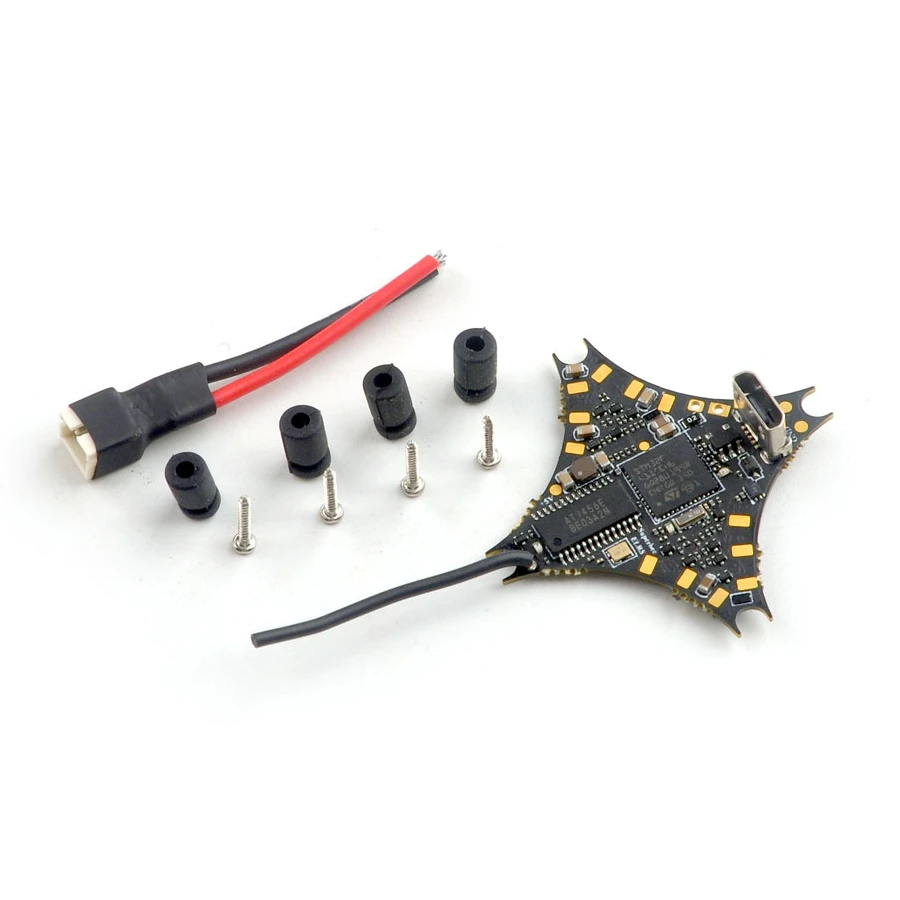

Included:

– Happymodel Superbee F4 Lite Flight Controller (ELRS)
– Accessories
