Overview:

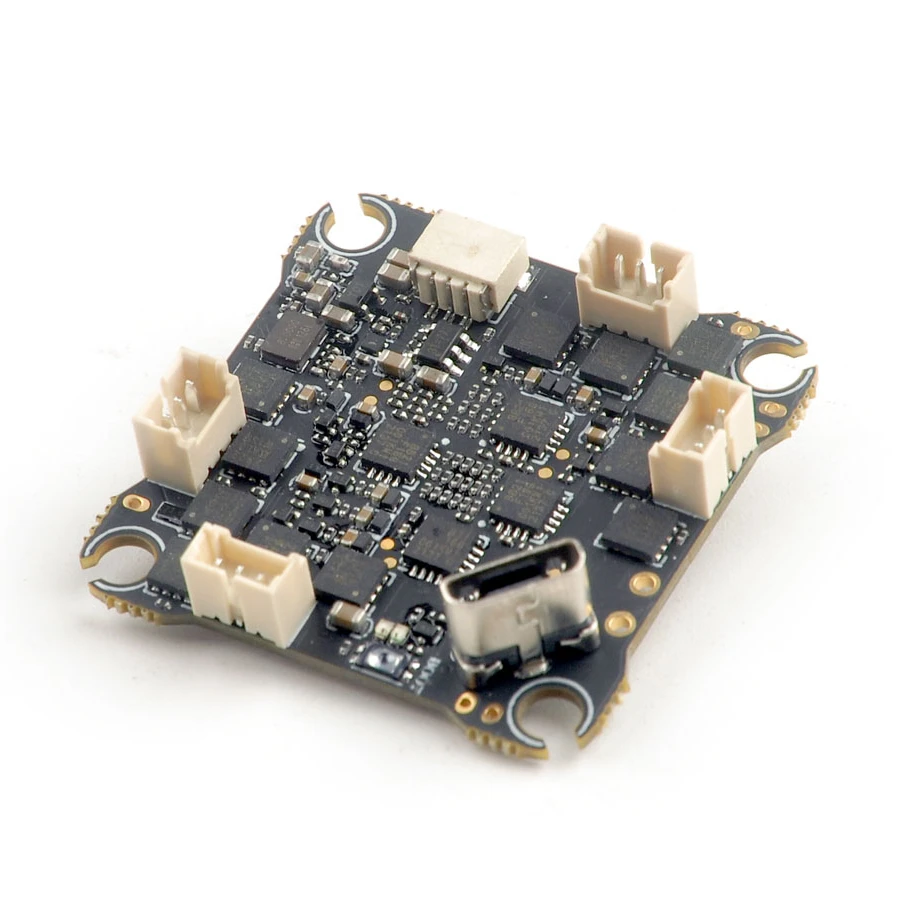

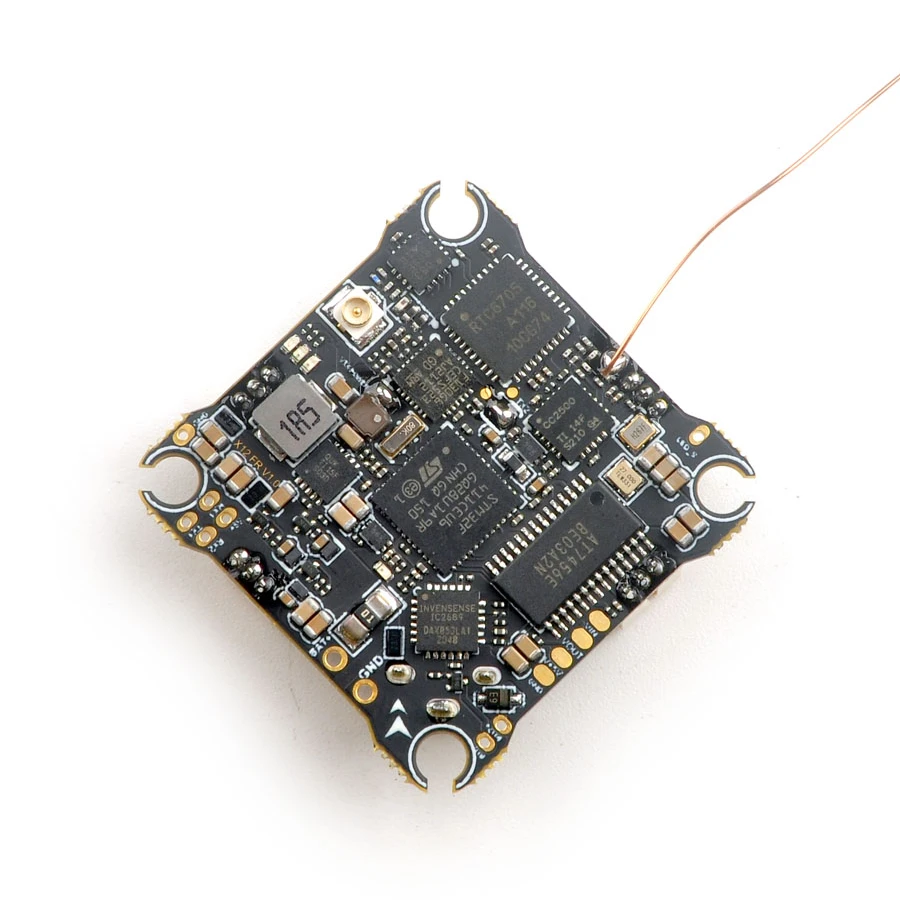

The Happymodel X12 F4 AIO is a 5in1 F4 flight controller with integrated SPI 2.4GHz FrSky D8 compatible receiver. The flight controller integrates a DShot protocol 4-in-1 ESC, 5.8GHz 40ch video transmitter and Betaflight OSD. Ultra-small size and ultra-stable remote control range can improve the range of the original SPI receiver. It is suitable for use in Tiny whoop Race or Toothpick Freestyle and can be used with 1S or 2S LiPo or LiHV.

FC Specifications:

– MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
– Sensor: ICM20689 (SPI connection)
– Original whoop size compatible (25.5mm x 25.5mm mounting)
– Power supply: 1-2S battery input (DC 2.9V-8.7V)
– Built-in 12A(each) Blheli_S 4in1 ESC Dshot600 ready
– Built-in Betaflight OSD(SPI Control)
– Built-in 5.8G VTX 0mw~400mw
– Onboard SPI FrSky D8 compatible RX

4in1 Specifications:
– Power supply: 1-2S LiPo/LiPo HV
– Current: 12A continuous peak 15A (3 seconds)
– Support BLHeliSuite programmable
– Factory firmware: Z_H_30_REV16_7.HEX
– Default protocol: DSHOT300
– Support Bluejay firmware
– When use Blujay firmware with 48khz, should set startup power to 1100/1200

Onboard 5.8GHz VTX:
– Output power: 25mw~400mw switchable
– Frequency: 40CH
– Input voltage: 3.3V 5.5V
– Current consumption: 300mA(type)
– Frequency: 5.8GHz 5 bands 40 channels(include Race band) Smartaudio ready

Included:

– Happymodel X12 F4 5in1 AIO (FrSky)
– Accessories
