Happymodel X12 Lite Flight Controller (ELRS)

Original price was: $59.95.Current price is: $41.97.

Quick responses, top-notch service.

Quality You Can Count On

Nature-friendly materials, for a better planet.

Efficiency meets excellence in customer care.

Overview:

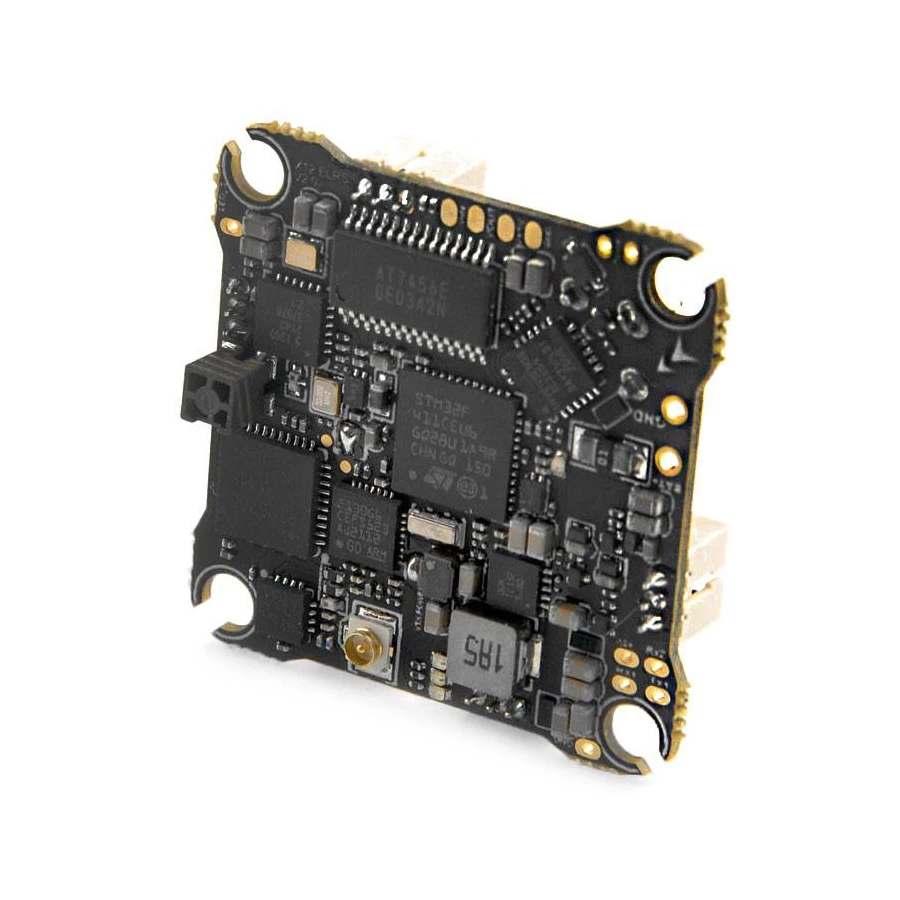

The Happymodel X12 Lite V1 Flight Controller comes with an onboard SPI ELRS receiver which supports ELRS TX module 2.0 firmware. This “lite” version doesn’t include an onboard VTX so is best used for HD builds.

FC Specifications:

– X12 LITE V1.0 flight controller built-in ELRS 2.4G receiver Target:CRAZYBEEF4SX1280
– MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
– Sensor: ICM20689 or BMI270(SPI connection)
– Mount hole size: 25.5mm*25.5mm
– Power supply: 1-2S battery input (DC 2.9V-8.7V)
– Built-in 12A(each) Blheli_S 4in1 ESC
– Built-in Betaflight OSD(SPI Control)
– No onboard vtx ,best for HD build
– Built-in ExpressLRS 2.4G
– Built-in voltage meter sensor , voltage meter scale 110
– Built-in current meter sensor, current meter scale 470″

Included:

– Happymodel X12 Lite Flight Controller (ELRS)
– Accessories
