Overview:

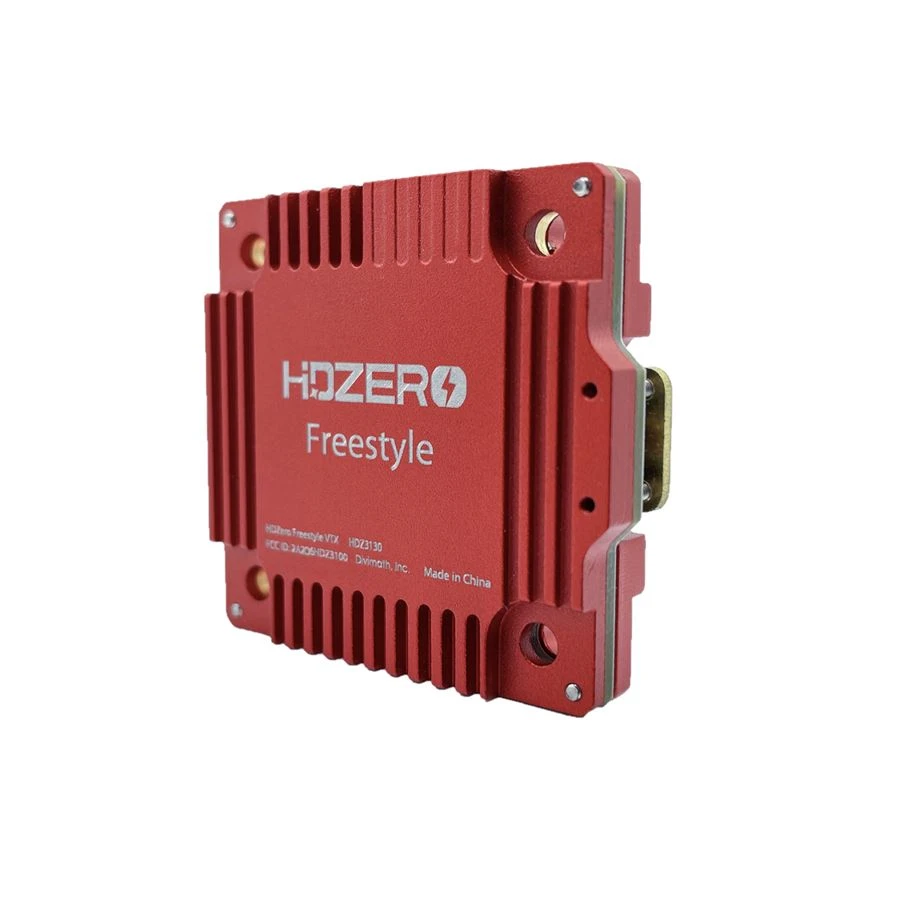

The HDZero Freestyle VTX is a digital HD 720p 60fps 5.8GHZ video transmitter.
The power input range is 2S–6S. Though the VTX integrates a surge protection circuit, a large capacitor (450+uF) parallel with battery leads is mandatory to smooth the power supply of the whole quad.
The VTX also includes an U.FL RHCP antenna.
** HobbyRC are the exclusive UK stockists for the HDZero product line https://www.hd-zero.com/dealers. HDZero won’t provide support for grey imported products sold by other UK retailers. We are supporting HDZero in a range of ways to help the product succeed **
Important Notes:
Use 2S-6S VBAT or FC with built-in BEC:
The Freestyle VTX consumes up to 15W. If it is connected with FC that has built-in BEC output, make sure the BEC has enough current. For example, the BEC has 10V, it needs minimum 1.5A current output.
Removing the heat sink is not recommended because it is part of the design.
Specifications:
– Manufacturer: Divimath, Inc
– Model: HDZero Freestyle VTX
– Weight: 28 g
– Dimensions: 40x42x10mm
– Operating Frequency: 5.725-5.850GHz
– Transmitter Power: 25mW, 200mW (Out of the box)
– Mounting Pattern: 30x30mm M3 holes
– Antenna Interface: Secured U.FL
– Video In: Secured MIPI
– SmartAudio: Yes
– MSP Canvas Mode: Yes
– Input Power: 2S-6S
– Operating Temperature: 32˚F-104 ˚F (0˚-40˚C)
– Power Consumption:6-15W
Included:
1x HDZero Freestyle Video Transmitter
RHCP u.FL Antenna
** HDZero Warranty Terms: DOA applications will only be considered within the first 7 days after purchase. To qualify there must be no signs of physical damage to the board and the fault MUST go through fault finding with HDZero support, you will be required to ship the DOA board back to us. IF they conclude its DOA you will be offered a replacement. IF they conclude it’s not DOA, then in most circumstances you will be offered a 50% discount on a new unit. NO further warranty is offered on these products, please purchase only if you agree to the above terms as set by the manufacturer. **
