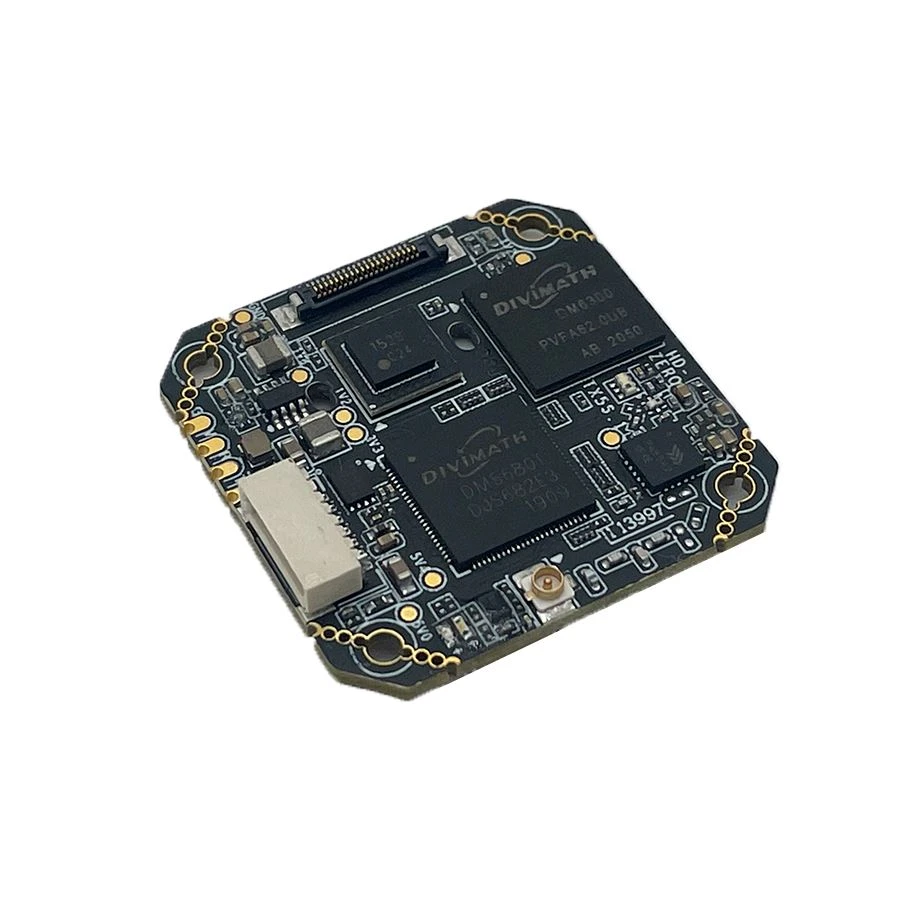

HDZero Whoop (TX5S.1) Video Transmitter

Overview:

The HDZero Whoop VTX is a digital HD 720p 60fps video transmitter capable of delivering up to 200mw on 5.8GHz. It works with the Shark Byte RX5.1 goggle module to transmit video, and with a remote controller to wirelessly control the parameters for the transmitter and camera.

** HobbyRC are the exclusive UK stockists for the HDZero product line https://www.hd-zero.com/dealers. HDZero won’t provide support for grey imported products sold by other UK retailers. We are supporting HDZero in a range of ways to help the product succeed  **

** Antenna NOT included **

Specifications:

– Model: HDZero Whoop (TX5S.1)
– SKU: HDZ3110
– Frequency: 5.8G
– Resolution Default: 1280*720@60fps
– RF power: 25mw/200mw
– RF Connector: U.FL
– Interface: 4 lane MIPI CSI YUV422
– Video Connector: 20 Position 0.30mm Pitch
– Size: 32.5mm x 32.5mm x 7mm
– Weight: 5.4g
– Power: 410mA@12V
– power input: 7V-26V(2S-6S)
– Mounting: 25.5mm*25.5mm,M2 clearance hole

Included:
1x HDZero Whoop VTX (For Shark Byte/HDZero)

** HDZero Warranty Terms: DOA applications will only be considered within the first 7 days after purchase. To qualify there must be no signs of physical damage to the board and the fault MUST go through fault finding with HDZero support, you will be required to ship the DOA board back to us. IF they conclude its DOA you will be offered a replacement. IF they conclude it’s not DOA, then in most circumstances you will be offered a 50% discount on a new unit. NO further warranty is offered on these products, please purchase only if you agree to the above terms as set by the manufacturer. **
