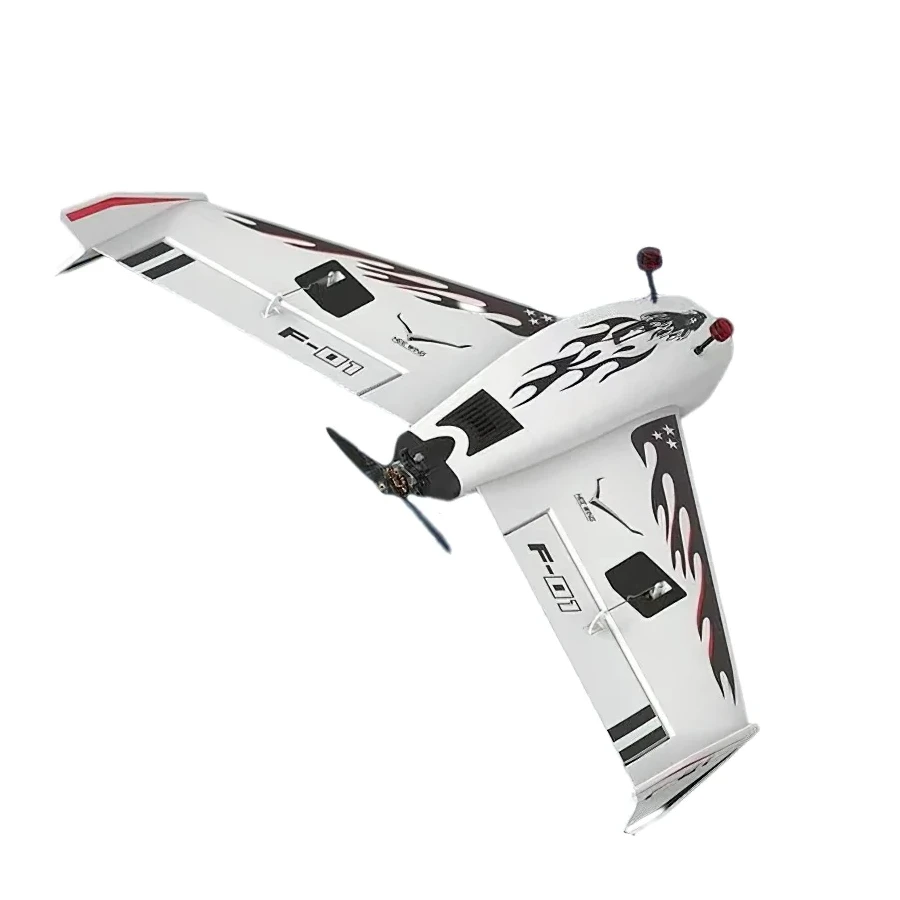

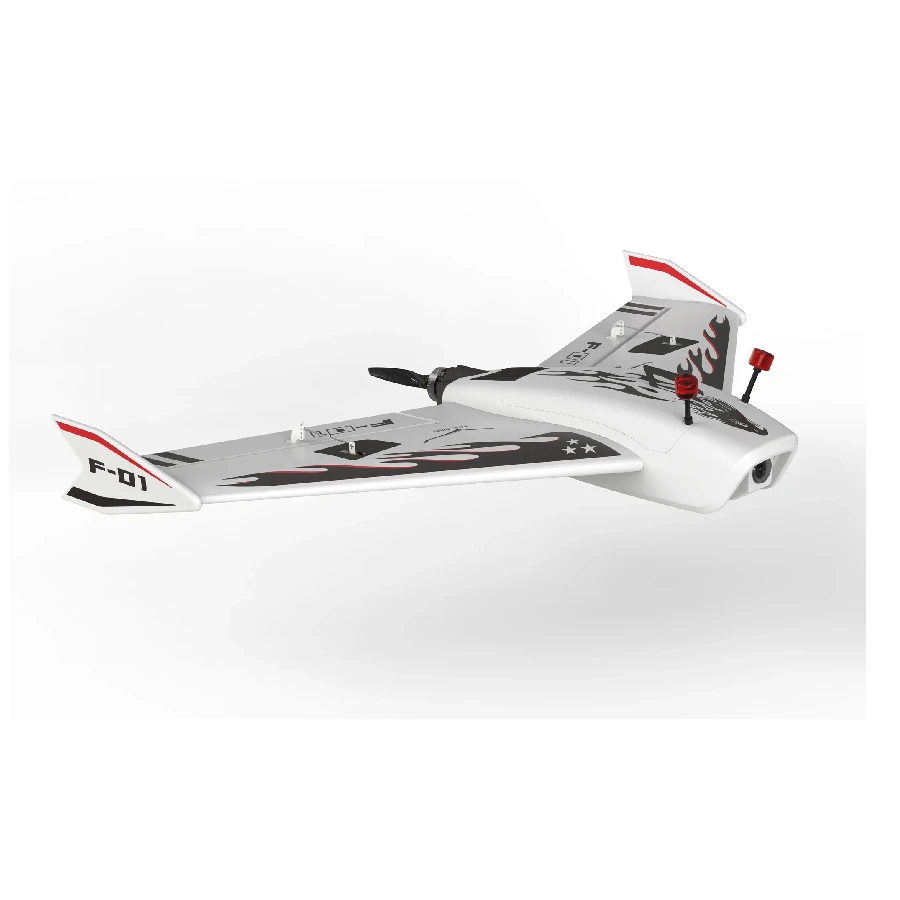

Hee Wing F-01 “Youth Edition” FPV Flying Wing (PNP)

Description:

The Hee Wing F-01 “Youth Edition” flying wing is a Delta Wing RC model with double convex airfoil design which allows both long endurance and high speed maneuvering. The F-01 has been designed to pair well with both the DJI digital system and analogue FPV with its included dedicated camera base. Adjusting the CoG is made easy by the included dual rail design in the cabin. A flight stabiliser is included (SBUS compatible) that provides self stabilising functionality to make flying and launches easier.

This version is the PNP version which includes pre-installed motor, servos. It does still require some assembly before flight.

Features:

– Independent detachable lens plug for both FPV and visual observation flights
– Wings have embedded carbon fiber rods with different angles
– Small wingspan with large space for electronics electronics
– Four magnets are applied to the hatch for better fastening
– The new wingtip design supports vertical take-off mode
– Supports horizontal and vertical battery mounting
– Tailored lens ring for better protection
– All new propeller locking method
– Tailored for DJI Digital Air unit

Specifications:

– Brand Name: HEE Wing
– Item Name: F-01 “Youth Edition”
– Material: EPP/ABS/Carbon Fibre
– Wingspan: 690mm
– Height: 88mm
– Length: 415mm
– Max Endurance: >70 minutes
– Max Mileage: >45km
– Min Flight speed: <27km/h
– Maximum Flight speed: ≥220+km/h
– KIT Weight: 150g(epp-30)/190g(epp-20)
– Take Off Weight: 350g~850g
– Battery Compartment: 175mm*175mm*55mm (Max dimension)
– ESC Compartment: 70mm*38mm*20mm (Max dimension)
– Note: when speed is > 100km/h, the lens cover should be used to prevent excessive air inflow blowing away the hatch.

“Youth Edition” Power System:

– Motor: FX-2204 2200KV Brushless Motor
– ESC: 2-4S FX-20A ESC with 2A UBEC with XT60 battery connector
– Propeller: 5045 prop (x2)
– Servo: 9g digital servos (x2)
– Flight Controller: RX-1.0

Recommended Parts (Not Included):

– Battery: 3S/4S 1550mah~ 2200mah LiPo
– Radio System: 2.4G 6CH receiver and transmitter like Radiomaster TX16S

Includes:
– 1x Hee Wing F-01 “Youth Edition” FPV Flying Wing (PNP)

** Warranty Exclusion: Warranty on these models is D.O.A. only as the model is trivial to break and does not include any faults that develop during usage, crashes or otherwise. Once you receive the model please carefully test the model on the ground to ensure everything functions BEFORE your first flight as warranty will not be provided beyond that point. The battery will lose capacity over time and has zero warranty **
