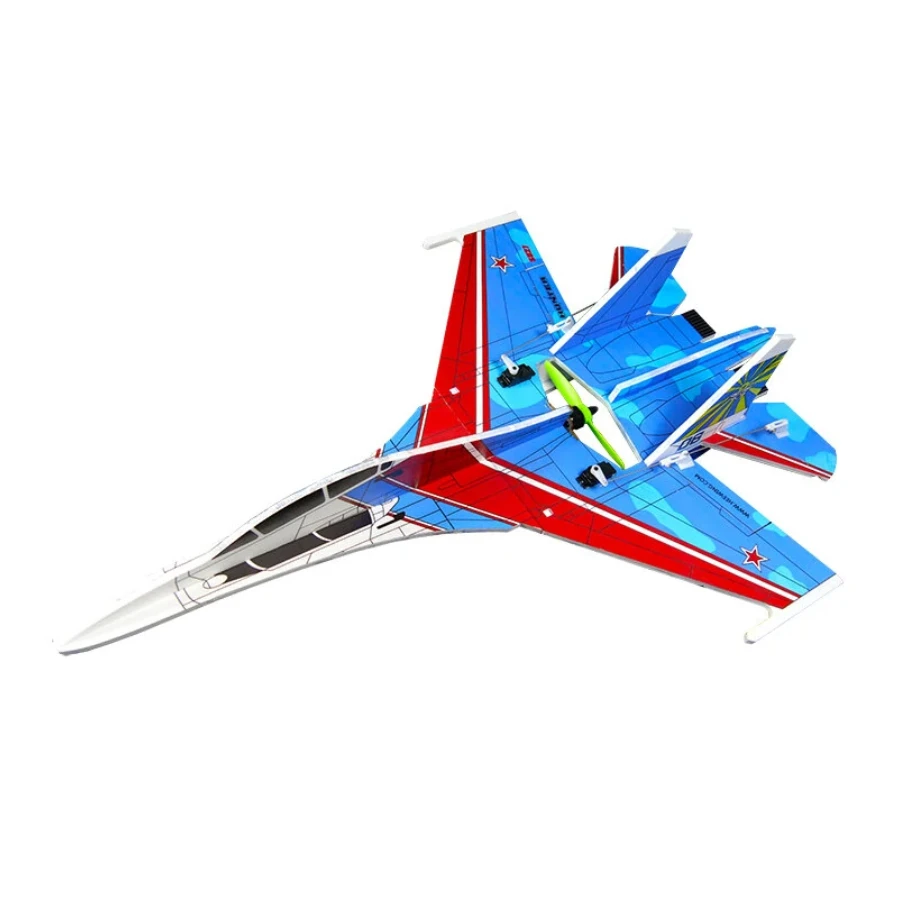

Hee Wing Hunter SU27 Plane (Kit)

Description:

The Hee Wing SU27 plane is made from 5mm MPP board which has been pre-laser cut and decorated. The kit includes motors, servos and ESC and just requires assembly.  Also included is a flight stabiliser board that is compatible with SBUS receivers. The stabiliser allows much easier take off as it will keep the plane stable through launch and allows for aerobatic flight.

Link to assembly guide

This version is the KIT version which includes motor, servos, stabiliser, ESC and props. It requires assembly and Glue which is not included.

Assembly Video (F22 very similar to the SU27 build)

Features:

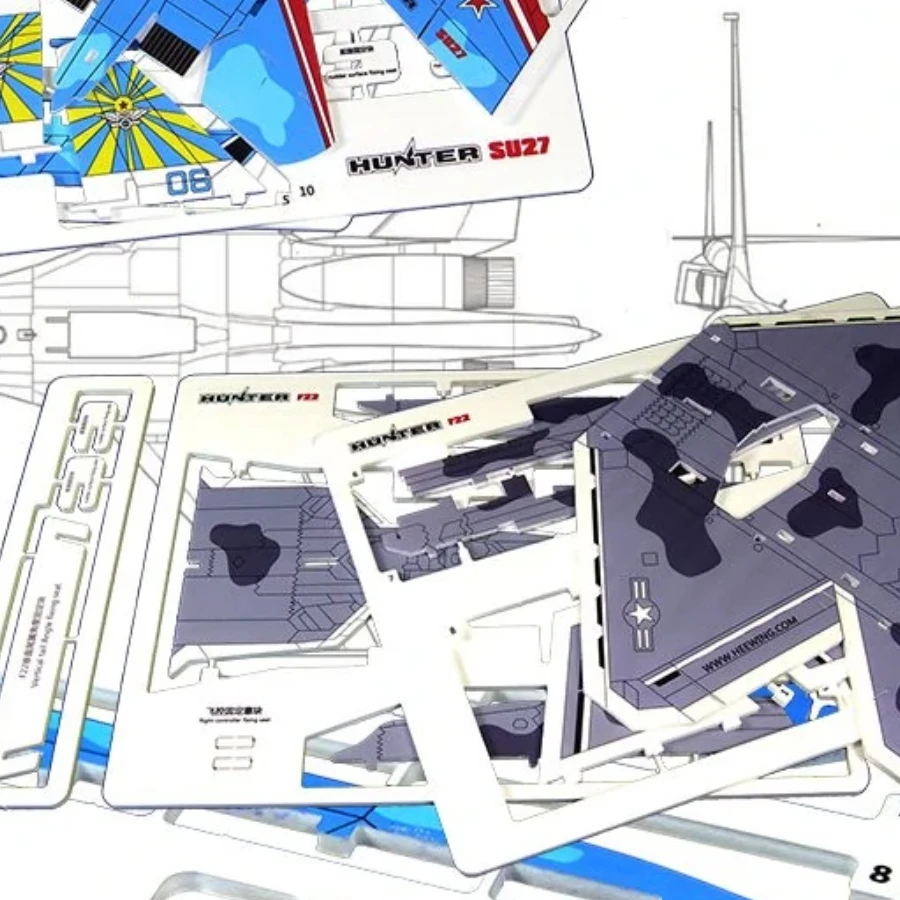

– 5mm MPP “Magic Board”, laser cut with UV printed graphics
– Lightweight durable construction
– Stabiliser included with self stabilise and aerobatics mode

Specifications:

– Brand Name: HEE WING
– Item Name: SU27
– Material: 5mm PP Magic Board
– Wingspan 400mm
– Length: 600mm
– Height: 140mm
– Takeoff Weight: 130g
– Motor: 1306 3700KV
– ESC: 20A
– Servo: 5g x2

Recommended Parts (Not Included):

– Battery: 2S 500mAh – 800mAh Lipo with PH2.0 connector
– Radio System: 6CH receiver (with SBUS out) and transmitter like Radiomaster TX16S

Includes:
– Hee Wing Hunter SU27 Plane (Kit)

** Warranty Exclusion: Warranty on these models is D.O.A. only as the model is trivial to break and does not include any faults that develop during usage, crashes or otherwise. Once you receive the model please carefully test the model on the ground to ensure everything functions BEFORE your first flight as warranty will not be provided beyond that point. The battery will lose capacity over time and has zero warranty **
