Hee Wing T1 Ranger FPV Plane (KIT)

Description:

The Hee Wing T1 Ranger is a lightweight and portable FPV plane. Once constructed, disassembly/assembly takes ~ one minute making it ideal for quick trips to the flying field. The T1 Ranger has a dual motor design which allows it to have a thrust to weight ratio as high as 1.71. The model itself is made from tough EPP foam and offers a large payload area for battery and electronics. With the right components its possible to get this plane to cruise for over 60 minutes.

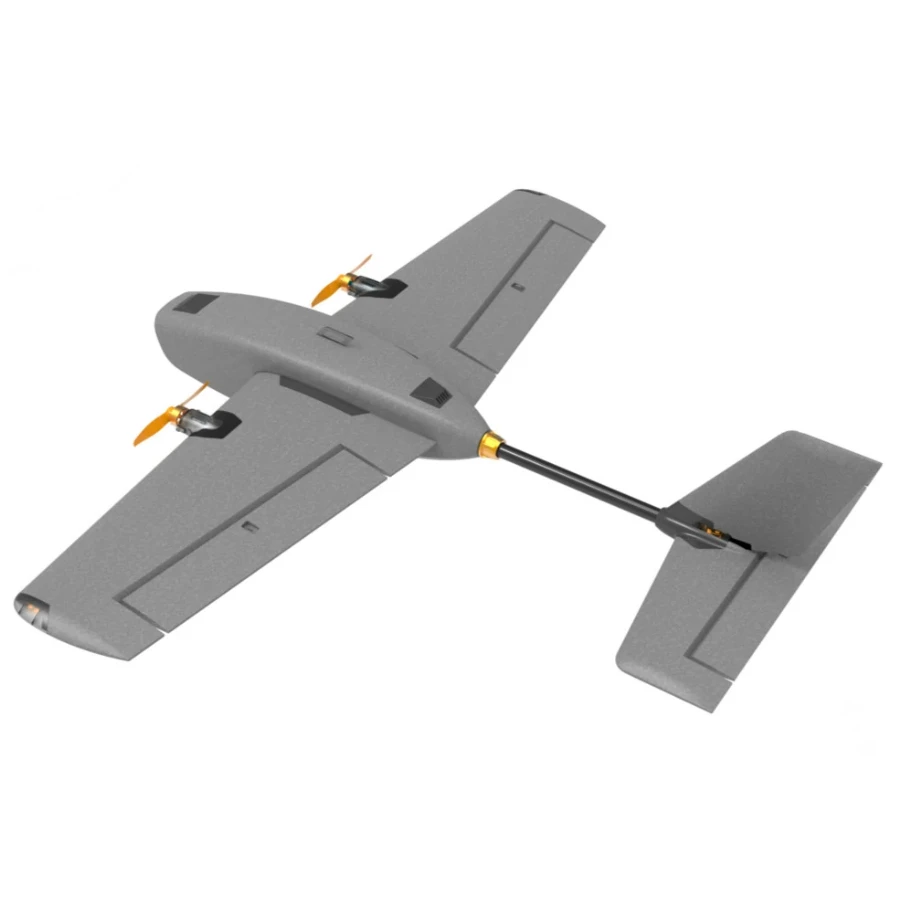

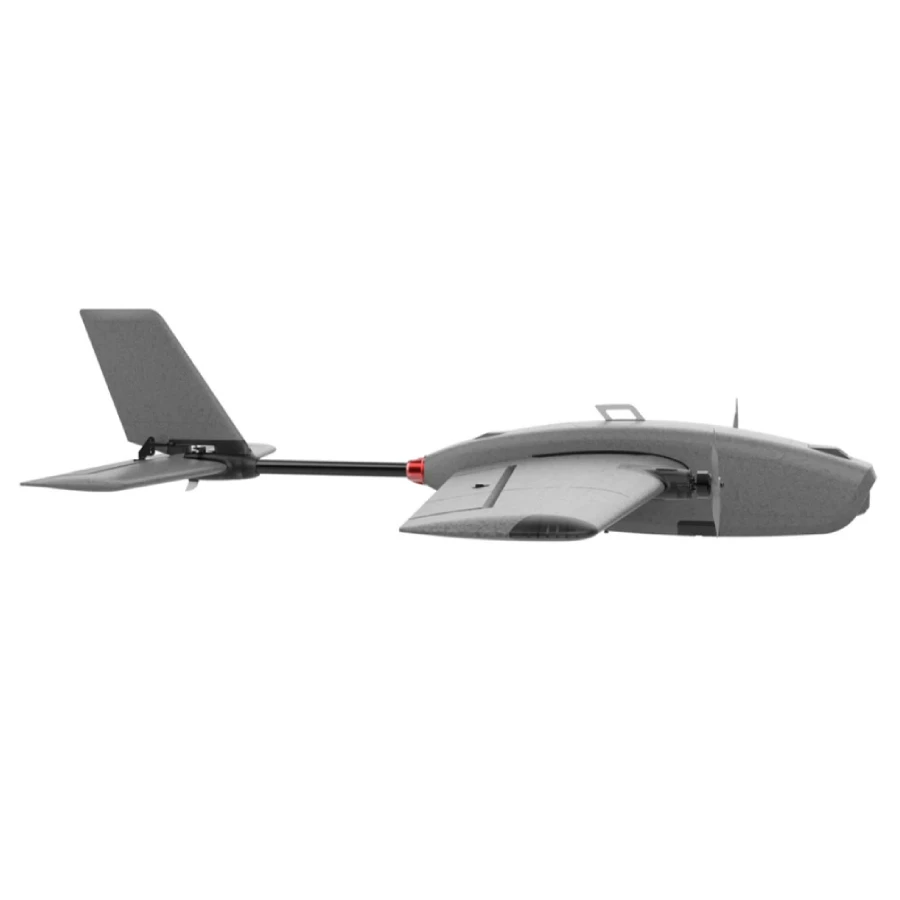

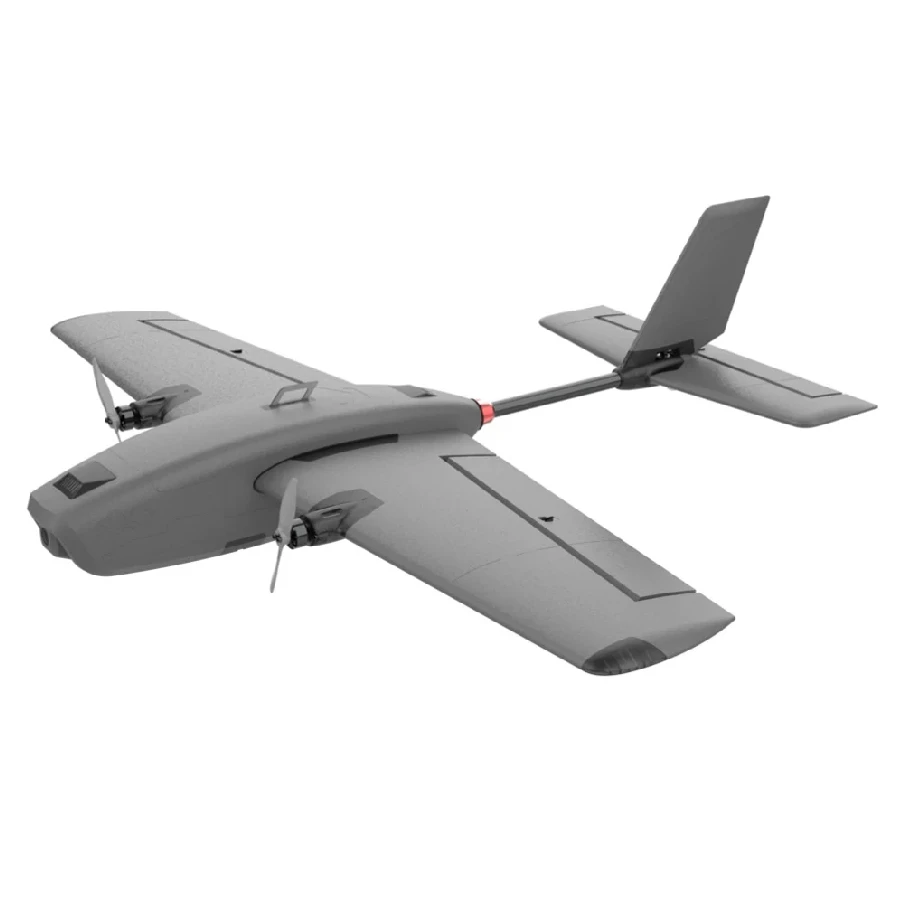

** IMAGES SHOW EXAMPLE ASSEMBLED VERSION – This version is the KIT version which only includes unassembled foam with plastic parts. It has no servos, escs, motors etc and requires assembly.  **

Features:

– Lightweight and portable, quick disassembly design, disassembly and assembly only takes one minute.
– The dual motors (Not included) have strong power and the thrust-to-weight ratio is as high as 1.71.
– Excellent aerodynamic design, slower flight is more stable.

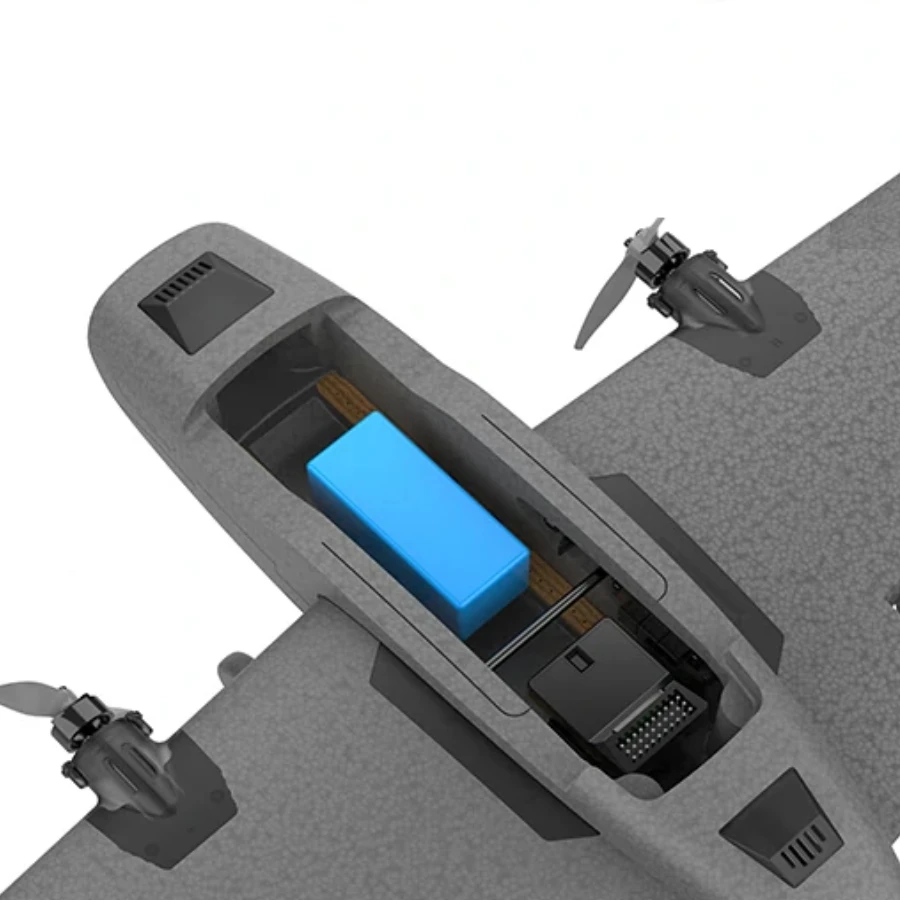

– Small wingspan, large space, easy layout of electronic equipment.
– The design of doubling the adjustable range of the center of gravity, taking into account the dual flight requirements of light load and heavy load.
– The hatch cover adopts bayonet design, the structure is more reliable.
– The new flight control system makes it easy to control the vast sky.
– Support for external cameras, which can take multiple cameras at the same time.

Specifications (Once assembled)

– Brand Name: HEE WING
– Item Name: T-1 Ranger
– Material: EPP / ABS+PC / carbon fibre / aluminum
– Wingspan 730mm
– Length: 645mm
– Height: 140mm
– Empty Weight: 155g (white) / 205g (grey)
– Takeoff Weight: 350g ~ 500g
– Cabin Space: Length 245mm x Width 51mm x Height 48mm
– Minimum Flying Speed: <20km/h
– Maximum Flight Speed: >120km/h
– Maximum Cruising Range: >25km
– Tensile Force: >600g (measured statically with the brushless version of 3S)
– Packing Size: 400mm * 230mm * 155mm

Recommended Parts (Not Included):

– Battery: 2S ~ 3S 1300mah~ 5000mah LiPo
– Radio System: 2.4G 6CH receiver and transmitter like Radiomaster TX16S
– Camera: Accepts nano size cameras without needing to cut foam
– Motors: 2x 1404 3700KV motors
– ESCs: 2x 20A Brushless ESCs
– Propellors: 2x 3830 props
– Servos: 5g recommended

Includes Parts:
– EPP Fuselage + wings
– Plastic Parts
– Spare Parts

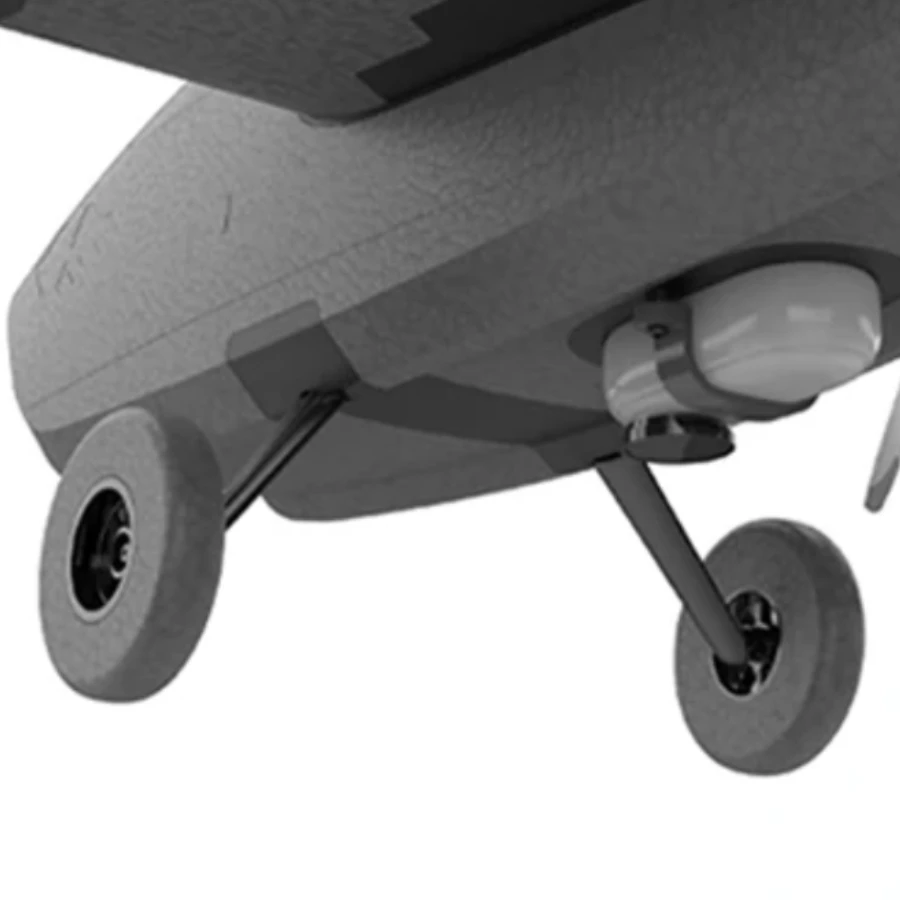

– Landing Gear
– Quick Release Structure
– Battery Velcro
– Decals

Includes:
– 1x Hee Wing T1 Ranger FPV Plane (KIT)
