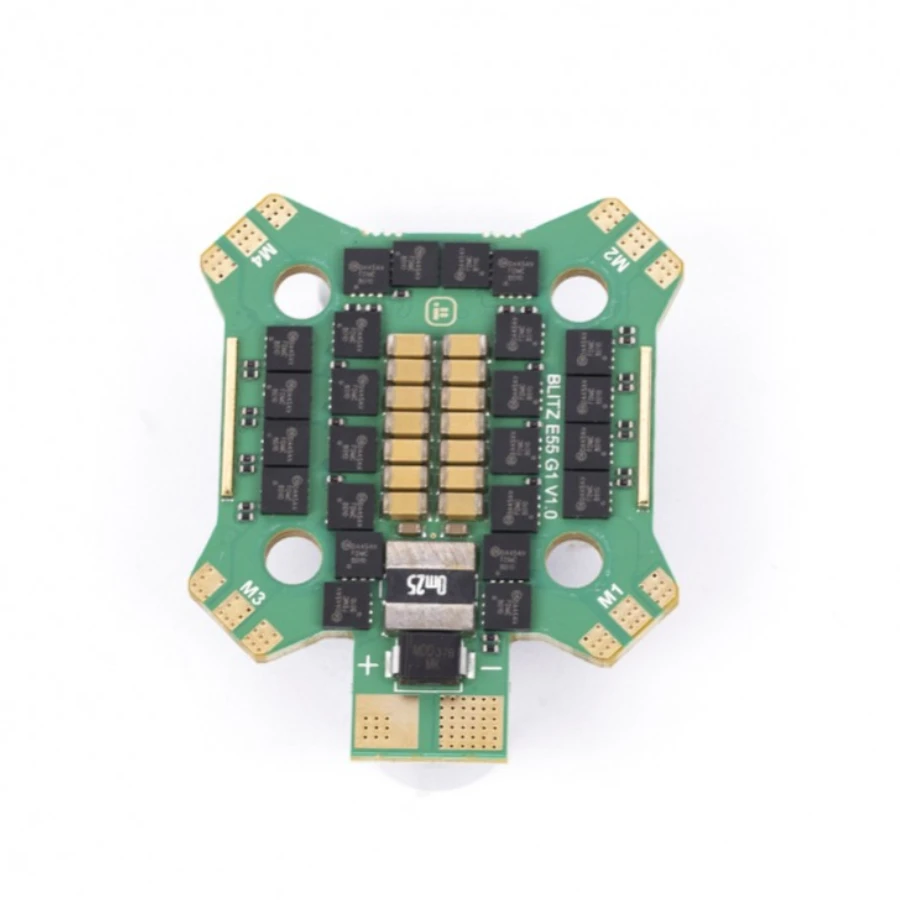

IFlight BLITZ Mini E55 4in1 ESC (20mm)

Description:

The iFlight BLITZ Mini E55 4in1 ESC is a 55A constant current rated 4in1 ESC with 20x20mm mounting holes. The mini E55 runs BLHeli32 firmware, includes an onboard current sensor and is capable of bursts of upto 60A. The E55 is 2-6S rated and has 20mm x 20mm mounting holes.

** WARNING: in line with the warranty the manufacturer offers us on these boards, we offer ZERO warranty once the board is soldered. We are happy to attempt a warranty claim but success is unlikely. Please keep that in mind when purchasing **

ESC Specifications:

– Dimension: 35*42mm
– Mounting Holes: 20*20mm/Φ4mm
– Weight: 11.3g
– Supports 2-6S lipo input
– MCU：G071
– Constant: 55 Amps
– Burst: 60 Amps
– Current sensor: Yes
– BEC: No
– Current rate: 100
– Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
– Firmware: BLHeli 32
– Target:   IFLIGHT_BLITZ_G1

Includes:

– iFlight BLITZ Mini E55 4in1 ESC (20mm)
– Accessories (Power cable, JST Wire, Silicone Grommets)
