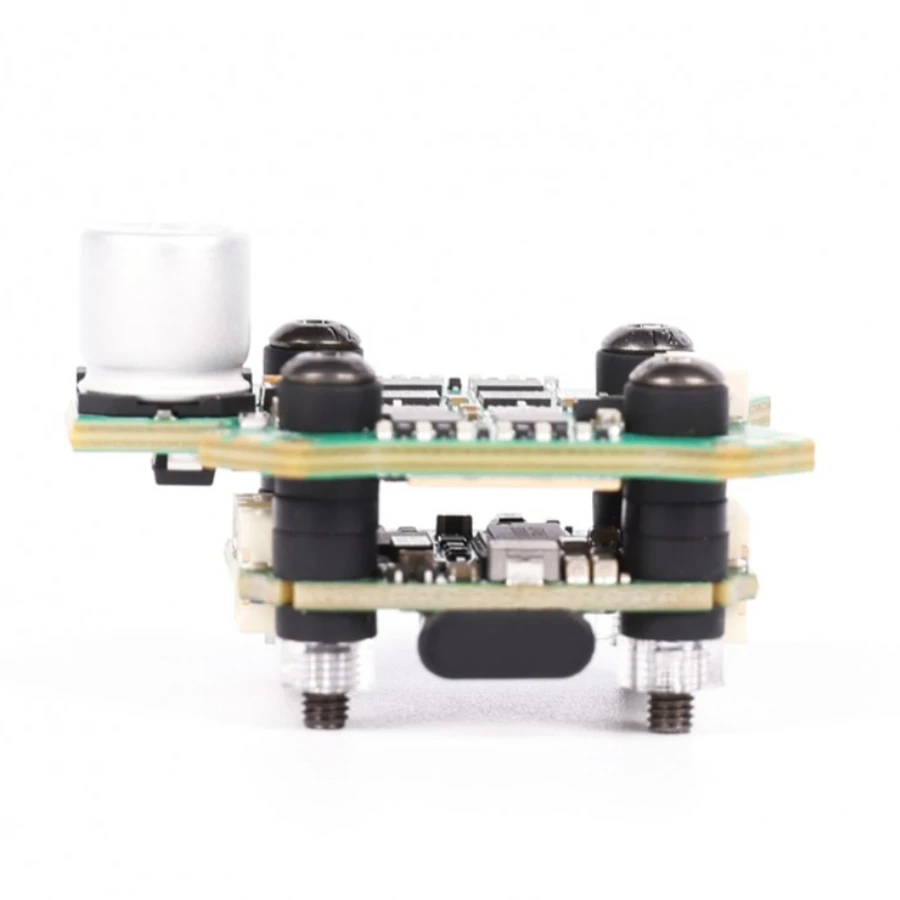

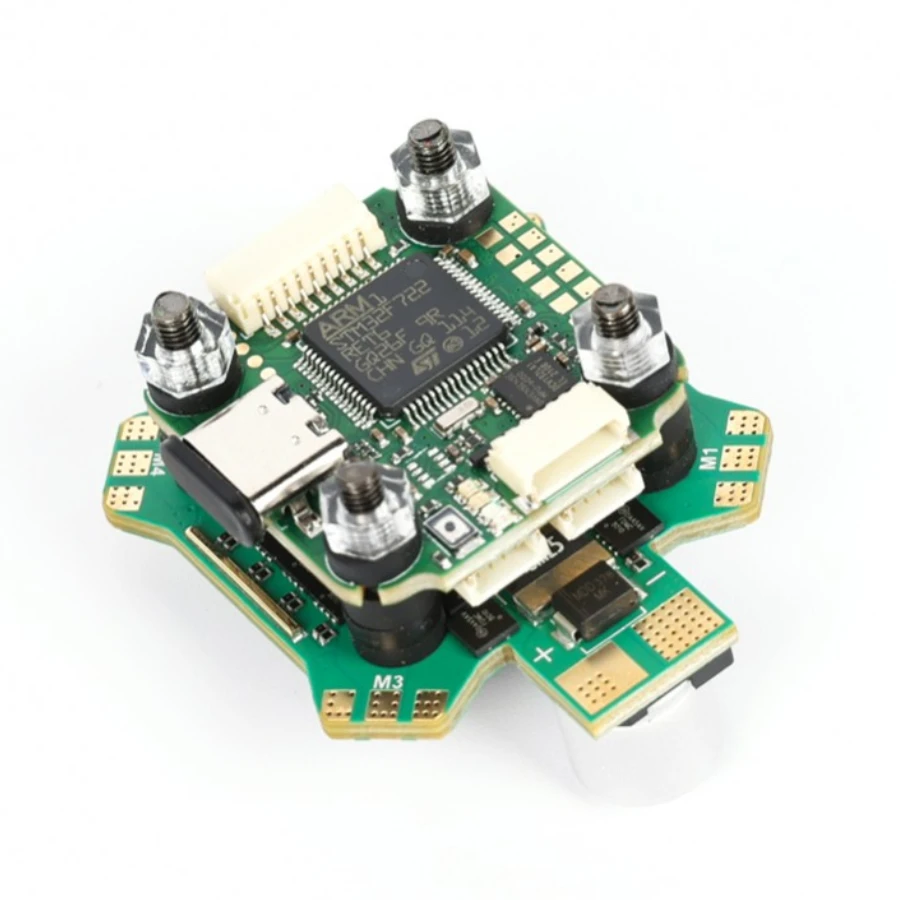

IFlight BLITZ Mini F7 Stack (FC + Mini E55 4in1 ESC) (20mm)

Description:

The iFlight BLITZ Mini F7 stack includes a BLITZ F7 mini flight controller and BLITZ E55 V1.3 mini ESC.The flight controller features a powerful F722 processor and BMI270 gyro. The BLITZ mini F7 is compatible with both analogue video and DJI digital. The flight controller some useful LED lights to aid in diagnostics/debugging. The FC has 20x20mm mounting holes.

The iFlight BLITZ Mini E55 4in1 ESC is a 55A constant current rated 4in1 ESC with 20x20mm mounting holes. The mini E55 runs BLHeli32 firmware, includes an onboard current sensor and is capable of bursts of upto 60A. The E55 is 2-6S rated and has 20mm x 20mm mounting holes.

** WARNING: in line with the warranty the manufacturer offers us on these boards, we offer ZERO warranty once the board is soldered. We are happy to attempt a warranty claim but success is unlikely. Please keep that in mind when purchasing **

Features:

– Improved circuit design, better components and lower electrical noise!
– DJI HD VTX Connector (Plug-and-Play / No soldering required)
– FC indicator LEDs for visual debugging

** Safety reminder: The DJI plug&play port has no voltage regulator (BEC) and is passing through VBAT. The Caddx Vista goes up to 26.4V (6S), the DJI Air Unit goes up to 17.6V (4S). You will also need to add extra capacitors to provide spike filtering and prevent the flight controller being destroyed **

FC Specifications:

– MCU:   STM32 F722
– Gyro:   BMI270
– Barometer:  DPS310
– OSD Chip:   AT7456
– Flash:   16MB (Blackbox flash)
– UARTS:   6
– Motor outputs:   4x (SH1.0 connector)
– I2C serial:   SDA / SLA pads
– Smartaudio / IRC Tramp VTX protocol supported
– LED controller:   Yes
– Beeper pad:   Yes
– Firmware target:   IFRC-IFLIGHT_BLITZ_F722
– Mount pattern:   20×20 mm / 4mm PCB hole diameter, silicon grommets for M3 screws
– Dimensions:   30.5×27 mm
– Weight:   5g

ESC Specifications:

– Dimension: 35*42mm
– Mounting Holes: 20*20mm/Φ4mm
– Weight: 11.3g
– Supports 2-6S lipo input
– MCU：G071
– Constant: 55 Amps
– Burst: 60 Amps
– Current sensor: Yes
– BEC: No
– Current rate: 100
– Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
– Firmware: BLHeli 32
– Target:   IFLIGHT_BLITZ_G2



Includes:

– iFlight BLITZ Mini F7 Stack (FC + Mini E55 V1.3 4in1 ESC)
– Accessories (Power cable, JST Wires, Silicone Grommets)
