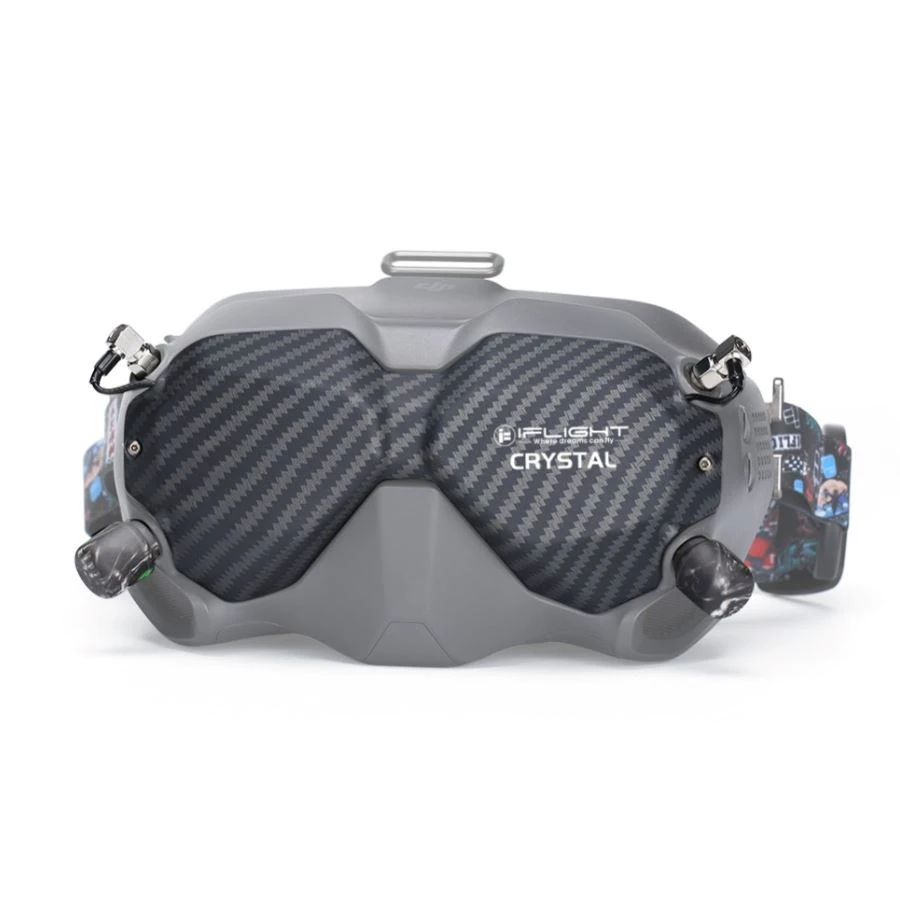

IFlight Crystal HD Patch 5.8GHz Antenna For DJI FPV Goggles (Carbon)

Description:

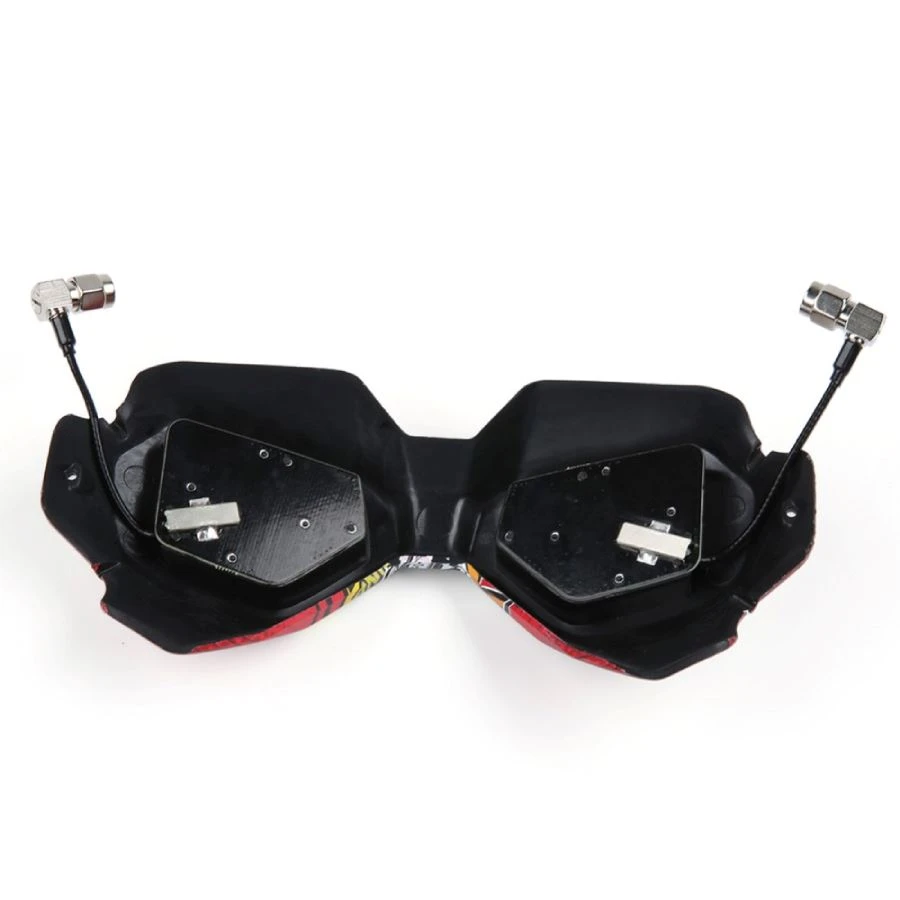

The iFlight Crystal HD 5.8GHz Directional Antenna! has been specially designed for the DJI Digital FPV Goggles to replace the stock front plate. The Crystal HD antenna features Two carefully designed and highly sensitive LHCP high gain directional antennas that give you a better reception at long range as well as better penetration through trees, bandos or other difficult terrains. The low profile design keeps the goggles low profile in your backpack. The horizontal beam of 105 degrees and vertical beam of 75 degrees at 9dBi gain decreases slowly the further you get to the side! Low loss with a 93% antenna efficiency and a axial ratio of ≤1.6 through the whole band. If that’s not enough, we also gave you the option to either mount your antennas at the bottom or top pair of the Goggle RP-SMA connectors.

Features:

– LHCP high gain directional antenna array
– Lower profile and better reception than stock antennas
– Super wide beam width, horizontal 105 degrees @9dBi, vertical 75 degrees @9dBi
– Can be mounted on top or bottom Goggle RP-SMA pair

Specifications:
– Frequency: 5.8GHz
– Bandwidth: 5600~5900 Mhz
– Gain: 9 dBi
– Axial ratio: ≤1.6
– Impendance: 50Ω
– Radiation Efficiency: 93%
– Beam Width: 105° H. 75° V.
– Polarization: (LHCP) Left Hand Circularly Polarized
– Cable: RG178
– Connector: RP-SMA (Fits DJI Goggles directly, not to be used on standard SMA)
– Dimensions: 16mm x 7mm x 3mm
– Weight: 52.1g

Includes:

– IFlight Crystal HD Patch 5.8GHz Directional Antenna Array (Carbon effect)
