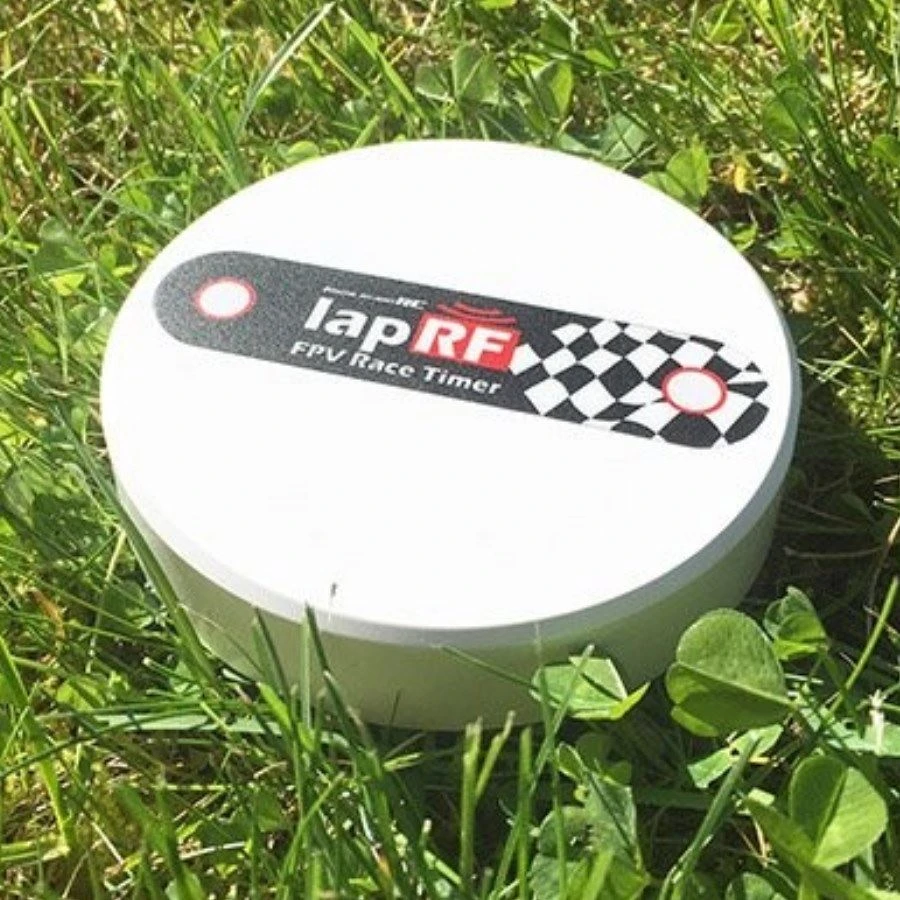

ImmersionRC LapRF Personal Timing System

Overview:

The ImmersionRC LapRF Personal Timing System is a Best-in-class RF Race Timing System for monitoring your lap times.

The passing of a quad through the start/finish gate is precisely measured using the energy emitted by the 5.8GHz transmitter on the quad.

Easy to Use
It doesn’t get much easier. Power on the LapRF, drop it in the start/finish gate,
select its ID in the free Android/iOS app, select the number of pilots, and video channels used, and start racing.
The LapRF will run all day, measuring lap times and speaking the results. There is no better tool to allow pilots to measure their performance, and work to improve it

No More Transponders!
The lapRF uses the Radio Frequency energy emitted by the Video Transmitter on the model to detect its presence within the race gate.
The current generation of racing drones have two things in common, they all use 5.8GHz video downlinks, and they all need to be on different channels to race together. This is all that the lapRF system needs to precisely time events.
No RFID transponders, no Infra-Red transponders, no complex installations. Just place the lapRF system in the start/finish gate, and start racing.

Custom Timing Receivers
Instead of using a standard receiver module in the timing system, ImmersionRC’s hardware engineering team designed a custom module, which can be calibrated on-the-fly to adapt to the different power levels found in races.
Sensitive enough to detect passing quads, but selective enough to ignore adjacent channel interference. Heavily filtered to ignore off-band interference common at race events.

Bluetooth Link to Phones And Tablets
The LapRF Personal Timing System includes a bluetooth module which can quickly link an iOS or Android device to the gate.
Enter pilot names, start the race, and the lap times will be spoken along with the pilot’s name.
All lap times will be shown in a table, along with average, and best lap times.

Integrated 2600mAh Battery
Integrating a high capacity, but common 18650 battery (available from vape shops worldwide) the LapRF doesn’t need an external power supply.
To allow quick in-the-field replacements, we included a handy battery door in the bottom of the unit, minimizing down time during battery changes.
When it is time to recharge the battery, the integrated charger just requires a USB hookup, no need to remove the battery.

Specifications:
– Dimensions: L=100mm x W=100mm x H=25mm
– Weight: 121g (with battery)
– Channels: All common (+ some rare) Analog + Digital 5.8GHz
– Antenna: Custom RHCP/LHCP/Linear
– RF Connector: U.FL
– Pilots: 1 to 8, depending upon required precision and gate speed
– Battery: 18650, 2600mAh, 3.7V Nominal
– Bluetooth: BLE, Bluetooth Smart
– BT Range: Approx. 100ft with internal antenna
– BT Antenna: Internal FCC/CE/CTick, with External option
– App Support: iOS and Android
– Ports: Wireless Bluetooth, and Wired USB

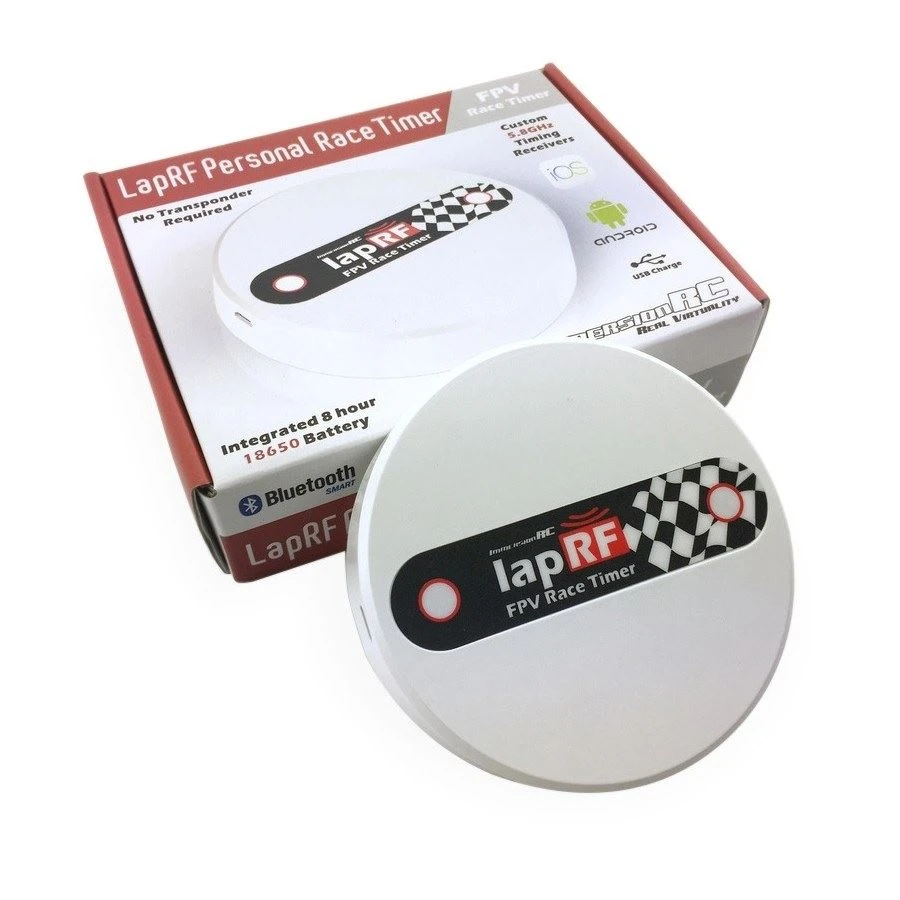

Included:

– 1x ImmersionRC LapRF Personal Timing System
