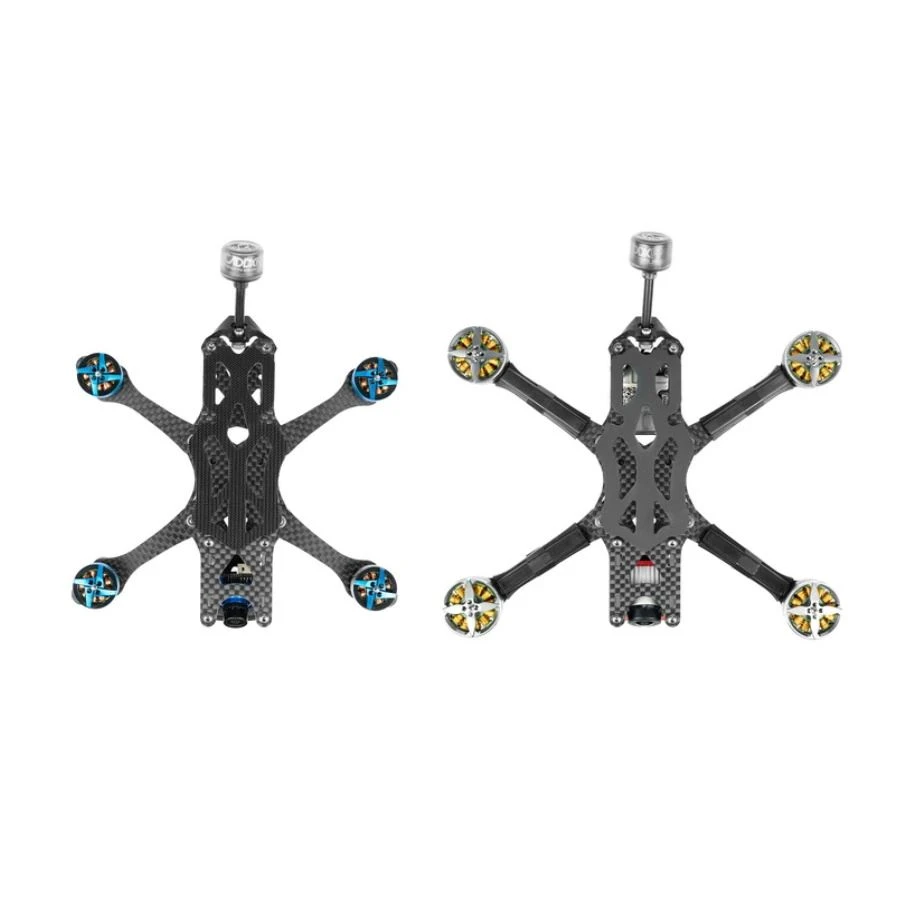

ImpulseRC Micro Apex 4″ Frame

Overview:

The ImpulseRC Micro Apex takes everything you know and love from the widly popular full-size Apex, then shrinks it down without compromise to deliver by far the biggest little frame on the market. This is the 4″ version weighing in at 61g for the frame & hardware.

The meticulous transformation and extreme attention to detail has created a frame which incorporates years of design experience.
Equally comfortable as a sub-250g long range explorer, or a full-blooded freestyle machine capable of handling the harshest environments.

 ** Frame Only, Motors, camera ESC etc NOT included. Needs a micro size camera. **

The Micro Apex incorporates all of the unique innovations pioneered by ImpulseRC and now widely imitated. From the compressed-X arm geometry, integrated camera tilt, front box-section and split main plate design, to our custom shoulder bolts and arm locking key. At the centre of mass where the arms meet there is a massive 8mm of carbon fibre, taking the stiffness of a micro frame to a new dimension so you can enjoy unsurpassed flight characteristics at this prop size.

You can expect zero arm slop or movement, zero vibration or resonance, and of course that proven ImpulseRC durability you can always trust. All backed up with our full crash damage warranty that covers all carbon fibre and metal parts for 1 year from the date of purchase *Note: this is a manufacturer warranty and claims need to be done through them*

Features:

– Full crash damage warranty on all parts for 1 year (*Note: this is a manufacturer warranty and claims need to be done through them*)
– Perfect for Caddx Vista, 4K Tarsier or classic analog setup
– No props in shot of flight camera with 3” arms
– Dual stack, 20×20 M3 and M2 centre, 20×20 M2 rear
– Injection moulded arm skids and front bumper
– Injection moulded fitted wire guards to protect from prop strikes
– Two battery pads included, 2mm rubber and ultra-light hook pad
– Custom fitted Racewire available for 4” arms
– 4” frame weight 61g, carbon fibre + hardware
– 4mm thick arms, single shoulder bolt per arm
– 2mm thick upper and lower main plates
– 1.5mm thick top and camera plates

Included:

– 1x ImpulseRC Micro Apex 4″ Frame Kit (Black Plastics)
