ImpulseRC Micro Reverb 3″ Frame

Original price was: $56.30.Current price is: $39.41.

Quick responses, top-notch service.

Quality You Can Count On

Nature-friendly materials, for a better planet.

Efficiency meets excellence in customer care.

Overview:

The new Micro Reverb FPV Frame brings huge fun in a small package. We scaled down the full-sized Reverb to fit modern 20×20 electronics, taking great care to preserve the proportions so that the iconic design is instantly recognizable.

Fans of the original will love the scale features and attention to detail, from the gunmetal M2.5 high tensile hardware down to the custom M2.5 replica cone washers and tiny lipo pad. Of course, no Reverb would ever be complete without our classic and perfectly scaled down micro diamond files.

Not only does it look amazing, the performance is just as good. At a compact 140mm motor-to-motor and weighing only 33g dry, the Micro Reverb handles how a micro frame really should. The only thing out of proportion here is the amount of fun you can have in something so portable. It really can be taken and flown anywhere. This all makes for a tight build but the rewards for keeping small and light are definitely worth it.

Paired with the Runcam Split Mini 2 and using the correct electronics (see below!) the Micro Reverb can pump out flawless HD video without any visible jello. You can build it under 100g without battery on 11xx sized motors, or you can opt for all out power and speed, using the new ImpulseRC 1408 3200kV motors we designed and matched specifically for this size of frame, and come in healthily under 250g AUW (including battery).

Reverbs are well known for their durability and the new Micro variety is no different. Incorporating removable arms that can be replaced with just a single bolt makes maintenance quick and simple, meaning you are always prepared for the worst. On top of that we went all out to make sure we could bring you the frame and spares at a great low price so you can fly without fear.

Specifications

– Motor to motor: 140mm diagonal
– Motor geometry: Identical to original Reverb
– Motor bolt pattern: M2 in 12x12mm and 9x9mm
– Motor center hole: 4.5mm
– Camera Compatibility: Micro cameras and Runcam Split Mini 2
– Center to top plate: 20mm
– Electronics mounting: M2 20x20mm
– Props: HQ 3x4x3V1S or HQ 4x3x3

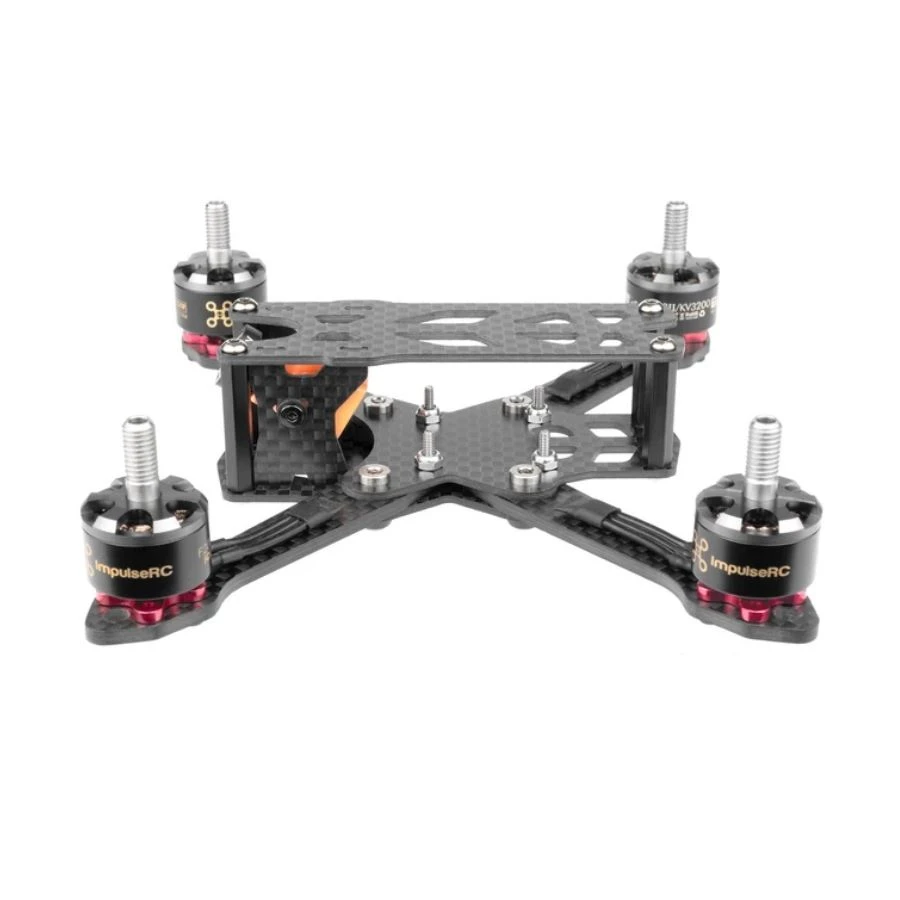

** Images for illustration only. Motors, camera, PDB etc not include, frame only **

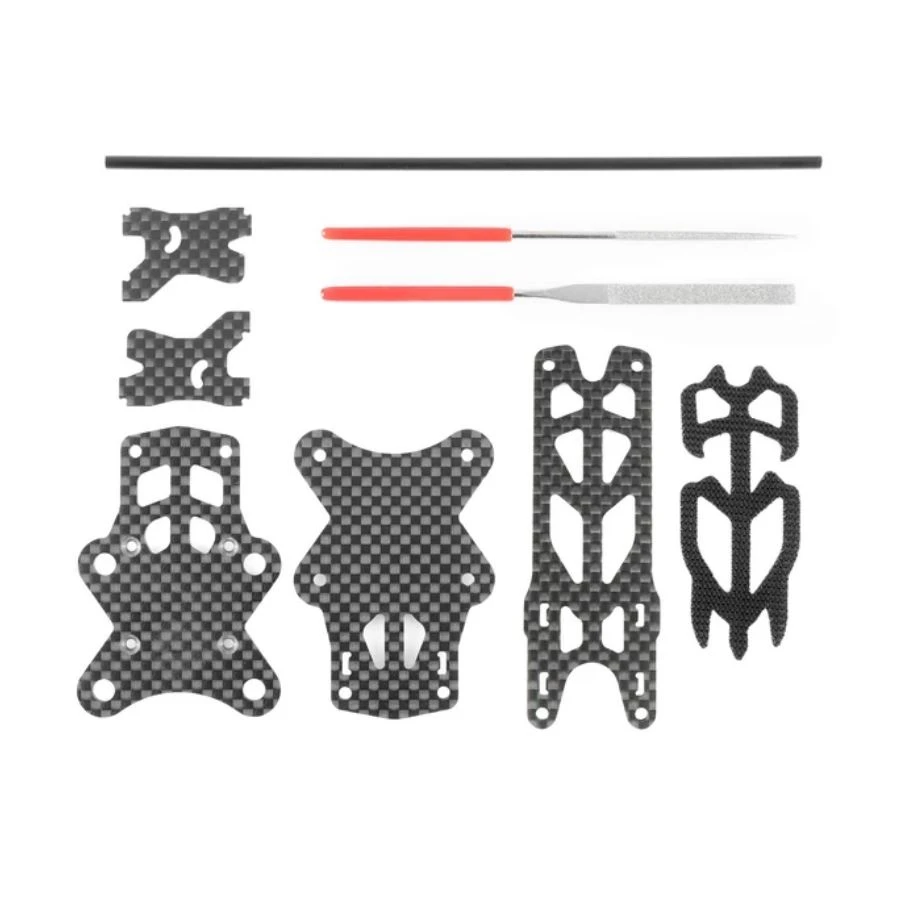

Included:

– 1 x Micro Reverb Body Kit
– 1 x Micro Reverb Arm (3″) kit
– 1 x Micro Reverb Arm Screw Pack
