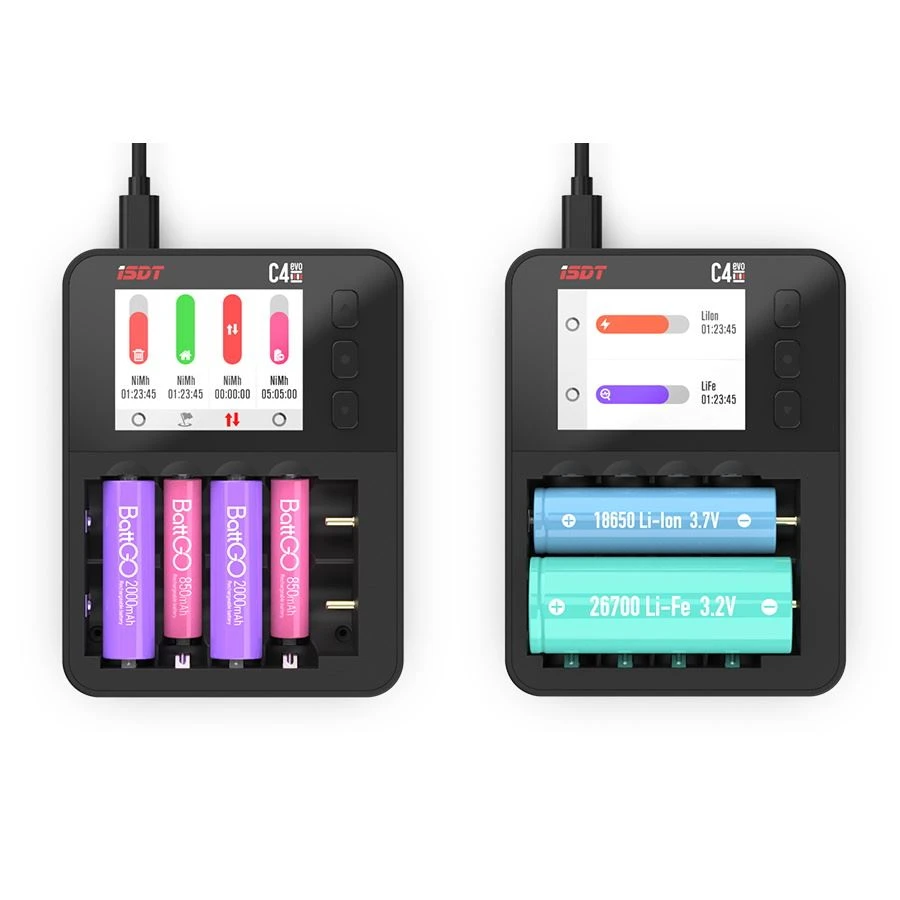

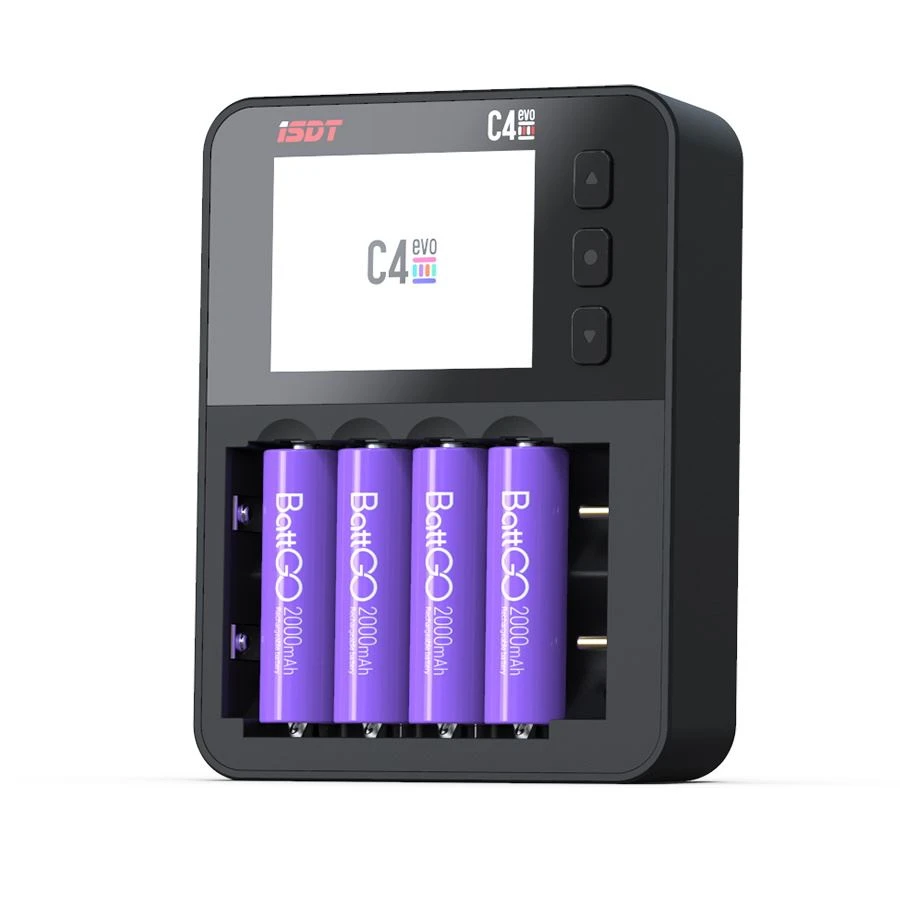

ISDT C4 Evo Smart Charger

Overview:

The ISDT C4 Evo smart charger supports almost all battery types and features six slots for independent cell charging. The C4 Evo features a high angle visible 2.4″ IPS display that shows detailed parameters and task progress. Each battery type can be charged independently using a designated port. The charger will immediately identify the battery type and match with the appropriate charging strength.

Protected by a strong case, the ISDT C4 EVO charger is able to analyse, activate, cycle and store power. The C4 smart charger is compatible with Li-Ion, LiHv, IM-R, IN-R, NiMh, Ni-CD, LiFeP04 and Eneloop.

** Requires USB-C power supply (QC or PD Protocol), not included **

Features:

– Smart Battery Charger
– USB-C power input
– NiMH, NiCd, Eneloop, Li-Ion, LiHv, LiFeP04, NiZn, LiFE
– Wide range of supported sizes AAA; AA; 10440; 10500; 12500; 12650, 13500; 13650; 14500; 14650; 16650; 17650; 18650; 20650; 22650; 26650

Specifications:

– Charging Model: ISDT C4 EVo
– Input Power: 5-12V via USB C (QC, PD Protocol)
– Circuit Power: Max. Charge Power 25W, Max. Discharge Power 10W
– Battery Count: 1-4 single cells, cylindrical
– Battery Size: AAA; AA; 10440; 10500; 12500; 12650, 13500; 13650; 14500; 14650; 16650; 17650; 18650; 20650; 22650; 26650
– Operating Voltage Range: 0.2V-5.0V/slot
– Battery Chemistry Type: NiMH, NiCd, Eneloop, Li-Ion, LiHv, LiFeP04
– Charge Current Range: 0.1A-3.0A/slot (Horizontal), 0.1A-1.5A/slot (Vertical)
– Discharge Current Range: 0.1A-1.5A/slot (Horizontal),  0.1A-1.0A/slot (Vertical)
– Operation Modes: Charge, Discharge, Storage, Cycle, Activate, Analysis
– Display: 320×240 IPS LCD
– Beep Sound: Multi-Tone
– Temperature Sensors: 5 for inner
– Operating Temperature: 0°C – 40°C
– External Ports: USB Power Input (Type-C)
– Dimensions: 120x92x34mm

Included:

– ISDT C4 EVO Smart Battery Charger

IMPORTANT: Never charge batteries unattended! Constant supervision is required as batteries can be dangerous when mishandled. We recommend charging your batteries inside a protective charging bag.
