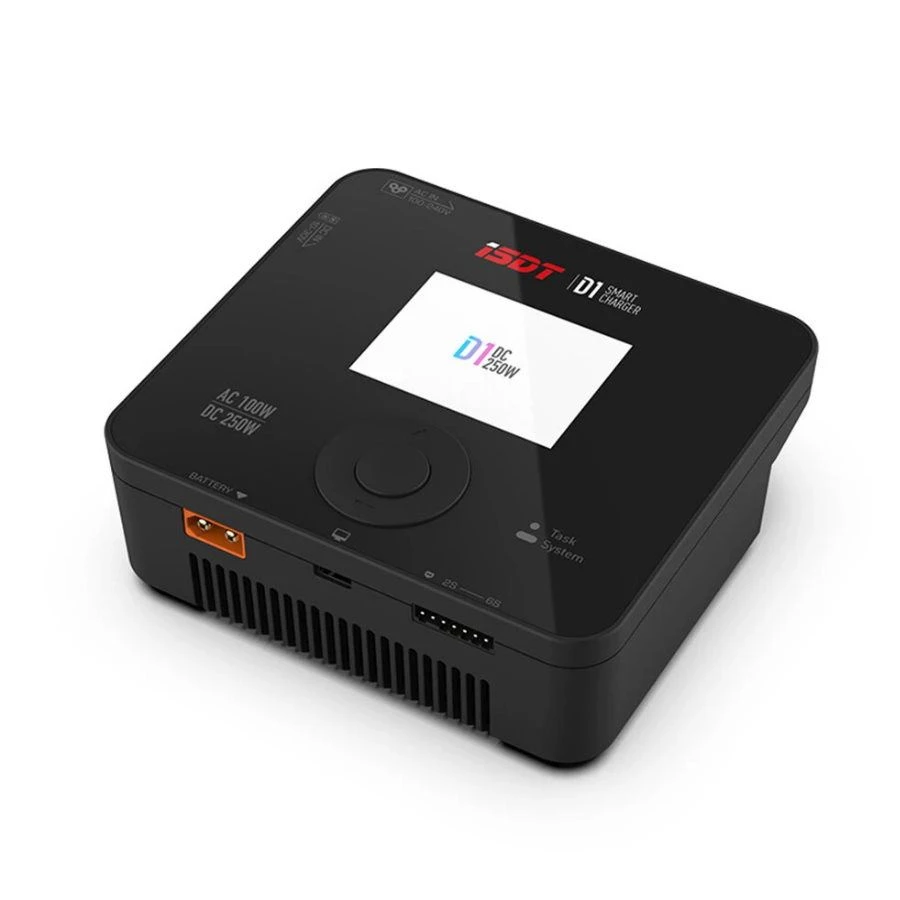

ISDT D1 250W Dual AC/DC Charger

Overview:

The ISDT D1 smart balance charger has a single channel output for a total of 250W (when DC powered). The charger features a dual input – AC for 100W and DC for 250W. The charger supports upto 6S balance charging and also features a mode where it becomes an adjustable power supply able to operate in constant current or constant voltage mode. The ISDT charger features a wide range of power management protection features including overload protection, over voltage protection and over temperature protection.

** Requires a UK AC mains plug to IEC C7 to function in AC mode – NOT included **

Features:

– 2.4″ IPS display with auto-brightness

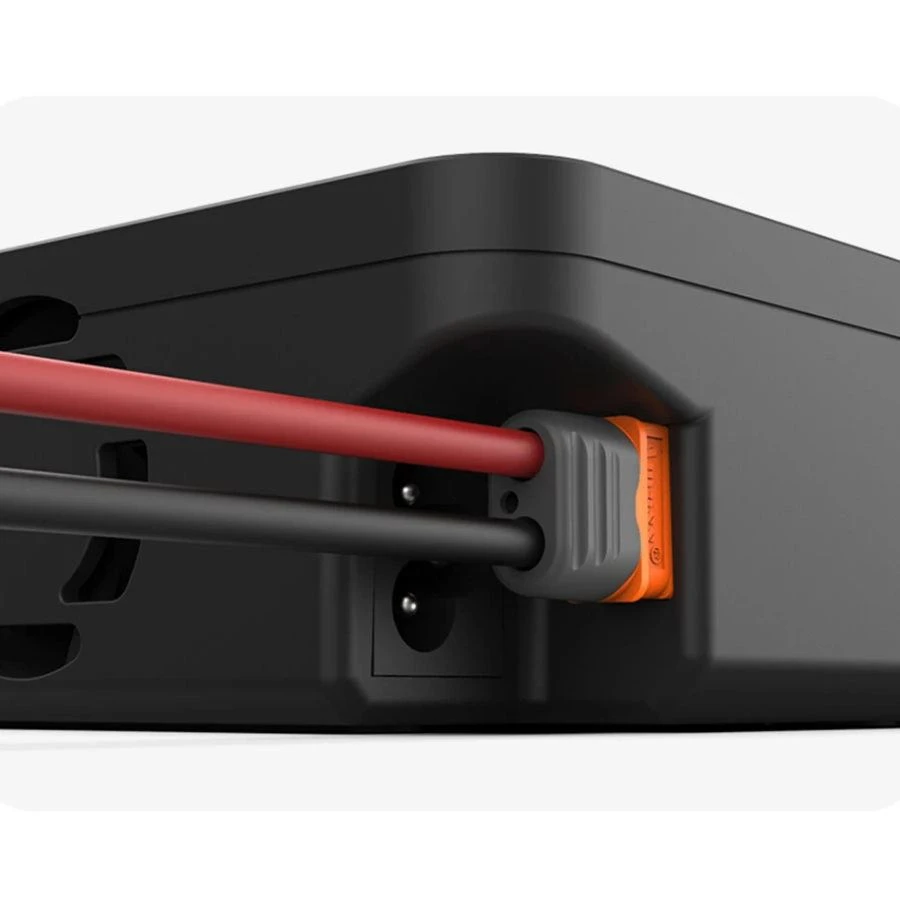

– AC Input (100W charge rate) DC (250W max charge rate)

Specifications:

– Input voltage: AC 100~240V / DC 10~30V
– Output voltage: DC 1~35V
– Max. input current: DC 14A
– Charging current: 0.1~10A
– Discharging current: 0.1~1.0A
– Balance current: 1.5A/Cell Max
– Max. discharging power: 15W
– Max. charging power: AC 100W / DC 250W
– Abnormal voltage alarm: support
– Incorrect cell count setting alarm: support
– Supported battery types and cell count: LiFe, Lilon, LiPo 1~6S, LiHv 1-6S, Pb 1-12S, NiMH, Cd 1-16S
– Working temperature: 0~40℃
– Storage temperature: -20℃~60℃
– Dimension: 126x115x49mm
– Weight: About 460g

Included:

– 1x ISDT D1 Smart Balance AC/DC Charger

IMPORTANT: Never charge batteries unattended! Constant supervision is required as batteries can be dangerous when mishandled. We recommend charging your batteries inside a protective charging bag well away from anything combustable.
