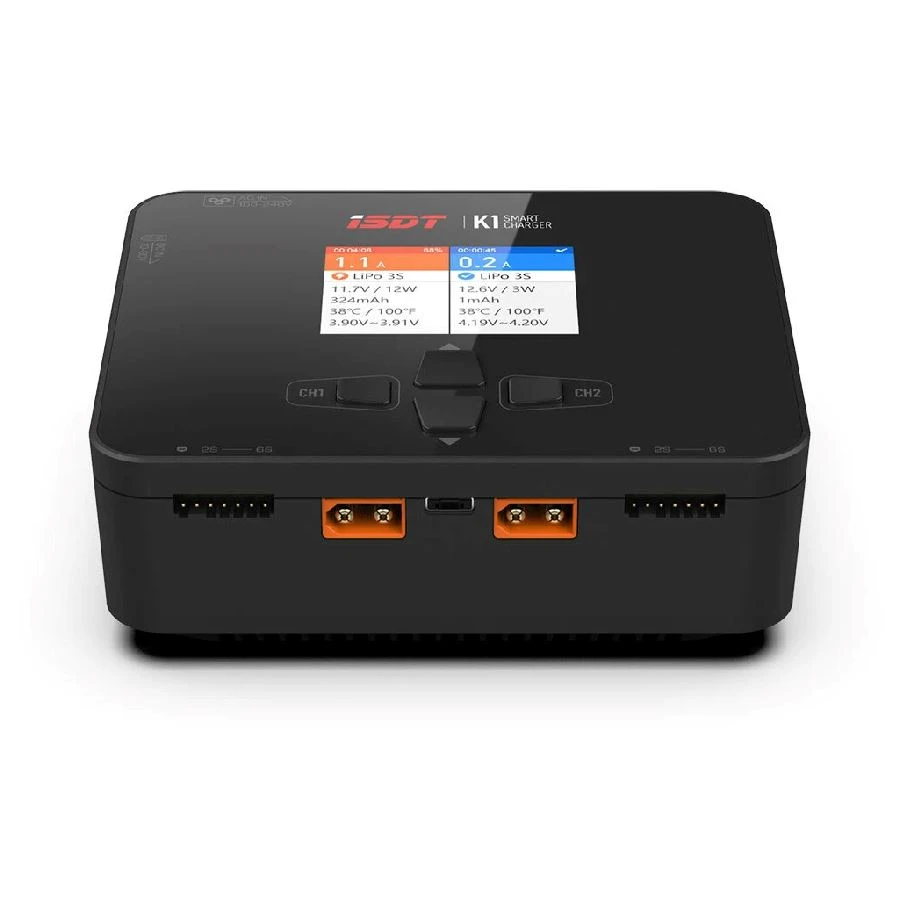

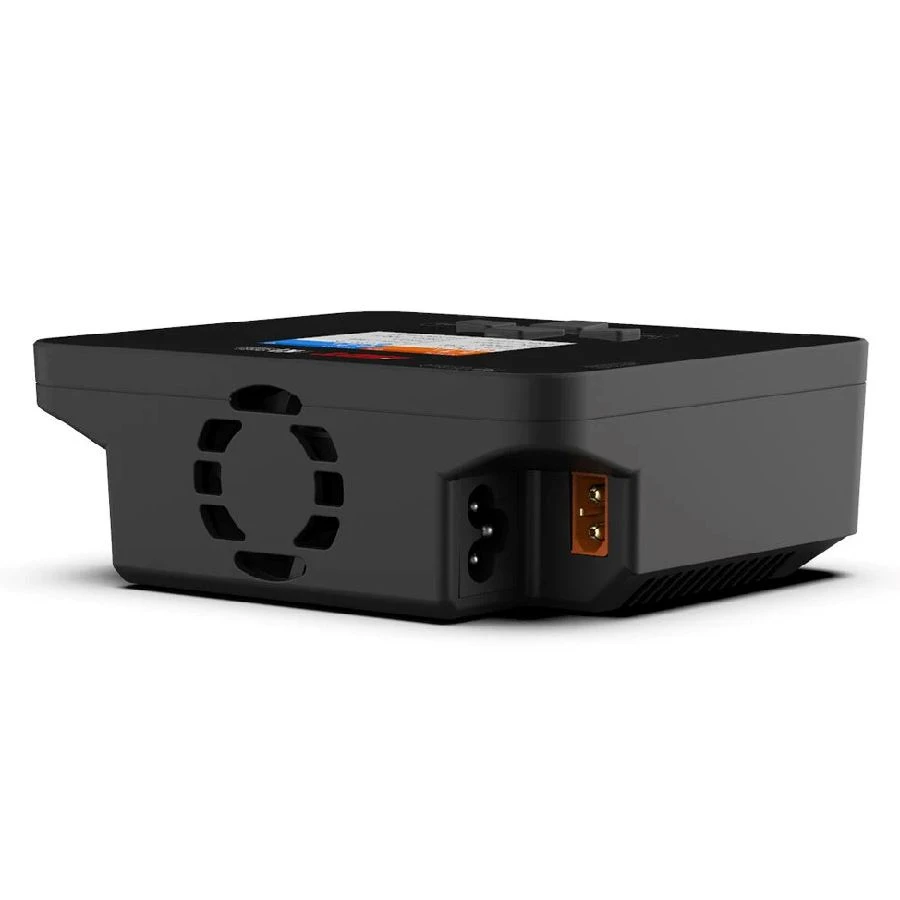

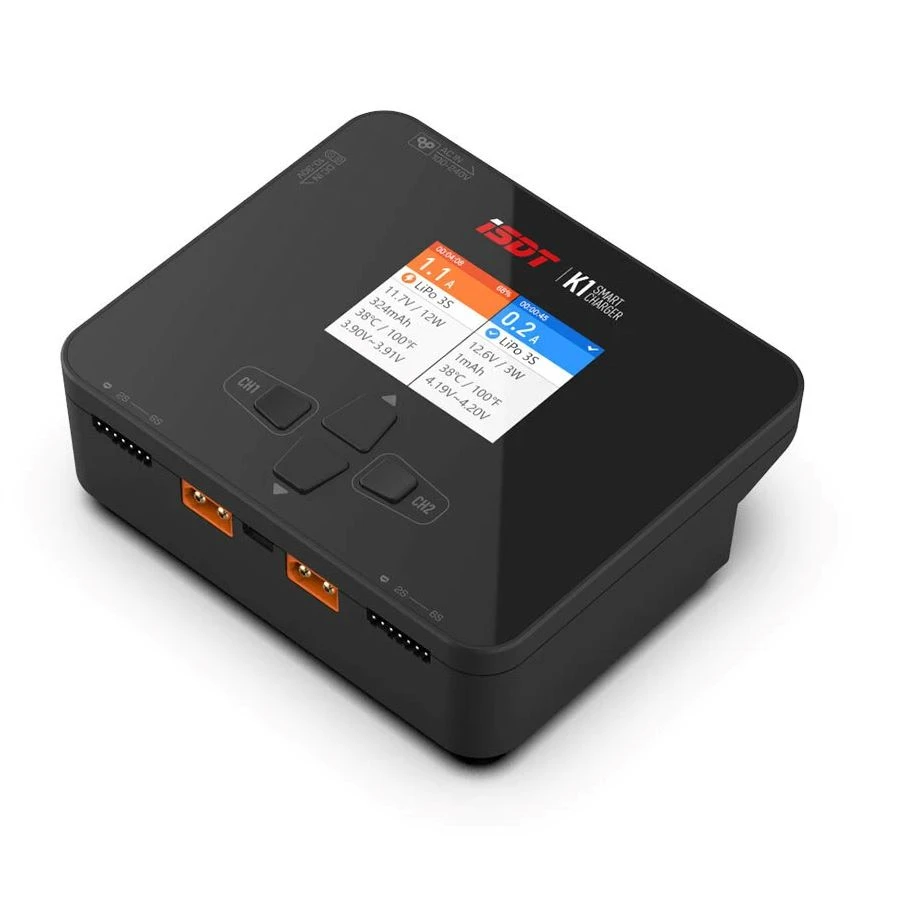

ISDT K1 250W Dual AC/DC Charger

Overview:

The ISDT K1 smart balance charger has two channel output for a total of 500W (when DC powered) or 100W when AC powered. The charger features a dual input – AC for 100W or DC for 250W x2. The charger supports upto 6S balance charging and also features a mode where it becomes an adjustable power supply able to operate in constant current or constant voltage mode. The ISDT charger features a wide range of power management protection features including overload protection, over voltage protection and over temperature protection.

** Requires a UK AC mains plug to IEC C5 to function in AC mode – NOT included **

Features:

– 2.4″ IPS display with auto-brightness
– AC Input (100W charge rate) or DC (250Wx2 max charge rate)
– Upgradeable Firmware
– Adjustable Digital Power Supply (CC 0.2A~5.0A / CV 5~24V)
– Battery destroy mode (discharges battery safely down to 0V)

Specifications:

– Input voltage: AC 100~240V / DC 10~30V
– Output voltage: DC 1~26.4V
– Max. input current: DC 20A
– Charging current: 0.1~10.0A x2
– Balance current: 0.5A/Cell Max
– Max. charging power: AC 100W / DC 250W x2
– Abnormal voltage alarm: Support
– Incorrect cell count setting alarm: Support
– Supported battery types and cell count: LiFe, Lilon, LiPo, LiHv 1-6S, Pb 1-12S; NiMH/Cd 1-16S
– Working temperature: 0~40℃
– Storage temperature: -20℃~60℃
– Dimension: 135x115x49mm
– Weight: ~485g

Included:

– 1x ISDT K1 250W Smart Balance AC/DC Charger

IMPORTANT: Never charge batteries unattended! Constant supervision is required as batteries can be dangerous when mishandled. We recommend charging your batteries inside a protective charging bag well away from anything combustable.
