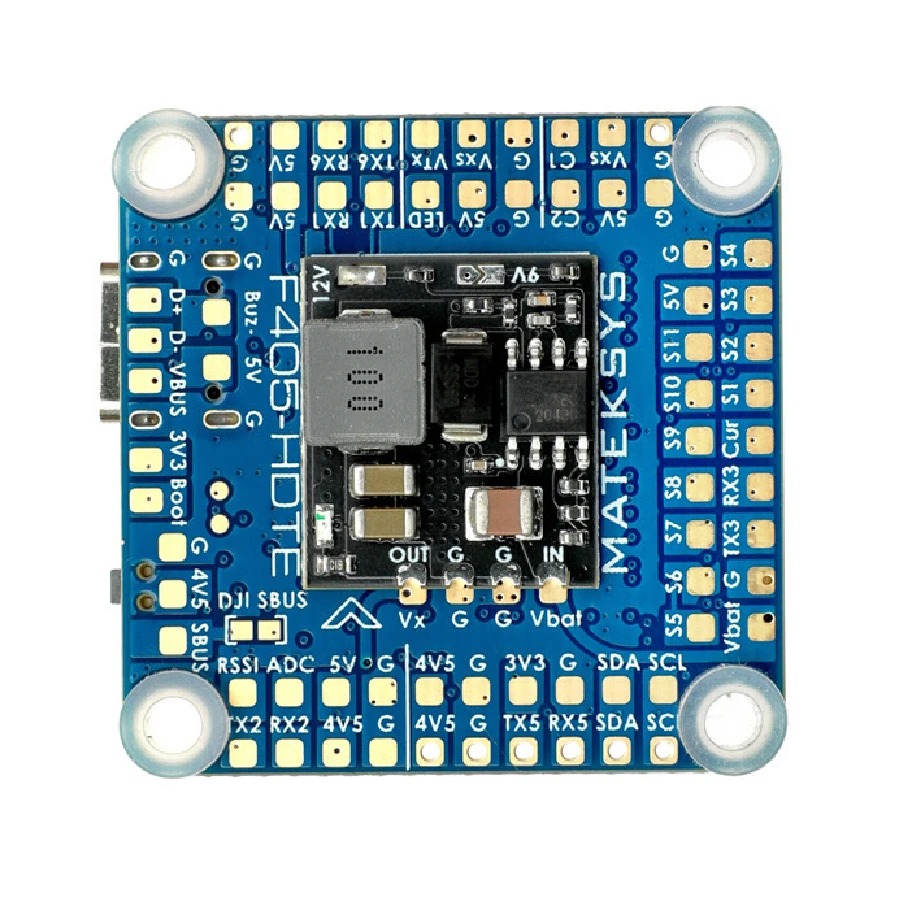

Matek F405-HDTE Flight Controller

Overview:

The Matek F405-HDTE Flight Controller can run BetaFlight, ArduPilot or Inav. It features a direct connection for DJI HD (Caddx Vista / DJI Air Unit) and a very wide input voltage range of 9-60V DC. This flight controller can be used for both quadcopters and octocopters as it features two 4in1 ESC 8 pin connectors for ESC signals 1-8.

Features:

– STM32F405 has 1MB flash which can run ArduPilot/INAV/BetaFlight
– InvenSense the 3rd generation IMU ICM42688-P
– 9-60V(3~12S LiPo) wide input voltage and voltage sense. and a 9~16V BEC for DJI OSD or analog VTX.
– 8 motors + 3servos in INAV/BF multirotor mixer.
– 2x SH1.0_8pin connector for PnP with 2x 4in1 ESC
– 1x SH1.0_6pin connector for PnP with HD System(Caddx Vista & Air Unit)
– USB pin breakout for connecting to external USB adapter.

Specifications:
– MCU: STM32F405RGT6
– IMU: ICM42688-P
– OSD: AT7456E, DJI OSD
– Baro: SPL06-001 (I2C)
– Blackbox: 16M-byte Flash memory
– 6x UARTs,  1x Softserial_Tx option
– 12x PWM outputs (8x Dshot)
– 1x I2C
– 4x ADC (VBAT, Current, RSSI, Airspeed)
– 2x PINIO
– 2x SH1.0_8pin connector for 4in1 ESC
– 1x SH1.0_6pin connector for HD System(Caddx Vista & Air Unit)
– 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
– 9~16V(Vxs) output ON/OFF switchable
– Dual analog camera signal switchable

Power
– Input: 9~60V (3~12S LiPo)
– BEC: 5V 1.5A
– BEC: Vx,  9~16V/1~2A (3S IN/9V 2A, 4S IN/12V 2A, 6S IN/16V 2A, 8S IN/16V 1.5A, 12S IN/16V 1A)
– Battery Voltage Sensor: 1K:20K (INAV scale 2100, BF scale 210)
– No Current Sensor built-in, supports external current sensor of PDB/4in1

Firmware
– ArduPilot: MatekF405-TE
– INAV: MATEKF405TE
– BetaFlight: MATEKF405TE

Physical
– Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
– Dimensions: 36 x 36 x 5 mm
– Weight: 7g

Included:
1x FC F405-HDTE
6x Silicon grommets M4 to M3
1x SH1.0_8pin cable 5cm,  2x SH1.0_8pin connectors
1x SH1.0_6pin to GH1.25_8pin cable 8cm for HD System(Caddx Vista & Air Unit)
