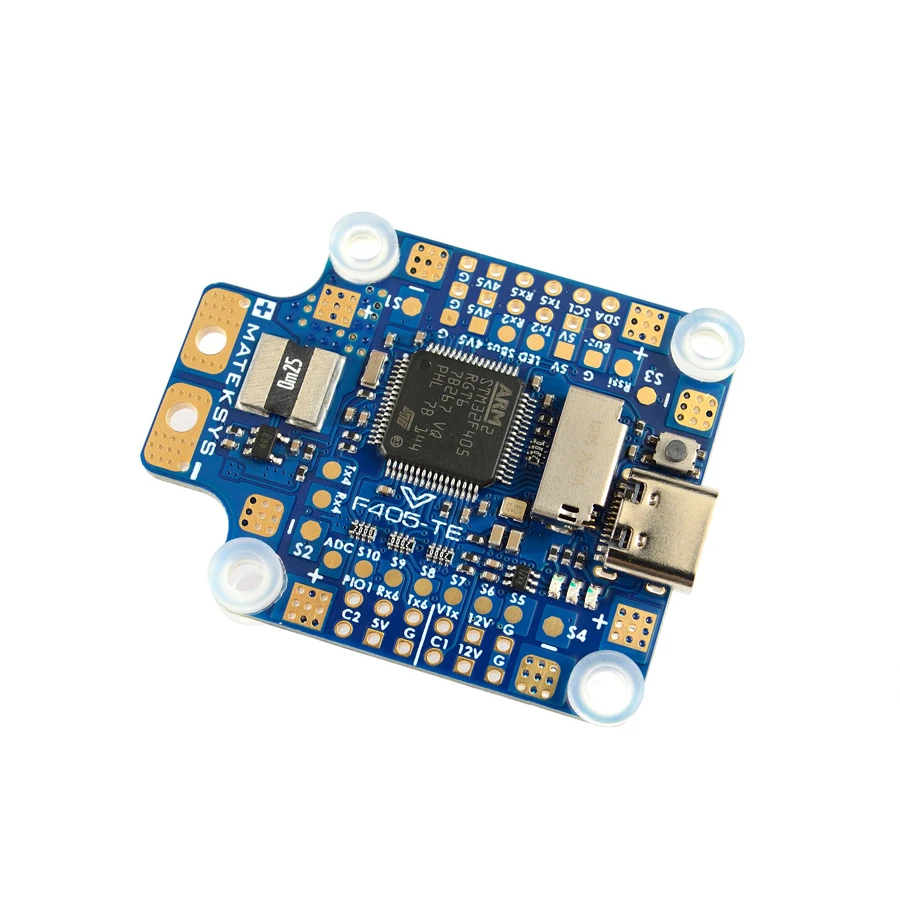

Matek F405-TE Flight Controller

Original price was: $57.55.Current price is: $40.29.

Quick responses, top-notch service.

Quality You Can Count On

Nature-friendly materials, for a better planet.

Efficiency meets excellence in customer care.

Overview:

The Matek F405-TE is compatible with Betaflight, INAV and ardupilot. The flight controller includes a PDB allowing for seperate ESCs to be soldered on each corner. The F405-TE supports 6x UARTS so is compatible with a variety of accessories like GPS, Telemetry receivers etc.

Specifications:

– MCU: 168MHz STM32F405RGT6
– IMU: ICM42688-P (SPI)
– Baro: SPL06-001 (I2C)
– OSD: AT7456E (SPI)
– Blackbox: MicroSD slot (SPI)
– 6x UARTs, 1x Softserial_Tx option(INAV/BF)
– 11x PWM outputs (8x Dshot compatible with BF/ArduPilot)
– 1x I2C
– 4x ADC (VBAT, Current, RSSI, Airspeed)
– 1x spare PINIO
– 4x individual ESC power/signal pads
– 1x Group of G/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND
– Built in inverter on UART2-RX for SBUS input
– Switchable Dual Camera Input

PDB Specifications:
– Input: 9~36V (3~8S LiPo)
– PDB: 4x 35A (Max.4x 50A)
– BEC: 5V 1.5A
– BEC: 12V 2A
– LDO 3.3V: 200mA
– Current Senor: 220A, 3.3V ADC (INAV/BF scale 150, ArduPilot 66.7 A/V)
– Battery Voltage divider 1K:20K (INAV scale 2100, BF scale 210, ArduPilot BATT_VOLT_MULT 21.0)

Included:
1x Matek F405-TE Flight controller
1x Accesories
