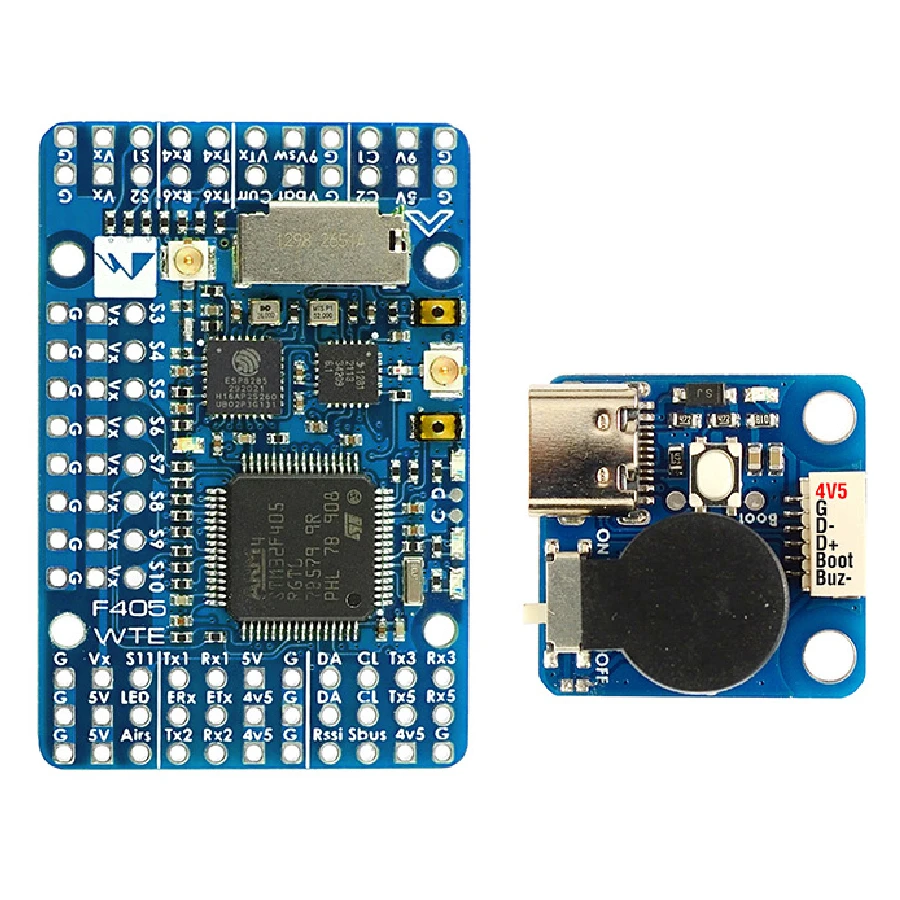

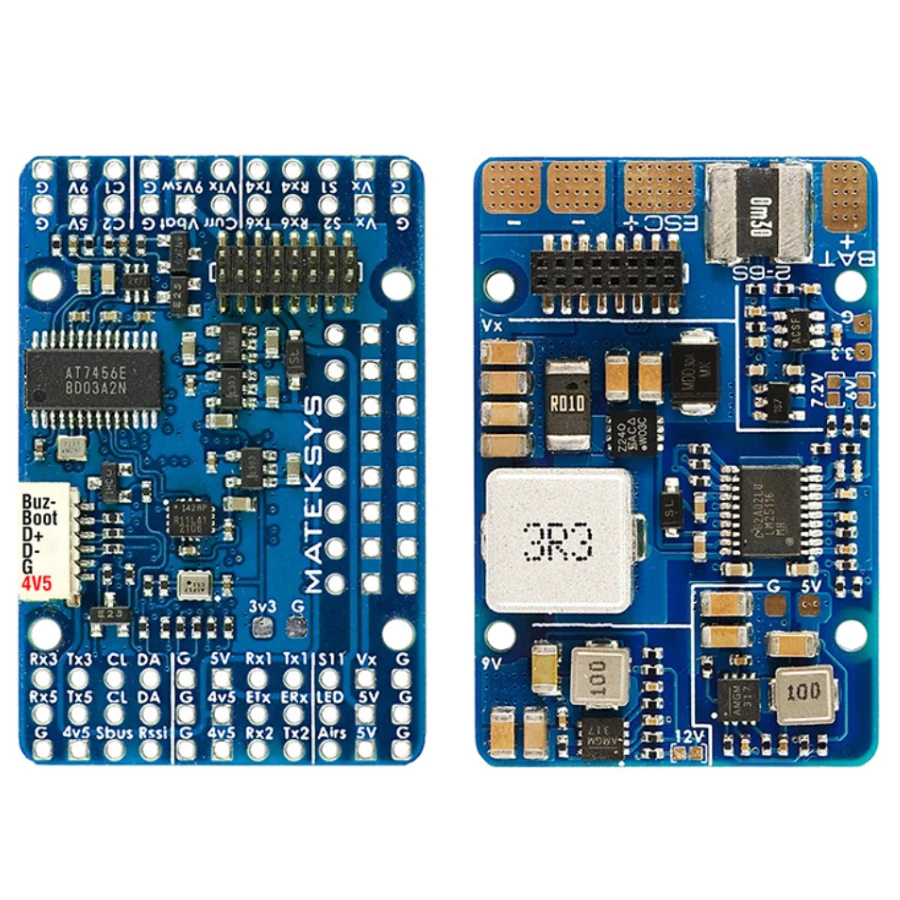

Matek F405-WTE ELRS Flight Controller

Overview:

Matek F405-WTE Flight Controller is a flight controller focused towards fixed wing with a built in ELRS receiver. The receiver can be used for ELRS or ESP Wifi Telemetry (Mavlink). It features a higher rated, higher accuracy current sensor – 220A. The FC features an upgrade barometer – SPL06-001, dual switchable camera inputs and switchable 9V(12V) outputs. The USB port has been moved onto an external breakout/buzzer board for easier access when installed inside the body of the model.

Features:

– MCU: STM32F405RGT6, 168MHz , 1MB Flash
– IMU: ICM42688-P
– Baro: SPL06-001
– OSD: AT7456E
– Blackbox: MicroSD card slot
– ESP WiFi Telemetry(MAVLink, 14dBm)
– ExpressLRS 2.4G receiver(CRSF protocol, Telemetry 12dBm)
– 6x UARTs,  1x Softserial_Tx option(INAV)
– 12x PWM outputs
– 1x I2C
– 4x ADC (VBAT, Current, RSSI, Airspeed)
– USB/Beep Extender with Type-C(USB2.0)
– Dual Camera Inputs switch
– 9V(12V) for VTX power switch

FC Firmware
– ArduPilot: MatekF405-TE
– INAV: MATEKF405TE_SD (not available in INAV configurator 4.x)

BEC 5V output
– Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed
– Continuous current: 2 Amps, Max.3A

BEC 9V /12V output
– Designed for Video Transmitter, Camera, Gimbal ect.
– Continuous current: 2 Amps, Max.3A
– 12V option with Jumper pad
– for stable 9V/12V output, input voltage should > output voltage +1V

BEC Vx output
– Designed for Servos
– Voltage adjustable, 5V Default, 6V or 7.2V via jumper
– Continuous current: 8 Amps, Max.10A
– for stable Vx output, input voltage should > Vx voltage +1V

BEC 3.3V output
– Designed for Baro / Compass module and external 3.3V peripherals
– Linear Regulator
– Continuous current: 200mA

Physical
– Mounting: 25 x 25mm, Φ2mm
– Dimensions: 44 x 29 x 12.7mm
– Weight: 22g  w/ USB/buzzer adapter

Included:
1x F405-WTE
1x USB(Type-C)/Beep (Passive buzzer) Extender + 20cm JST-SH-6P to JST-SH-6P cable for USB extender.
2x IPEX-MHF1 2.4G Antennas
1x Rubycon ZLH 35V 470uF capacitor
Dupont 2.54 pins  (Board is shipped unsoldered)
