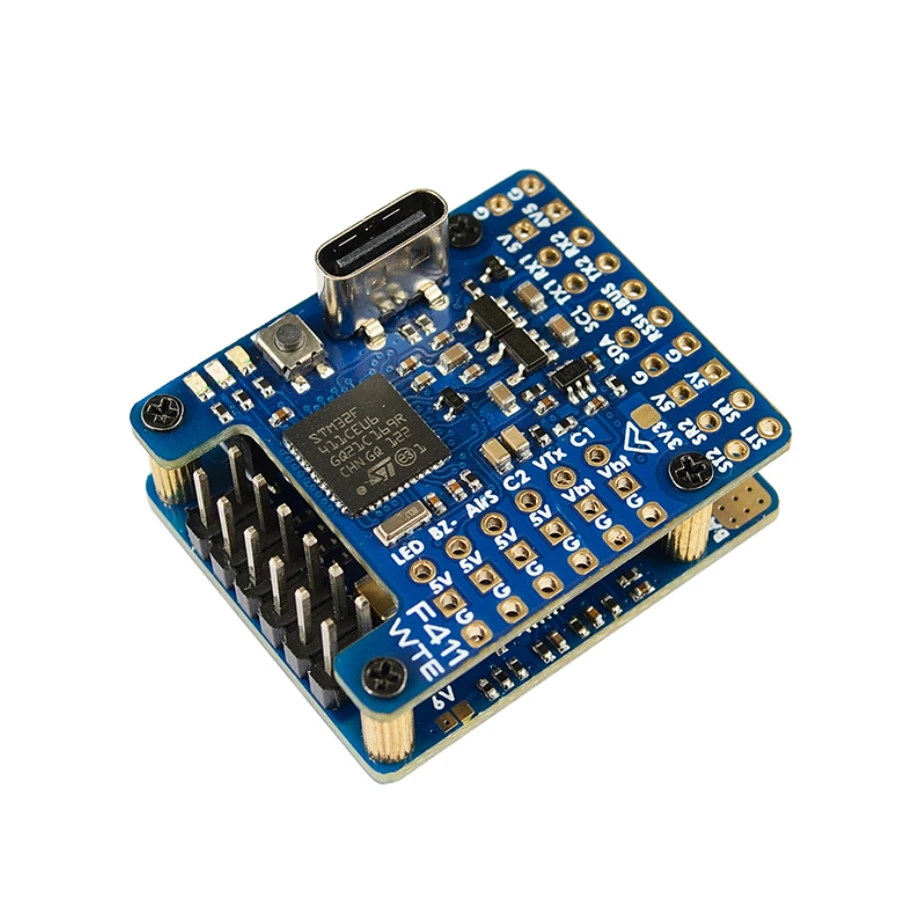

Matek F411 WTE Wing Flight Controller

Overview:

The Matek F411 WTE, is the replacement to the popular F411 WSE. The flight controller is a dedicated flight controller for fixed wing. More compact than the F411-Wing but still fully featured. The Flight Controller features multiple high output BECs, 5V/1.5A for servos and 5V/5A for accessories like GPS module, RC receiver etc. The Matek F411 WTE-Wing also has a number of built in features like 2 Uart ports, Barometer and built in OSD (On Screen Display). The Matek F411 WTE also support dual switchable camera inputs.

Features:

– MCU: 100MHz STM32F411CEU6
– IMU: BMI270 accelerometer/gyro (SPI)
– Baro: SPL06-001
– OSD: INAV OSD w/ AT7456E chip
– Blackbox: No
– 2x Uarts
– 2x Softserial
– 2x Motors, 4x Servos outputs
– 1x I2C
– 4x ADC (VBAT, Current, RSSI, Air Speed)
– 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
– Switchable dual camera inputs
– Vbat power ON/OFF switchable for VTX and camera
– PPM receiver: not supported

FC Firmware
– INAV Flight
– Target: MATEKF411TE

Power:
– 6~30V DC IN (2~6S LiPo)
– 132A Current Sense (Scale 250)
– PDB/Current sense resistor: 90A continuous, 132A burst.
– BEC 5V 1.5A for FC & Peripherals
– BEC Vx 5A for servos, 5V/ 6V option
– Vbat for VTX and camera (ON/OFF switchable)
– LDO 3.3V 200mA
– Battery Voltage Sensor: 1k:10k

Physical
– Mounting: 22 x 24mm, Φ2mm

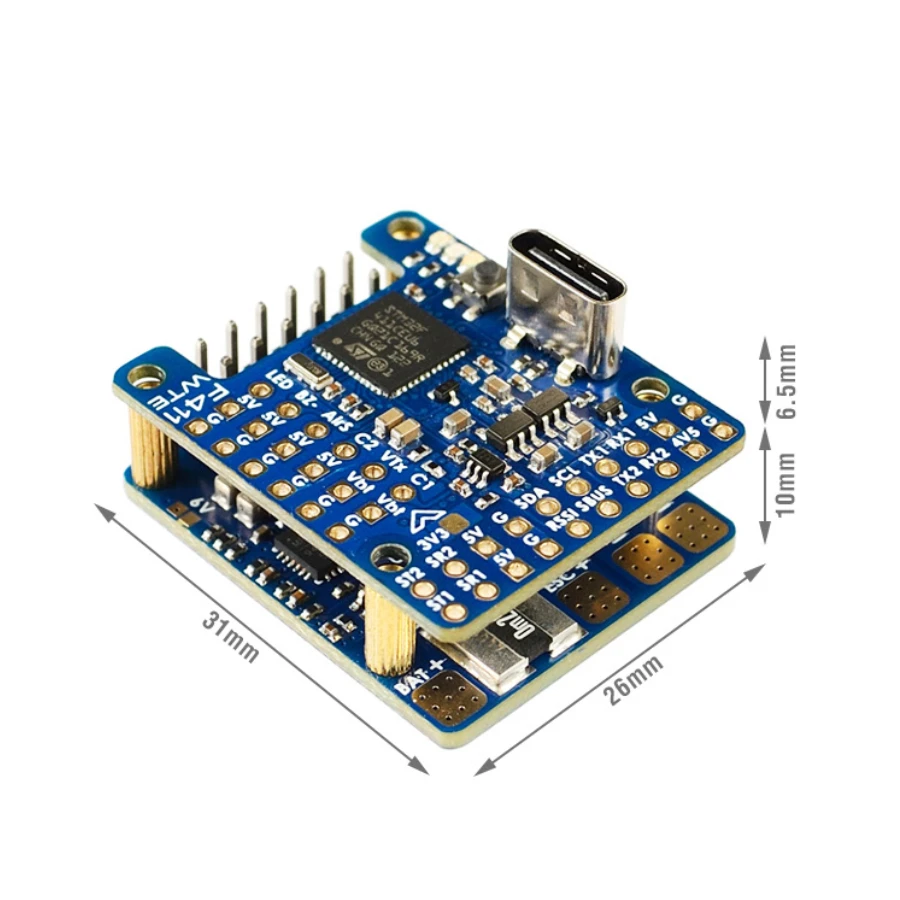

– Dimensions: 31 x 26 x 16.5 mm
– Weight: 10g

Included:
1x Matek F411 WTE Wing Flight Controller
