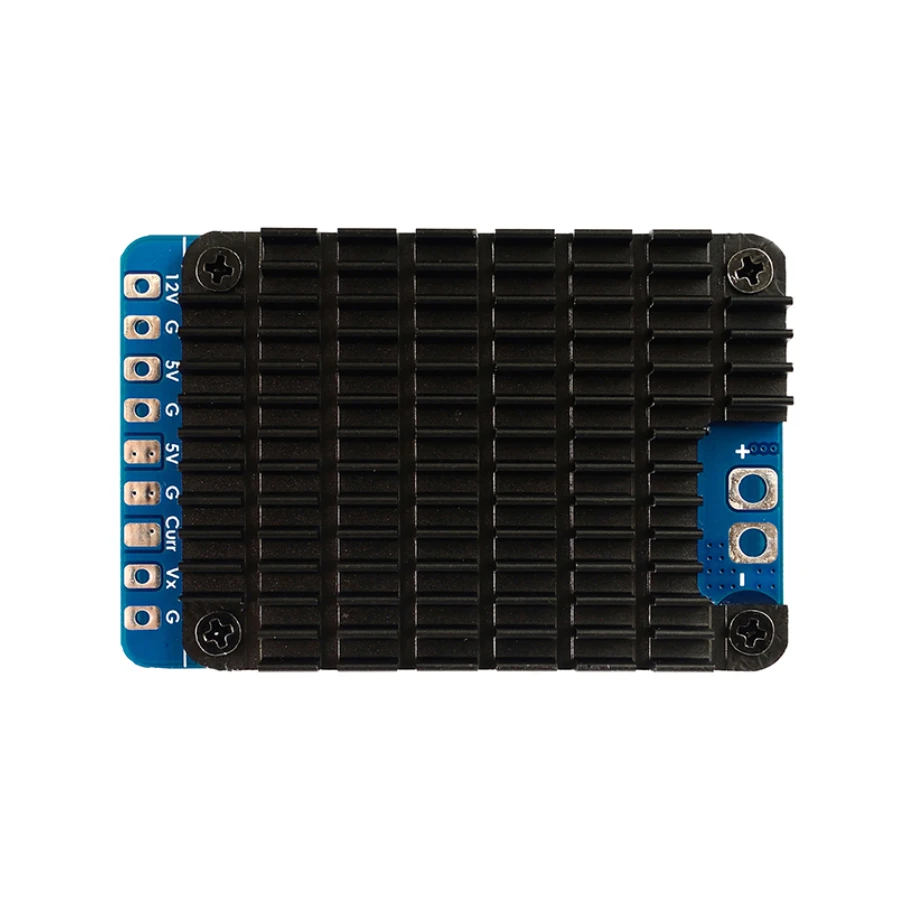

Matek Power Module PM12S-3

Overview:

The Matek PM12S-3 power module is very high performance, large, multiple output power regulation board. It features a very wide input Voltage range of 9-55V (3-12S) and has multiple high capacity outputs 5V/4A, 12V/4A and an adjustable output with 15A continous current. Space is left on the board for a XT30 connector to be soldered on or you can just solder battery wires straight onto the pads.

Specifications:

– Wide 9V to 55V Operating Input Range with TVS protection
– 3x independent Step-Down Voltage Regulators
– BEC Vx,  5.2V / 6V / 8V output options.  supports typical continuous output current of up to 15A, Peak current of up to 25A.
– BEC 5V (Fixed), 4A continuous
– BEC 12V (Fixed), 4A continuous
– 1K:20K voltage divider built-in (Volt = 1/21 Input voltage)
– Current sensor signal passthrough pad
– Size & Weight: 61x40x15mm, 53g

BEC Vx
– Output voltage 5.25V / 6V / 8V options.
– Output voltage tolerance 1.5%
– Synchronous switching step-down (or buck) regulator with typical efficiencies of 90% to 96%
– Supports typical continuous output current of up to 15A,  Peak current of up to 25A.
– Output ripple  32mV (VIN=50V,  Output 5.25V @ 15A),  43mV (VIN=50V,  Output @ 5A)
– Standby current: 10~20mA
– Reverse Input voltage protection: No
– Thermal Shutdown
– Output Short-circuit tolerant (2 seconds)
– Overcurrent protection & self-recovery
– Tip: Input voltage >= 15V is required for continuous output current of 15A

BEC 5V
– Output voltage 5.2V, tolerance 1.5%
– Supports continuous output current of up to 4A,  Peak current of 6A
– Output ripple  20mV (VIN=24V,  Output @ 5A),  50mV (VIN=50V,  Output @ 5A)
– Reverse Input voltage protection: No
– Thermal Shutdown
– Output Short-circuit tolerant (2 seconds)
– Overcurrent protection & self-recovery

BEC 12V
– Output voltage 12V, tolerance 1.5%
– Supports continuous output current of up to 4A,  Peak current of 6A
– Output ripple  18mV (VIN=24V,  Output @ 5A),  32mV (VIN=50V,  Output @ 5A)
– Reverse Input voltage protection: No
– Thermal Shutdown
– Output Short-circuit tolerant (2 seconds)
– Overcurrent protection & self-recovery
– Tip: Input voltage >= 13V is required for stable 12V output

Included:
1x Matek PM12S-3 Power Module
1x Accesories
