NewBeeDrone CinemAh Frame

Original price was: $77.30.Current price is: $54.11.

Quick responses, top-notch service.

Quality You Can Count On

Nature-friendly materials, for a better planet.

Efficiency meets excellence in customer care.

The NewBeeDrone CinemAh frame hopes to address an issue with existing ducted cinewhoop frames that have historically been needlessly heavy. Additionally, existing light cinewhoop frames don’t have guarded props for flying around softer targets. Heavy frames leave you with very little room for adaptability to use the frame for your shoots whether it be increased payload capacity or the option for larger batteries. We at NewBeeDrone worked to change that.

The CinemAh Frame – The Most Versatile Cinewhoop Frame

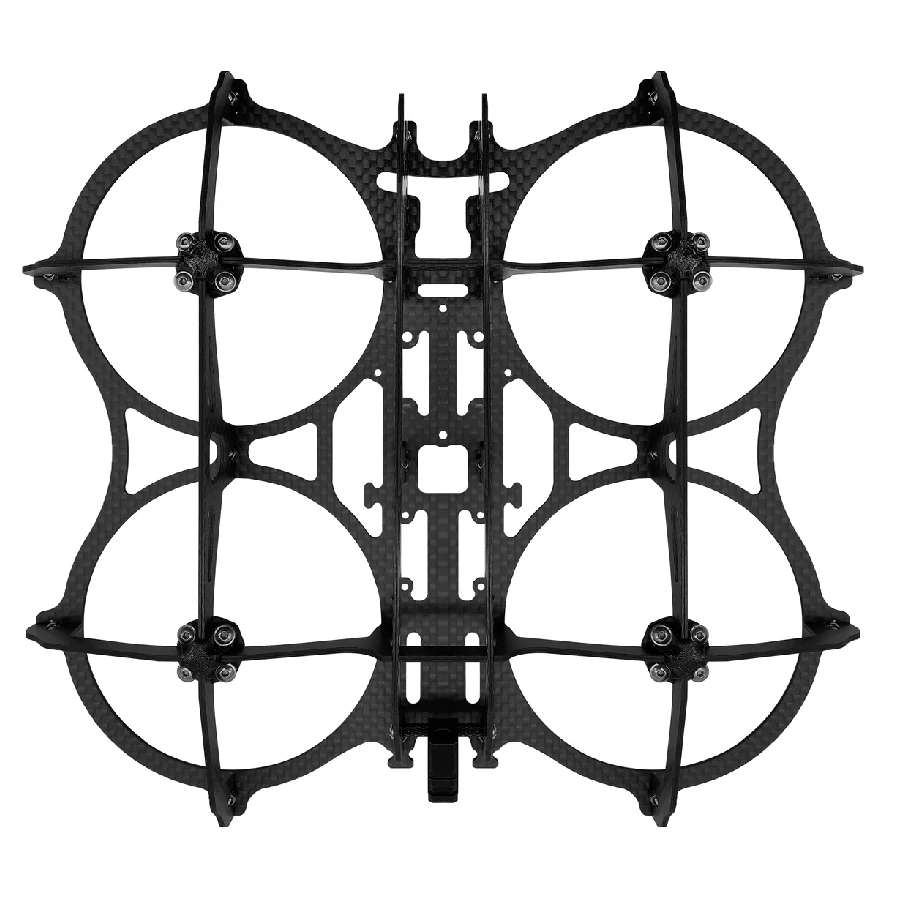

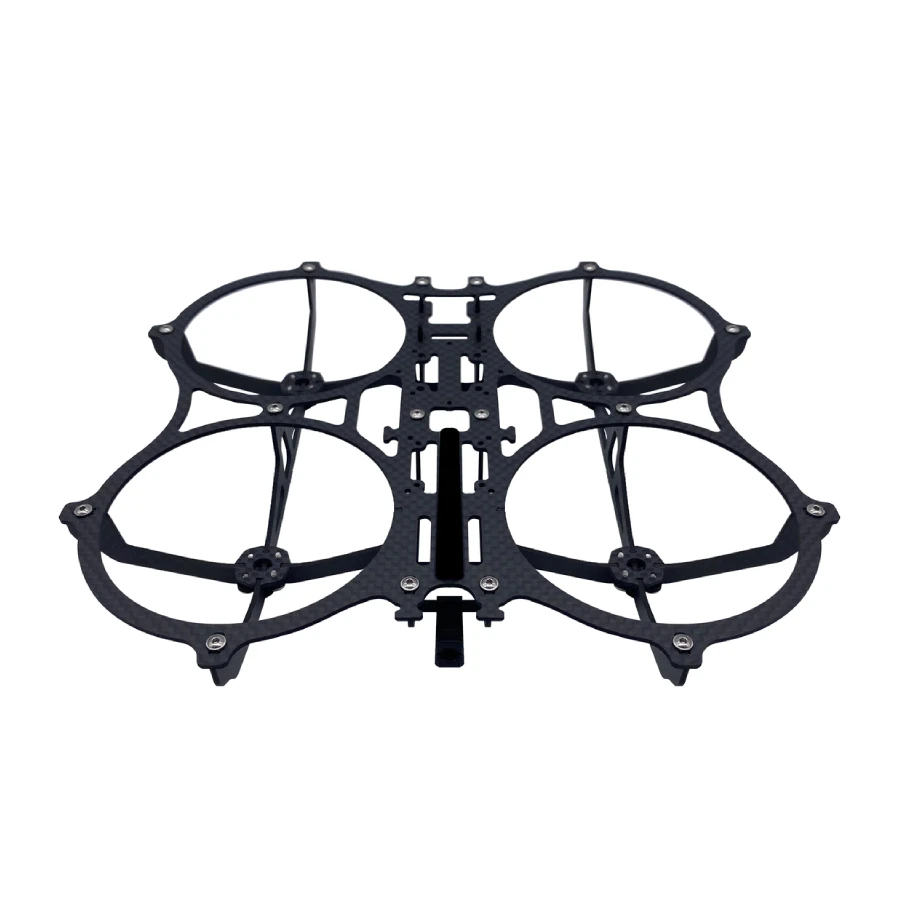

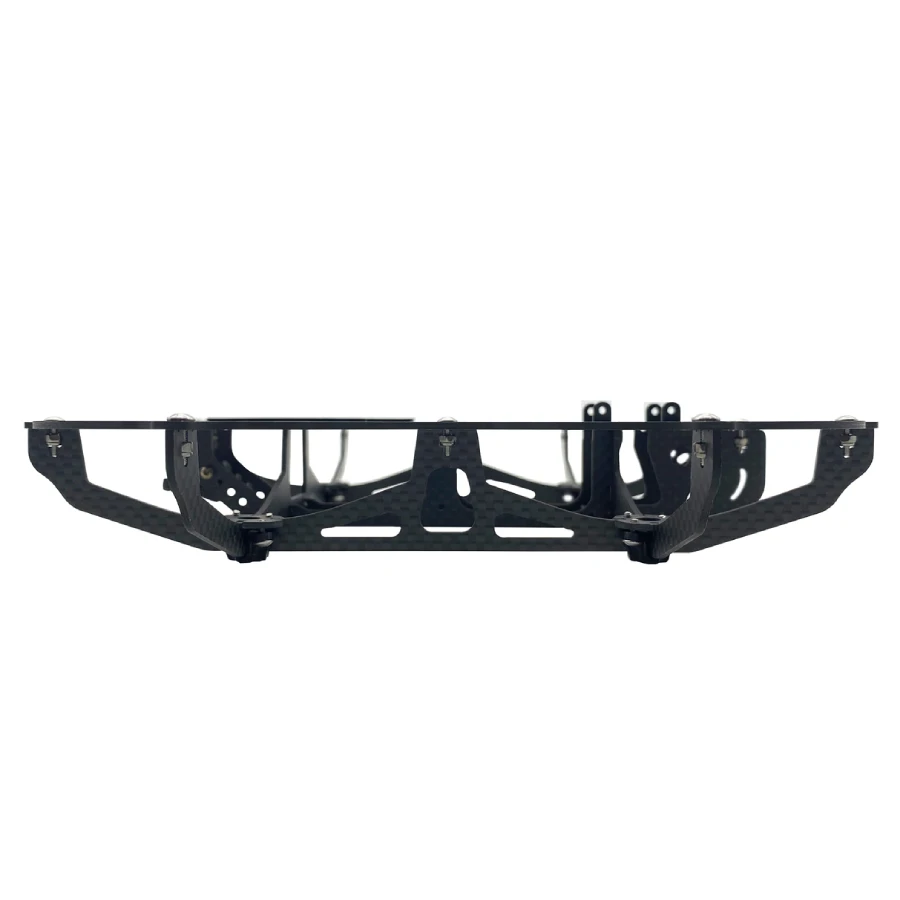

The CinemAh frame is NewBeeDrone’s response to the need for a lighter and more versatile cinewhoop frame to carry a full GoPro. The CinemAh has a unique all-carbon fiber frame structure that allows for easy access to electronics while providing maximum structural strength.

Specifications

– 2 sets of 1×1 inch mounting locations
– Front 20×20 location has M3 mounting for a flight controller and ESC stack.
– Rear 20×20 location has M2 mounting for Caddx Vista – with rear antenna mount.
– Camera mounting – single and double screw camera mounting options.
– Note: The frame does not fit an air unit.
– Motor Mounting: 12mm diameter, 4-hole pattern Suggested Motors: 14xx – 20xx
– Propeller size: 3inch or 76mm propeller
– Weight: 78g with Adjustable GoPro Hero8 mount and motor screws / 68g without GoPro Hero 8 mount

Includes
1x NewBeeDrone CinemAh Frame
