Radiomaster Ranger 2.4GHz ELRS Module

Overview:
The RadioMaster Ranger is the pinnacle of ExpressLRS module design. Built not only to look great but to last with its rugged CNC machined aluminum case that aids the high-efficiency cooling system as a heat sink. The Ranger is up to any task and provides all the power and functionality you need.

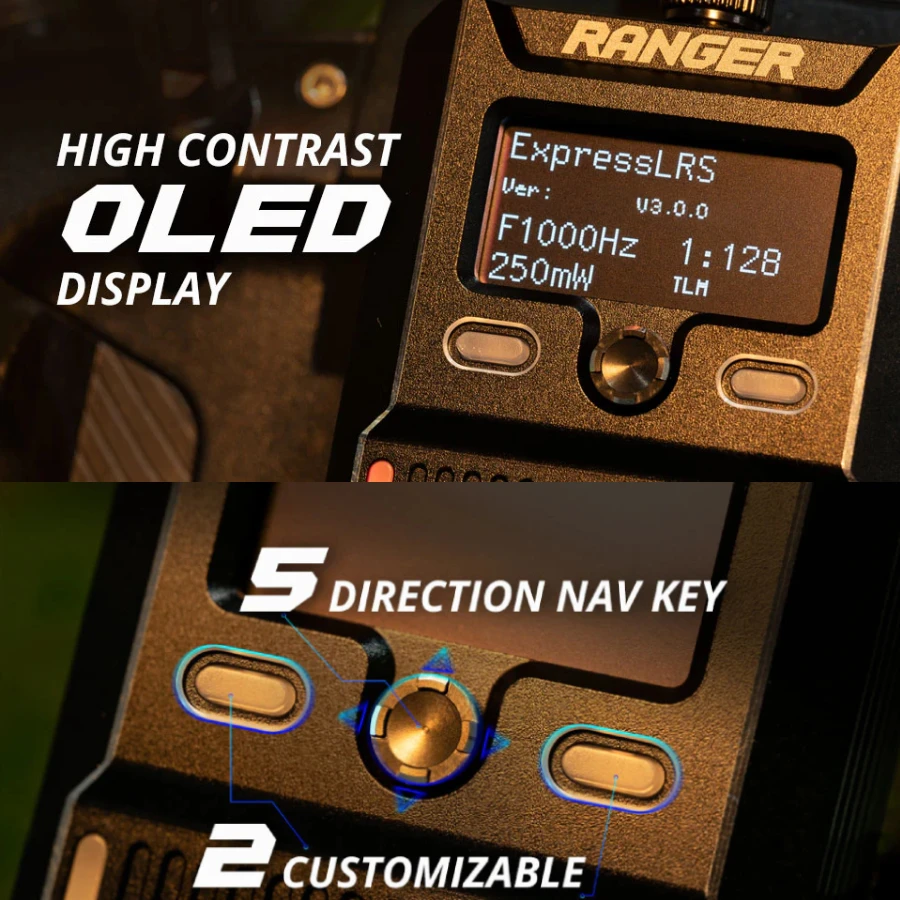

Featuring an OLED display, a directional menu key, and two assignable shortcut keys the Ranger can be adjusted on the fly and personalized to your needs.

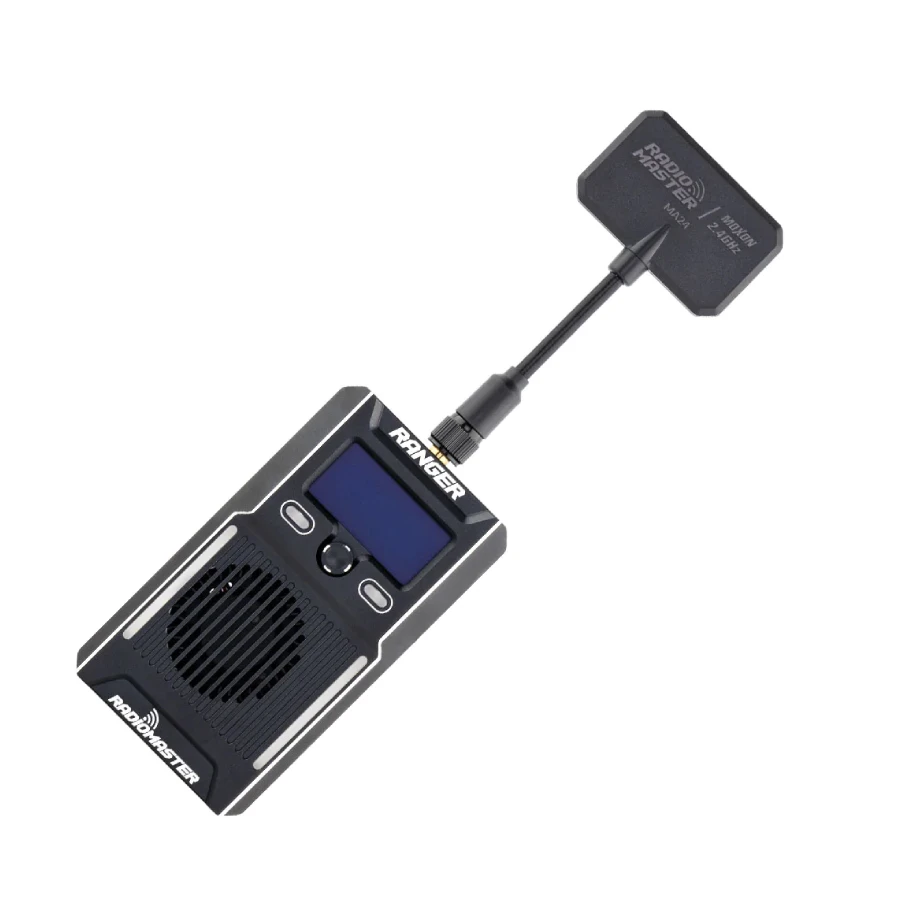

The Ranger includes a T Antenna for general use and a RadioMaster Moxon antenna for long-range directional applications. A micro module and nano module adapter are included to ensure the Ranger is compatible with most radios on the market today. A cable has also been included for use with Futaba radios that are CRSF capable.

Features:
– OLED Display
– Rugged CNC Case
– Built-in Accelerometer
– Packet rates up to F-1000Hz
– Up to 1 Watt Power output
– Wifi and Bluetooth support
– High-efficiency cooling system

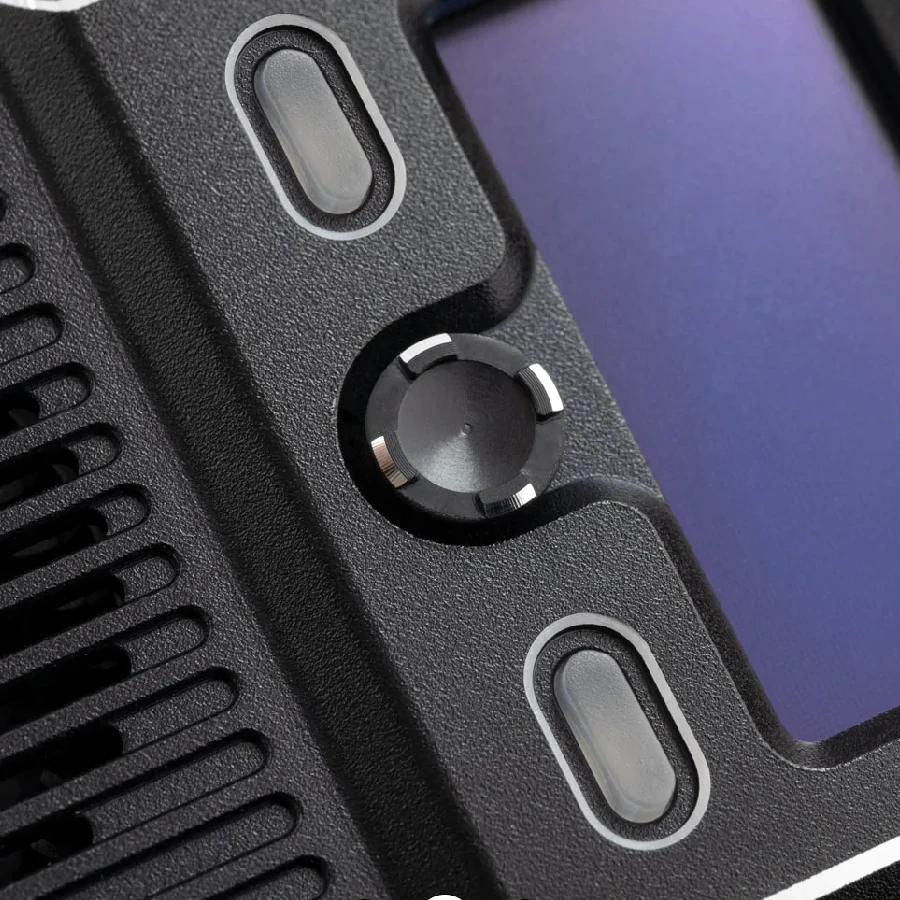

– 5 Direction Nav key and customizable shortcut buttons
– Micro and Nano adapters included
– Moxon and T-antenna included
– CRSF cable for compatible Futaba radios included

Specifications:

– Item: Ranger 2.4GHz ELRS Module
– Regulatory Domain: ISM2400
– MCU: ESP32(main), ESP8285(aux, as ESP backpack)
– RF chip: SX1281IMLTRT
– Frequency Range: 2400 MHz – 2480 MHz
– Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
– Minimum receiver refresh rate: 25Hz
– RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
– Module bay adapters: JR standard 5pin socket & Nano standard 8pin socket
– Futaba CRSF socket cable: Included
– OLED screen:  64x128px
– Wifi Support: Yes
– Bluetooth support: Yes
– 3-Axis Accelerometer: Yes (STK8BA58 MEMS Accelerometer)
– Built-in RGB light strip

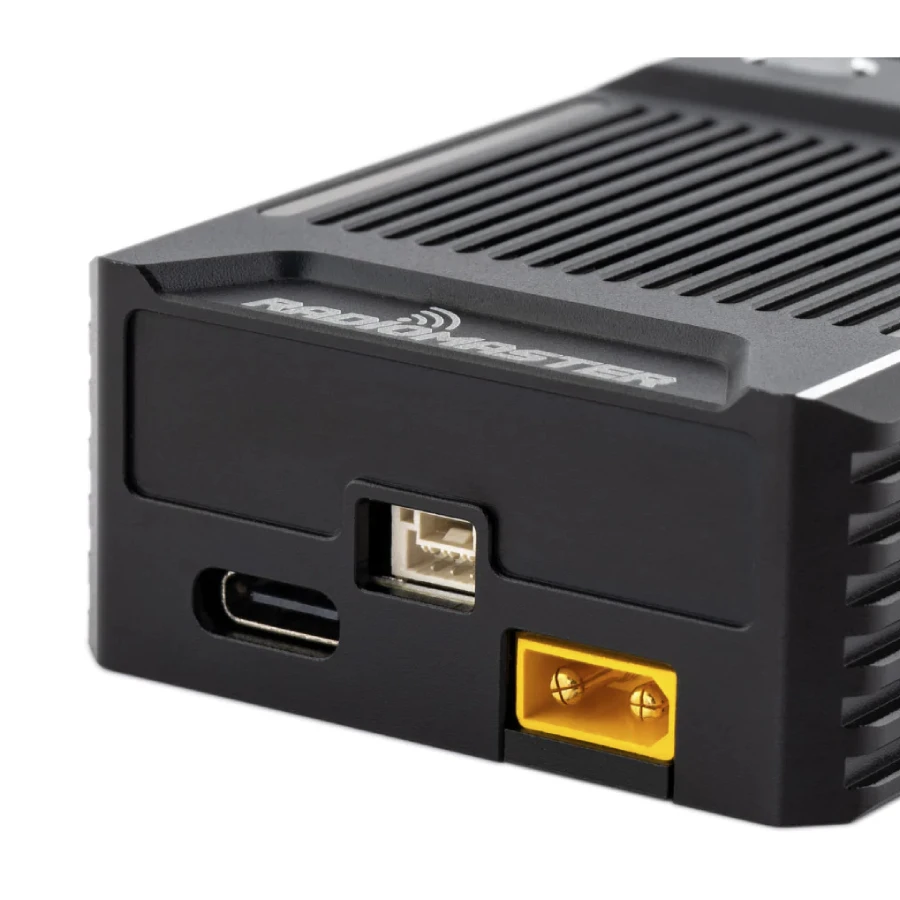

– XT30 Power supply voltage: DC 6V – 16.8V
– Weight: 138g (with Moxon antenna) / 135g (with T antenna) / 126g (without antenna)
– Dimension: 95*51*25mm (without antenna)

** HOBBYRC is the Radiomaster UK repair agent. Be assured these are genuine parts backed by genuine spares should something go wrong **

Included:

– Radiomaster Ranger 2.4GHz ELRS Module
– Accessories (Antenna + Module adapters)
