Radiomaster Ranger Nano 2.4GHz ELRS Module – Starter Combo

Overview:
The Radiomaster Ranger Nano 2.4GHz ELRS module starter combo includes the module and three receivers – two RP1 and one RP2.

The RadioMaster Ranger Nano 2.4GHz ELRS Module features upto 1W output, F-1000Hz refresh rates and a high-efficiency cooling system, the Ranger Nano 2.4GHz ELRS Module represents the cutting edge in ELRS technology. Attach the module to a compatible radio (Zorro and more) to enjoy all that ELRS has to offer.

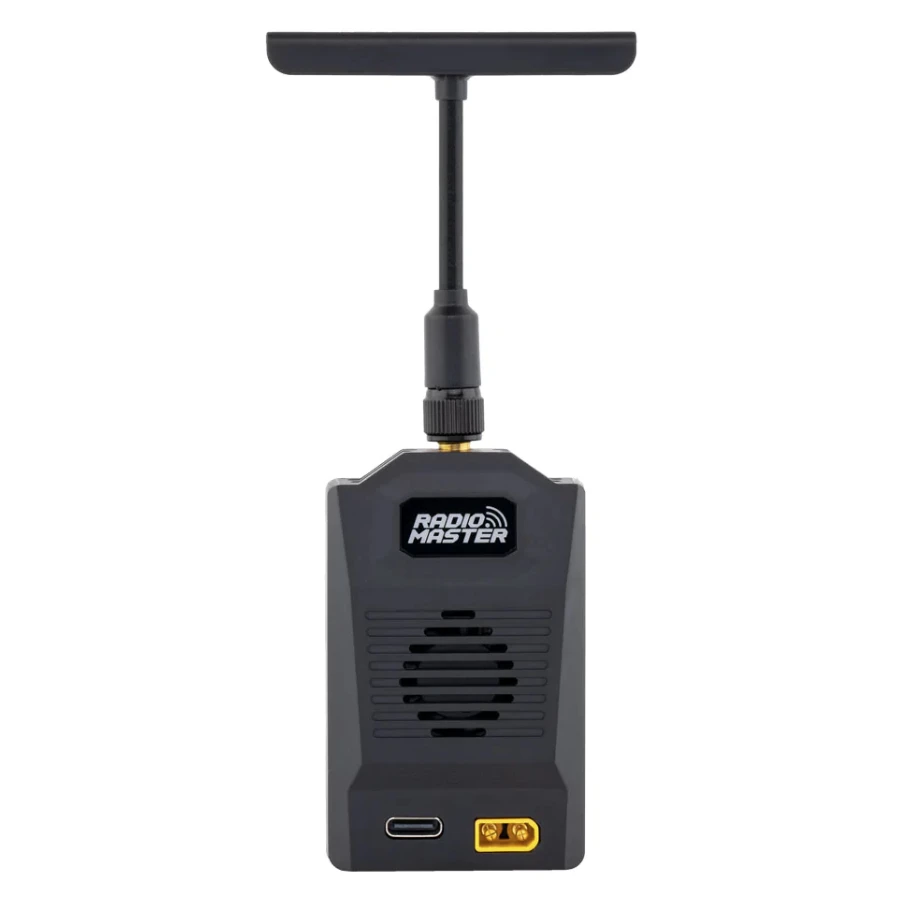

The included T-shape antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications.

** This version is the “Lite” bay version. Please check your radio as most people probably want the Micro version.**

Features:
– High-efficiency cooling system
– Up to 1 Watt Power output
– Wifi and Bluetooth support
– Packet rates up to F-1000Hz
– T-antenna included
– With the Nano connector, support Zorro radio

Specifications:

– Item: Ranger Nano Module
– Regulatory Domain: ISM2400
– MCU: ESP32(main), ESP8285(aux,as ESP backpack)
– RF chip: SX1281IMLTRT
– Frequency Range: 2400 MHz – 2480 MHz
– Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
– Minimum receiver refresh rate: 25Hz
– RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
– Wifi Support: Yes
– Bluetooth support: Yes

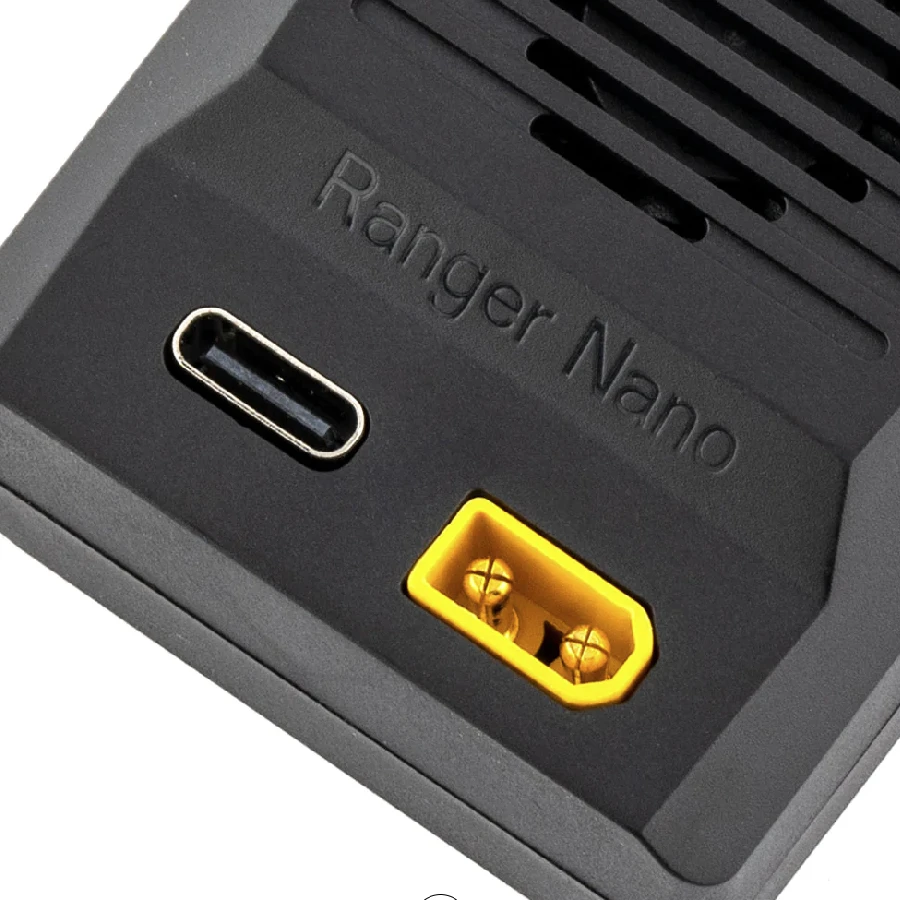

– XT30 Power supply voltage: DC 6V – 16.8V
– Weight:  48g (with antenna) / 39g (without antenna)
– Dimension: 136*42*26mm (with T antenna) / 74*49*26mm (without antenna)

** HOBBYRC is the Radiomaster UK repair agent. Be assured these are genuine parts backed by genuine spares should something go wrong **

Included:

– Radiomaster Ranger 2.4GHz ELRS Nano Module
– 2x RP1 Receivers
– 1x RP2 Receiver
– Accessories (T Antenna)
