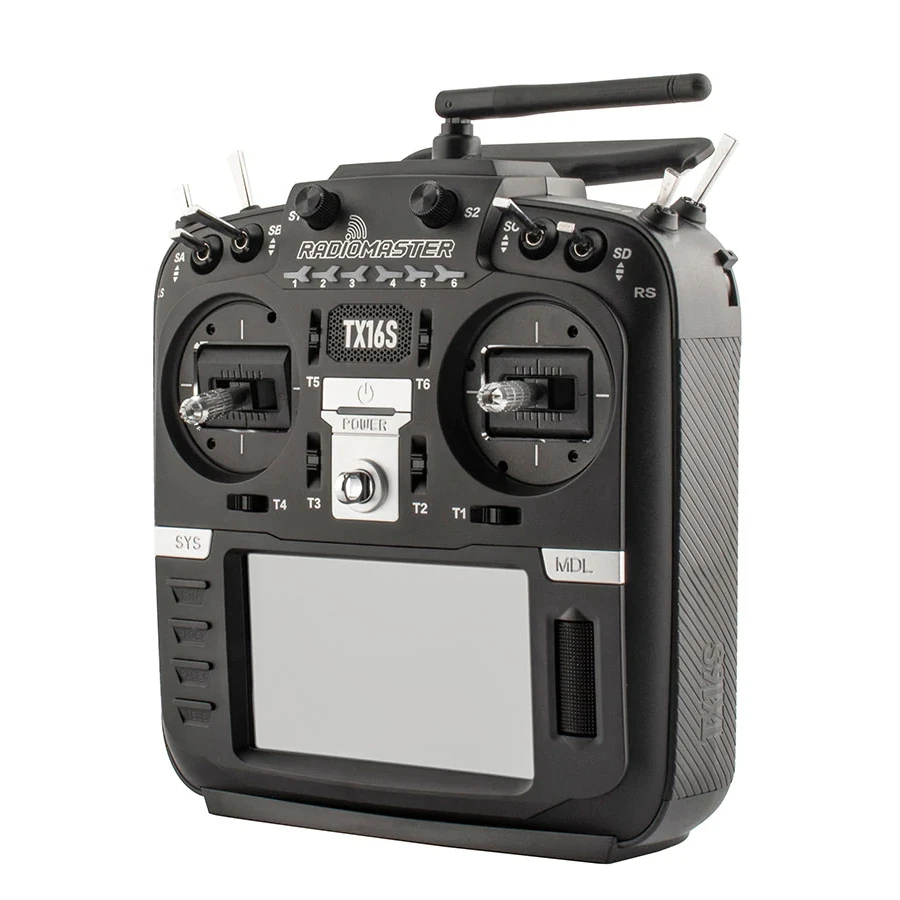

Radiomaster TX16S MKII Hall Gimbal Transmitter (ELRS)

Overview:
The Radiomaster TX16S MKII is the second version of the TX16S. It was created to address the need for a high-performance open source transmitter. The Radiomaster features ultra-smooth precision hall sensor gimbals with Aluminium facia and a large 4.3” display. The TX16S has a built in ELRS module and a JR expansion module bay supporting TBS Crossfire modules amongst others. The Radiomaster runs on the Open Source EdgeTX software. This version is the standard Hall Gimbal with ELRS radio module. Check you are ordering the right one, ELRS or 4in1.

** HOBBYRC is the Radiomaster UK repair agent. Be assured these are genuine radios backed by genuine spares should something go wrong **

** Requires 2x 18650 cells OR LiPo battery to function (see related items) **

MK II Improvements:
– Improved internal circuity and optimized power supply.
– New charge circuitry with integrated reverse-polarity protection.
– Optimized charge IC now allows up to 2.2A internal USB-C charge current.
– Rear mounted audio jack provided headphone output.
– V4.0 Gimbal improved centering and temperature stability (Same circuitry as AG01).
– Optional high/low rear grips included for improved ergonomics.
– Improved S1/S2 knobs with clear centre-detents.
– Improved LS/RS Sliders with smoother feel and better centre-detents.
– Redesigned battery cover for improved battery access.
– Retooled body shell with improved fit and finish.
– Trainer socket changed to standard TRS 3.5mm socket.
– Rear DIY Socket added for personalised mods.
– Improved internal plastics for better longevity.

TX16s Specifications:
– Size: 287x129x184mm
– Weight: 750g (without battery)
– Transmission frequency: 2.400GHz-2.480GHz
– Transmitter module: Internal ELRS (SX1280)
– Transmitting power: Internal ELRS : Max 250mw (transmitting power is adjustable)
– Antenna gain: 2db (transmit power adjustable)
– Working current: 400mA
– Working voltage: 6.6-8.4v DC
– Remote control distance:> 2km @ 22dbm
– Radio firmware: EdgeTX
– Module Firmware: ExpressLRS (ELRS)
– Channels: Up to 16 channels (depending on the receiver)
– Display: 4.3-inch TFT full-colour touch display with a resolution of 480 * 272

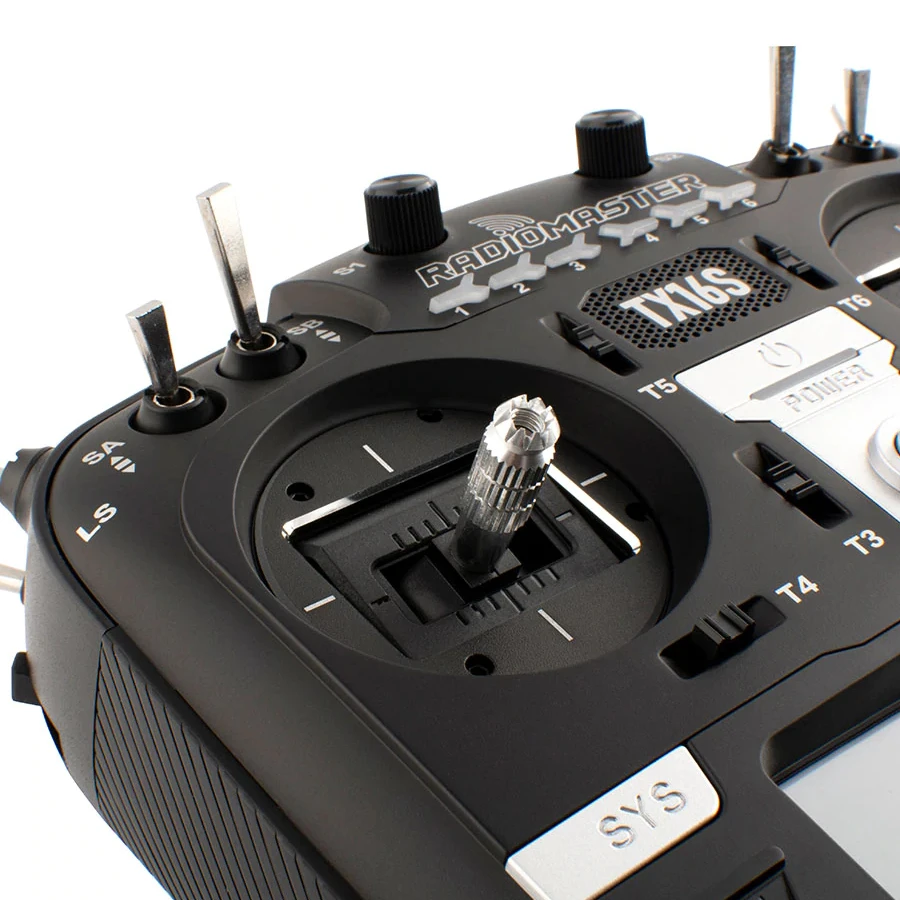

– Gimbal: V4.0 Hall sensor with Aluminium fascia
– Module Bay: JR compatible module bay
– Upgrade method: Supports USB-C online / SD card offline upgrade

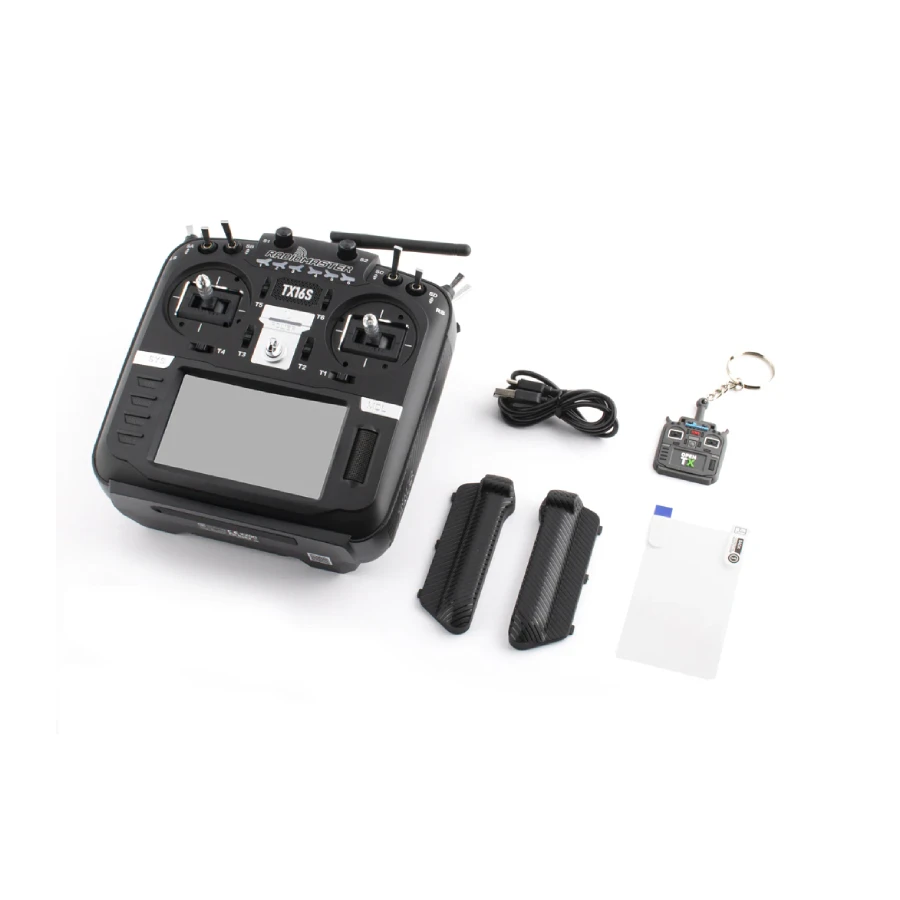

Included:

– 1x Radiomaster TX16S MKII Hall Gimbal Transmitter (ELRS) (Mode 2)

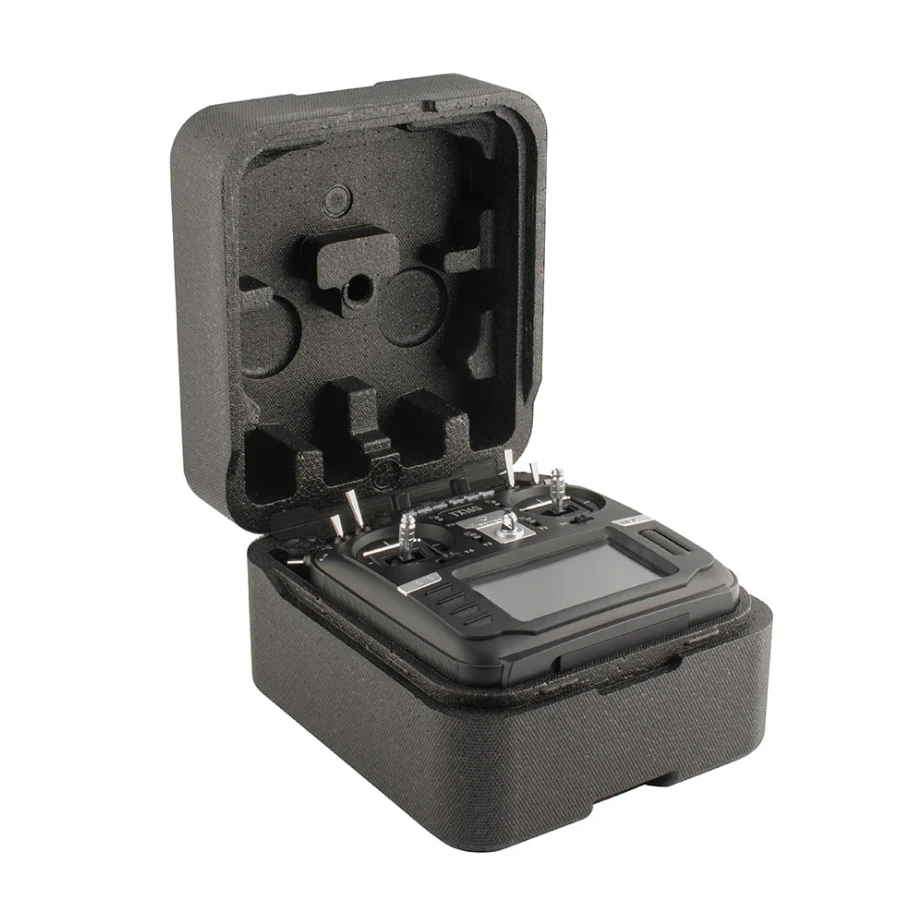

– 1x High Density Foam Case
– 1x Pair Of Flat Grips
– 1x Pair of Raised Grips
– 1x USB Cable
– 1x 18650 Tray

** Lanyard NOT included **
